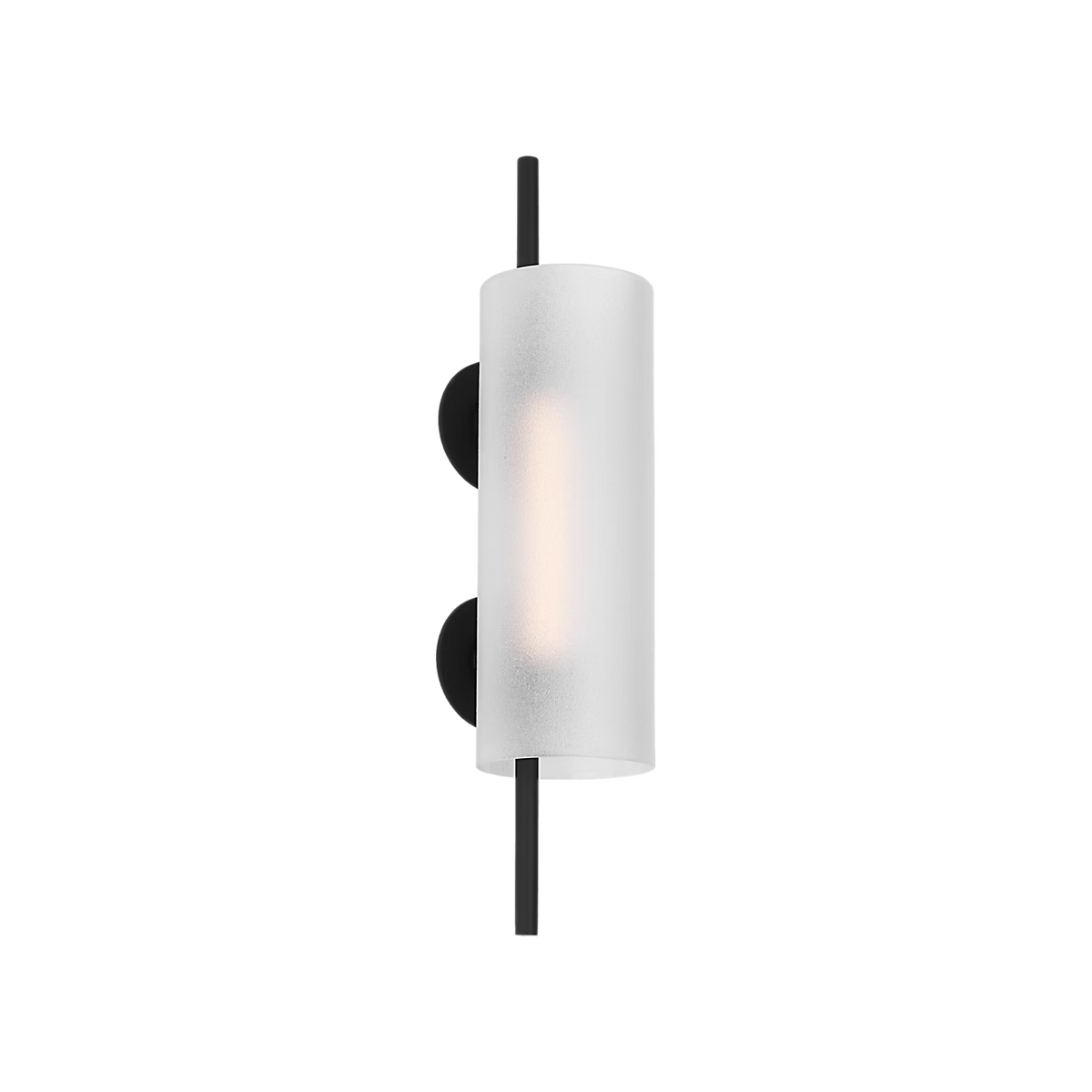

Visual Comfort Trace 18 LED Wall Sconce by Peter Bristol – 18-Inch, Dimmable, Damp Rated

Sconces do the quiet work in a house: they light hallways, frame mirrors and free up the nightstand. The Trace 18 LED Wall Sconce (18" tall × 3.9" wide) comes with mounting heights and spacing for each of those spots.

Damp rated · Outdoor under cover · Dimmable · ELV/TRIAC/0-10V · Integrated LED · 448 lm · 90 CRI · 2700K · CA Title 24

Where the Trace 18 LED Wall Sconce works in the house

Hallways and stairs. Space them evenly along the wall so the pools of light overlap, and check the projection against the clear width of the corridor.

Bedrooms. One on each side of the bed replaces table lamps, keeps the nightstand clear and puts reading light where it is needed.

Living rooms, dining rooms and baths. Flanking a mirror, a fireplace or a console, they add soft ambient light without taking floor space.

Room planner: size, height and placement

The numbers below come from the manufacturer's specifications and our own placement rules, worked out for the Trace 18 LED Wall Sconce.

• Mounting height: about 60–66" from the floor, close to eye level (our advice)
• Either side of a mirror: one on each side, centered about 60–66" high and roughly 30–40" apart
• Bedside: about 30" above the top of the mattress, just outside the headboard (our advice)
• Down a hallway: one every 8–10 ft (our rule of thumb)
• How far it sticks out: 4.6" — more than 4", so keep it out of tight walkways

Ceiling and table figures are our calculation for standard room dimensions, so measure your space. Have a licensed electrician install hardwired fixtures.

Pulling the room together

Put sconces on their own dimmer, repeat the metal in the mirror frame or cabinet hardware, and let the ceiling fixture and a table lamp supply the other two layers.

For commercial and multi-unit projects

For hotel corridors, restaurants and multifamily lobbies, we help you specify a spacing pattern, one finish and one dimming scheme across floors.

Specifications

• Installation: Mud-in (recessed into the wall for a flush, uninterrupted surface)
• Brand: Visual Comfort & Co., Modern Collection
• Designer: Peter Bristol
• Model: Trace 18 Sconce (PBWS809)
• Series: Trace
• Type: Integrated LED wall sconce, hardwired
• Finishes: Nightshade Black and Hand Rubbed Antique Brass
• Height: 18" (45.7 cm)
• Width: 3.9" (9.9 cm)
• Projection from wall: 4.6" (11.7 cm)
• Backplate: 3.1" x 3.1" Round
• Light direction: Up and down
• Weight: 6 lb
• Light source: Integrated LED (included)
• Wattage: 9.4 W
• Light output: 448 delivered lumens
• Color temperature: 2700K
• Color rendering: 90 CRI
• Voltage: 120–277V universal
• Dimming: Dimmable with most LED-compatible ELV, TRIAC or 0-10V dimmers
• Rating: Indoor damp; outdoor under cover
• Materials: etched glass
• LED life: L70 50,000 hours (Visual Comfort spec sheet)
• Warranty: 5 years (Visual Comfort)
• California Title 24: Compliant
• Item numbers (MPN): PBWS80927BEG, PBWS80927HABEG

Manufacturer downloads (Visual Comfort):

• Spec sheet (PDF)
• IES photometric file (ZIP) – for lighting designers

When another fixture is the better call

• Quick swaps on a finished wall: Trace is designed for mud-in installation, recessed into the wall surface.
• Fully exposed outdoor locations: it is rated for covered outdoor spaces, not direct rain.
• Anyone who wants 3000K or 3500K or tunable white: it comes in 2700K only.
• Anyone who needs bright task light from one fixture: plan extra lighting.
• Tight walkways: it projects 4.6" from the wall, beyond the 4-inch limit for circulation paths.

Care, cleaning and upkeep

The LED is built in, so there are no bulbs to buy or replace. Clean crystal or glass with a soft, lint-free cloth, power off and cool; avoid ammonia and abrasive cleaners (our advice). Natural and hand-rubbed brass are living finishes that patina and warm with age; Visual Comfort notes a brass cleaner can restore an uneven patina. Dust the frame with a dry microfiber cloth, power off. Installation is hardwired, so use a licensed electrician.

Questions about using it in your space

How high should I mount the Trace 18 LED Wall Sconce?

About 60–66" from the floor, close to eye level (our advice).

How do I place the Trace 18 LED Wall Sconce beside a mirror or bed?

Mirror: one on each side, centered about 60–66" high and roughly 30–40" apart. Bed: about 30" above the top of the mattress, just outside the headboard (our advice).

How far apart should I space the Trace 18 LED Wall Sconce in a hallway?

One every 8–10 ft (our rule of thumb).

How far does the Trace 18 LED Wall Sconce stick out from the wall?

4.6" — more than 4", so keep it out of tight walkways.

Can the Trace 18 LED Wall Sconce go in a bathroom or covered porch?

Its listed rating is indoor damp; outdoor under cover.

Does the Trace 18 LED Wall Sconce work with a dimmer?

Dimmable with most LED-compatible ELV, TRIAC or 0-10V dimmers.

Specifying for a project

Designers, architects, contractors and hospitality buyers can join our trade program for project pricing and help specifying quantities, finishes and color temperatures across a job.

Delivery

Versions we have available typically leave within 2–3 business days. Ground shipping is free on orders over $100 to the contiguous 48 states. All sales are final: please inspect the delivery and report any damage within 48 hours.

Please note: Because this item is made to order or specially sourced, it is final sale.
