Visual Comfort Orbel 5-Light Bath Bar by Sean Lavin – 40.9-Inch, Damp Rated, Dimmable

Vanity lighting should be even, shadow-free and matched to the mirror. The Orbel 5-Light Bath Bar (5" tall × 40.9" wide) comes with the mirror-width and mounting-height guidance you need to plan the wall.

Damp rated · Outdoor under cover · Dimmable · ELV/TRIAC · G9 bi-pin sockets

Where the Orbel 5-Light Bath Bar works in the house

Single vanities. Center the fixture over the mirror, no wider than the mirror itself, so faces are lit evenly.

Double vanities. Use one fixture above each sink, centered on the basin, or one above each mirror.

Powder rooms and guest baths. In a small room a single fixture with an even diffuser is often enough; add a dimmer for night use.

Room planner: size, height and placement

The numbers below come from the manufacturer's specifications and our own placement rules, worked out for the Orbel 5-Light Bath Bar.

• Mirror width it suits: about 55–62" (fixture about ⅔ to ¾ of the mirror width, never wider; our rule of thumb)
• Above the mirror: center about 75–80" from the floor, a few inches above the mirror (our advice)
• Double vanity: one above each sink, centered on the basin
• How far it sticks out: 6.9"
• Vertical placement: mount a pair beside the mirror, centered 60–66" high and 30–40" apart

Ceiling and table figures are our calculation for standard room dimensions, so measure your space. Have a licensed electrician install hardwired fixtures.

Pulling the room together

Match the finish to the faucet and towel bar, and keep the vanity light on a separate switch from the ceiling light so mornings and late nights have different settings.

For commercial and multi-unit projects

For hotel bathrooms, spas and multifamily units, specify one fixture and one color temperature across all rooms so finish and light match on every floor. We can total quantities by room type.

Specifications

• Brand: Visual Comfort & Co., Modern Collection
• Designer: Sean Lavin
• Model: Orbel 5-Light Bath (SLBA124)
• Series: Orbel
• Type: bath bar, hardwired

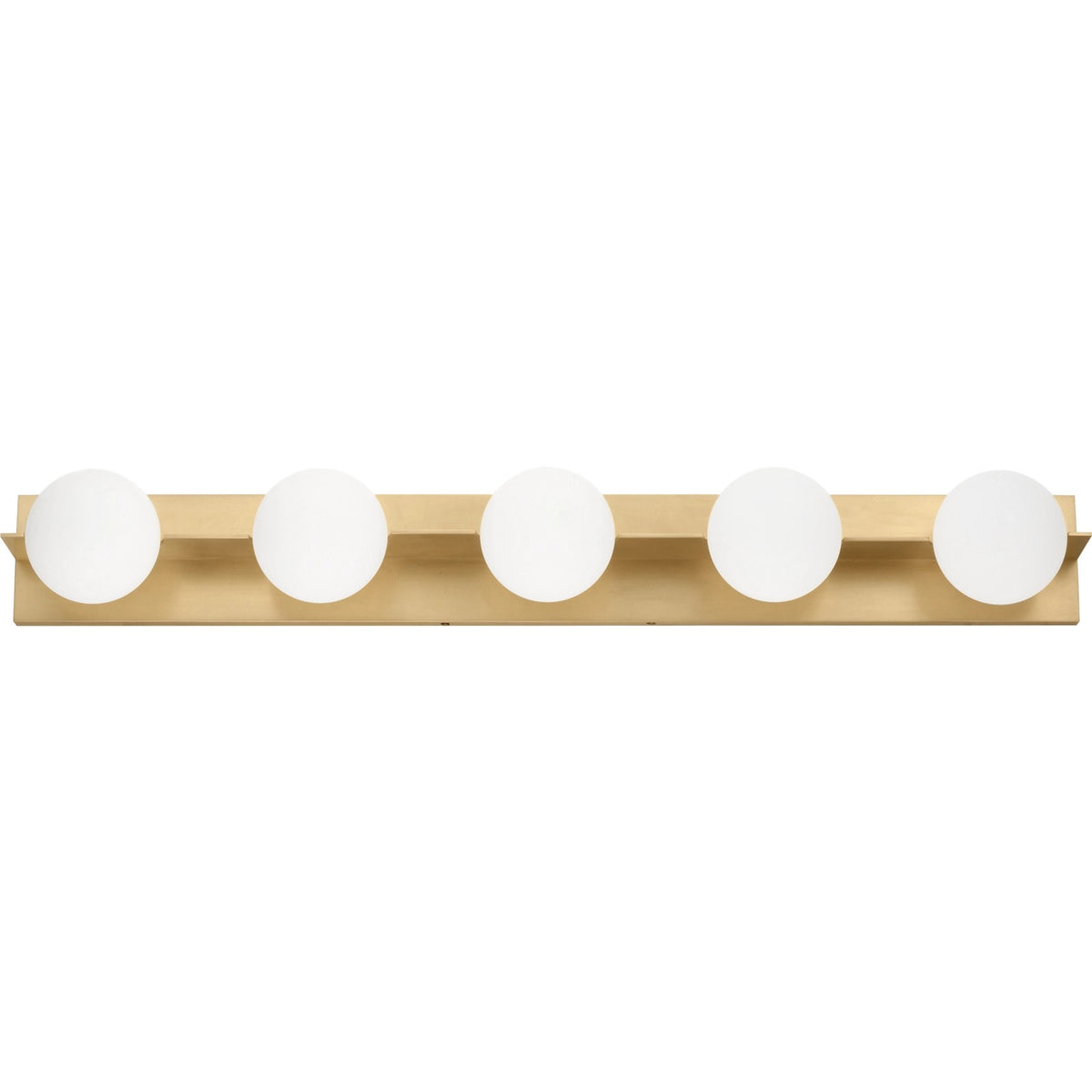

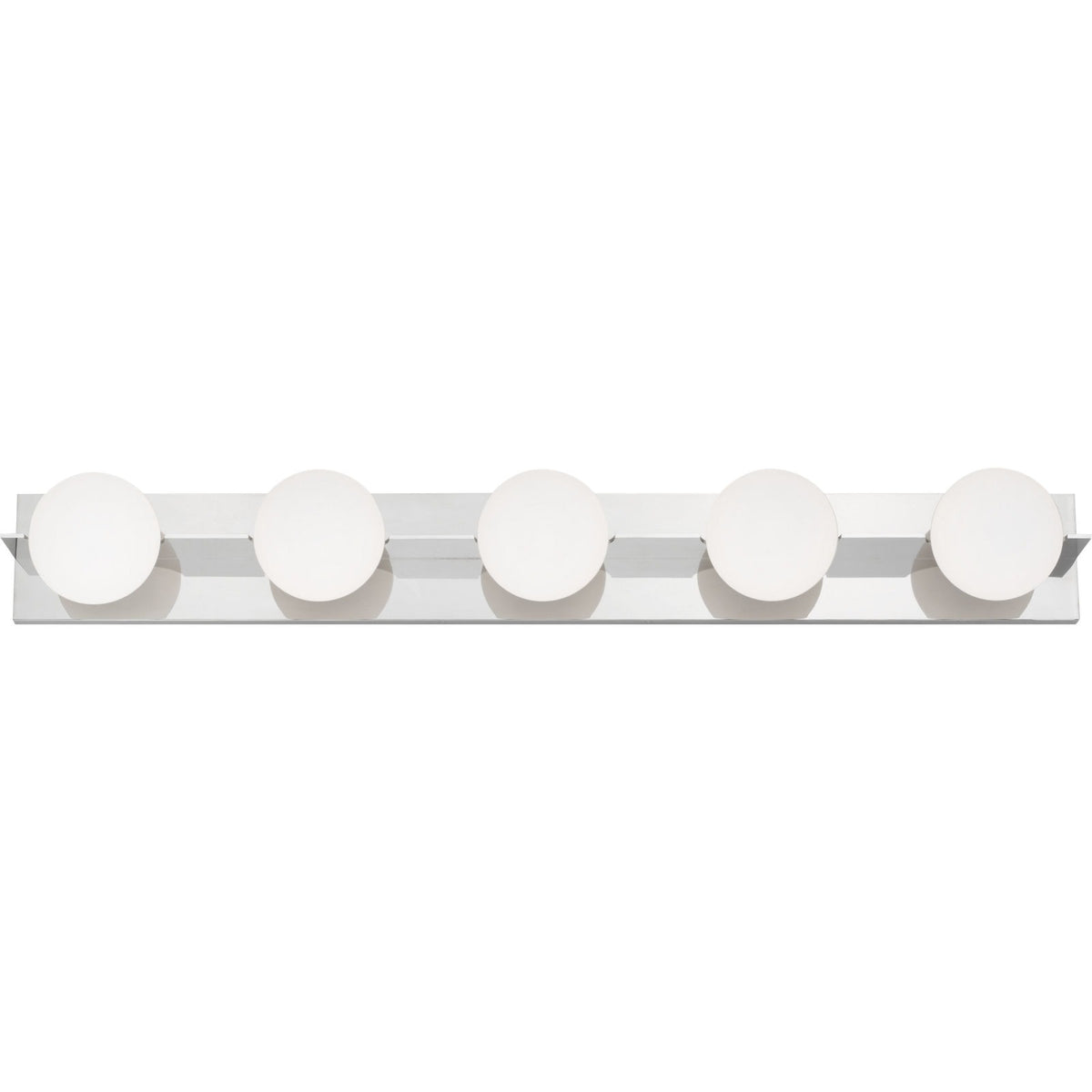

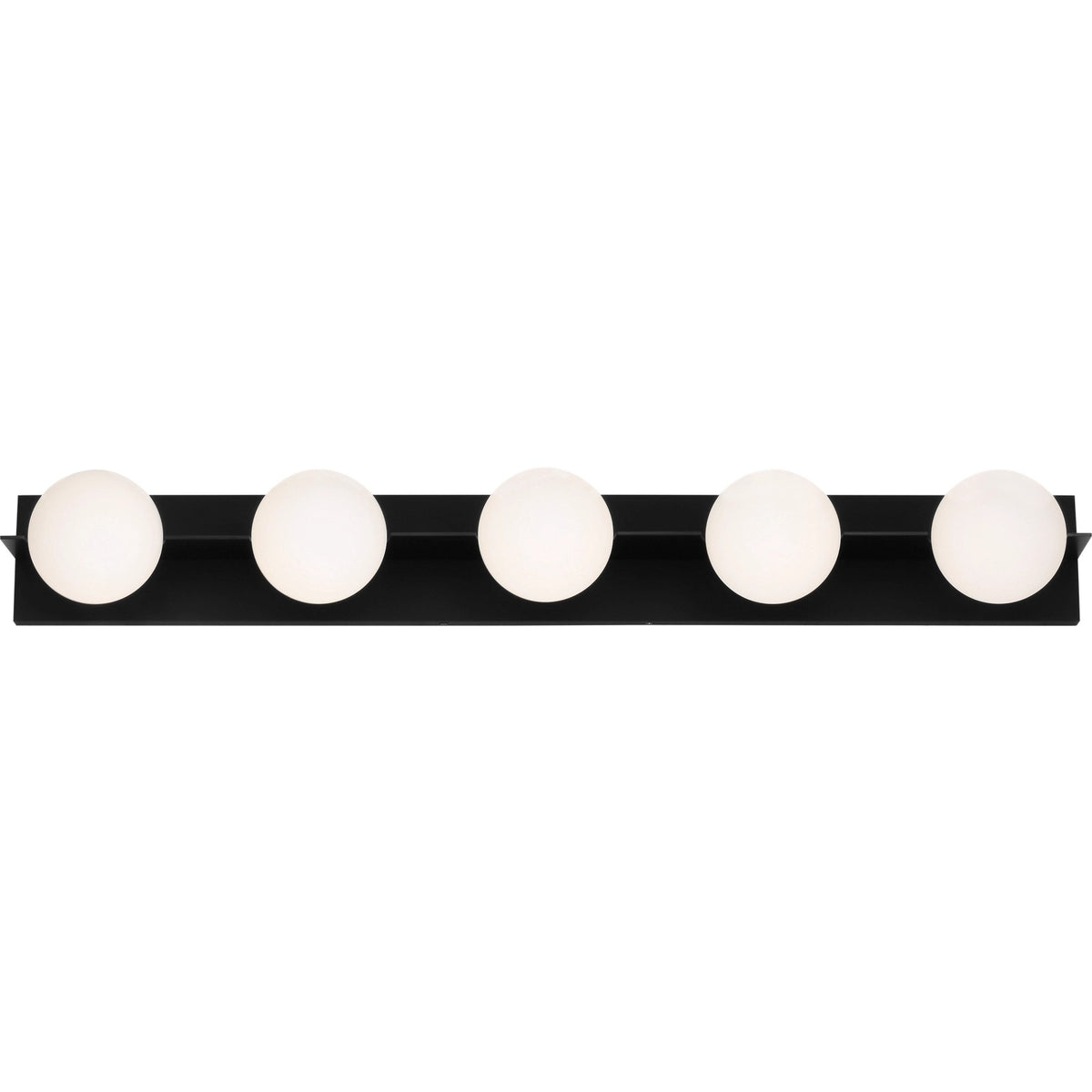

• Finishes: Matte Black, Natural Brass and Polished Nickel
• Height: 5" (12.7 cm)
• Width: 40.9" (103.9 cm)
• Projection from wall: 6.9" (17.5 cm)
• Backplate: 5" x 40.9" Rectangle
• Mounting: Mounts horizontally or vertically
• Light direction: Up and down
• Weight: 10 lb
• Light source: 5 × G9 bi-pin sockets
• Wattage: 5 W
• Color rendering: 90 CRI
• Voltage: 120V
• Dimming: Dimmable with most LED-compatible ELV or TRIAC dimmers
• Rating: Damp locations indoors; covered outdoor spaces
• Materials: aluminum, brass and frost glass
• Item numbers (MPN): SLBA124B, SLBA124NB, SLBA124N

Manufacturer downloads (Visual Comfort):

• Spec sheet (PDF)

When another fixture is the better call

• Inside a shower or tub enclosure: it is rated for damp locations, not wet.
• Tight walkways: it projects 6.9" from the wall.
• Commercial 277V circuits: the versions we list are 120V.

More sizes in the same family

Other sizes and versions in the family: Orbel 4-Light and Orbel 3-Light.

Care, cleaning and upkeep

Bulbs are replaceable; use the lamp type on the spec sheet. Wipe the frame and glass with a soft, dry cloth, power off (our advice). Installation is hardwired, so use a licensed electrician.

Questions about using it in your space

What size mirror suits the Orbel 5-Light Bath Bar?

About 55–62" (fixture about ⅔ to ¾ of the mirror width, never wider; our rule of thumb).

How high should I mount the Orbel 5-Light Bath Bar?

Center about 75–80" from the floor, a few inches above the mirror (our advice).

What about a double vanity?

One above each sink, centered on the basin.

How far does the Orbel 5-Light Bath Bar stick out from the wall?

6.9". Check the clearance against the faucet and any shelf.

Can the Orbel 5-Light Bath Bar go over a shower or tub?

Its listed rating is damp locations indoors; covered outdoor spaces. Keep it outside the wet zone of a shower or tub enclosure unless the rating says wet.

Does the Orbel 5-Light Bath Bar work with a dimmer?

Dimmable with most LED-compatible ELV or TRIAC dimmers.

Specifying for a project

Designers, architects, contractors and hospitality buyers can join our trade program for project pricing and help specifying quantities, finishes and color temperatures across a job.

Delivery

Versions we have available typically leave within 2–3 business days. Ground shipping is free on orders over $100 to the contiguous 48 states. All sales are final: please inspect the delivery and report any damage within 48 hours.

Please note: Because this item is made to order or specially sourced, it is final sale.
