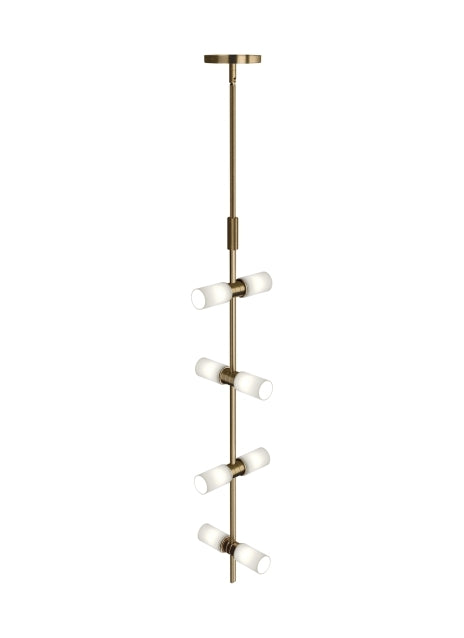

Visual Comfort ModernRail Glass Cylinders LED Pendant by Sean Lavin – 8.9-Inch, Dimmable

A dining chandelier has to fit the table, the ceiling and the room. The ModernRail Glass Cylinders LED Pendant is 8.9" wide; the planner below shows the table size it suits and the hanging height for 8, 9 and 10 foot ceilings.

Dry locations · Dimmable · ELV/TRIAC · Integrated LED · 1,405 lm · 90 CRI · 3000K

Where the ModernRail Glass Cylinders LED Pendant works in the house

Dining rooms. Center it over the table, not the room, with the bottom 30–36 inches above the tabletop. A fixture about half to three-quarters of the table width keeps the proportions comfortable.

Entries and stairwells. In a two-story foyer hang it so the lowest point clears sightlines from the landing; use the stems to reach the right height and keep 7 feet clear underneath.

Primary bedrooms and living rooms. Centered over the bed or a seating group, a chandelier works as a soft ambient layer on a dimmer.

Room planner: size, height and placement

The numbers below come from the manufacturer's specifications and our own placement rules, worked out for the ModernRail Glass Cylinders LED Pendant.

• Hall, stair or walk-through: keep the lowest pendant at least 7 ft above the floor
• On a sloped ceiling: Sloped ceilings up to 35°

Ceiling and table figures are our calculation for standard room dimensions, so measure your space. Have a licensed electrician install hardwired fixtures.

Pulling the room together

Layer it with wall sconces on the dining-room walls or a buffet lamp, and keep the chandelier on a dimmer so dinner and homework can share the table. Echo the finish in the sideboard hardware or mirror frame.

For commercial and multi-unit projects

For restaurants, boutique hotels and clubhouses, specify one fixture per table bay or a line of identical fixtures down the room. Send us the ceiling heights and table plan and we will help with sizes, stem counts and dimming.

Specifications

• Brand: Visual Comfort & Co., Modern Collection
• Designer: Sean Lavin
• Model: ModernRail Glass Cylinders Chandelier (700MDP3)
• Series: ModernRail
• Type: Integrated LED chandelier, rod (stem) mounted
• Finishes: Aged Brass
• Diameter: 8.9" (22.6 cm)
• Fixture height: 36" (91.4 cm)
• Maximum overall height: 96" with all included stems
• Minimum overall height: 42"
• Stems included: (2) 6" and (4) 12" stems in a coordinating finish
• Sloped ceiling: Sloped ceilings up to 35°
• Light source: Integrated LED (included)
• Light output: 1,405 delivered lumens
• Color temperature: 3000K
• Color rendering: 90 CRI
• Voltage: 24V low-voltage system (remote or surface power supply); hardwired by an electrician
• Dimming: Dimmable with most LED-compatible ELV or TRIAC dimmers
• Rating: Indoor, dry locations only
• Materials: Brass
• LED life: L70 50,000 hours (Visual Comfort spec sheet)
• Warranty: 5 years (Visual Comfort)
• Item numbers (MPN): 700MDP3CRR, 700MDP3CRS

Manufacturer downloads (Visual Comfort):

• Spec sheet (PDF)
• Installation guide (PDF)
• Life-size paper template (PDF) – print and tape to the ceiling to preview the size
• IES photometric file (ZIP) – for lighting designers

When another fixture is the better call

• Damp rooms or outdoor spaces: it is rated for dry indoor locations.
• Low ceilings: the fixture itself is 36" tall, so under an 8-foot ceiling it can hang into head space.
• Anyone who wants 2700K or 3500K or tunable white: it comes in 3000K only.

More sizes in the same family

Other sizes and versions in the family: ModernRail Glass Orbs, ModernRail 2 Glass Orbs and ModernRail 2 Glass Cylinders.

Care, cleaning and upkeep

The LED is built in, so there are no bulbs to buy or replace. Natural and hand-rubbed brass are living finishes that patina and warm with age; Visual Comfort notes a brass cleaner can restore an uneven patina. Dust the frame with a dry microfiber cloth, power off. Installation is hardwired, so use a licensed electrician.

Questions about using it in your space

What size table does the ModernRail Glass Cylinders LED Pendant suit?

Choose a fixture about half to three-quarters of the table width.

How high should the ModernRail Glass Cylinders LED Pendant hang over the table?

Leave 30–36 inches above the tabletop.

Can the ModernRail Glass Cylinders LED Pendant hang in an entry or stairwell?

Keep the lowest pendant at least 7 ft above the floor.

Does the ModernRail Glass Cylinders LED Pendant work on a sloped ceiling?

Sloped ceilings up to 35°.

Can the ModernRail Glass Cylinders LED Pendant go over an outdoor dining table?

Its listed rating is indoor, dry locations only; keep it under a roof.
