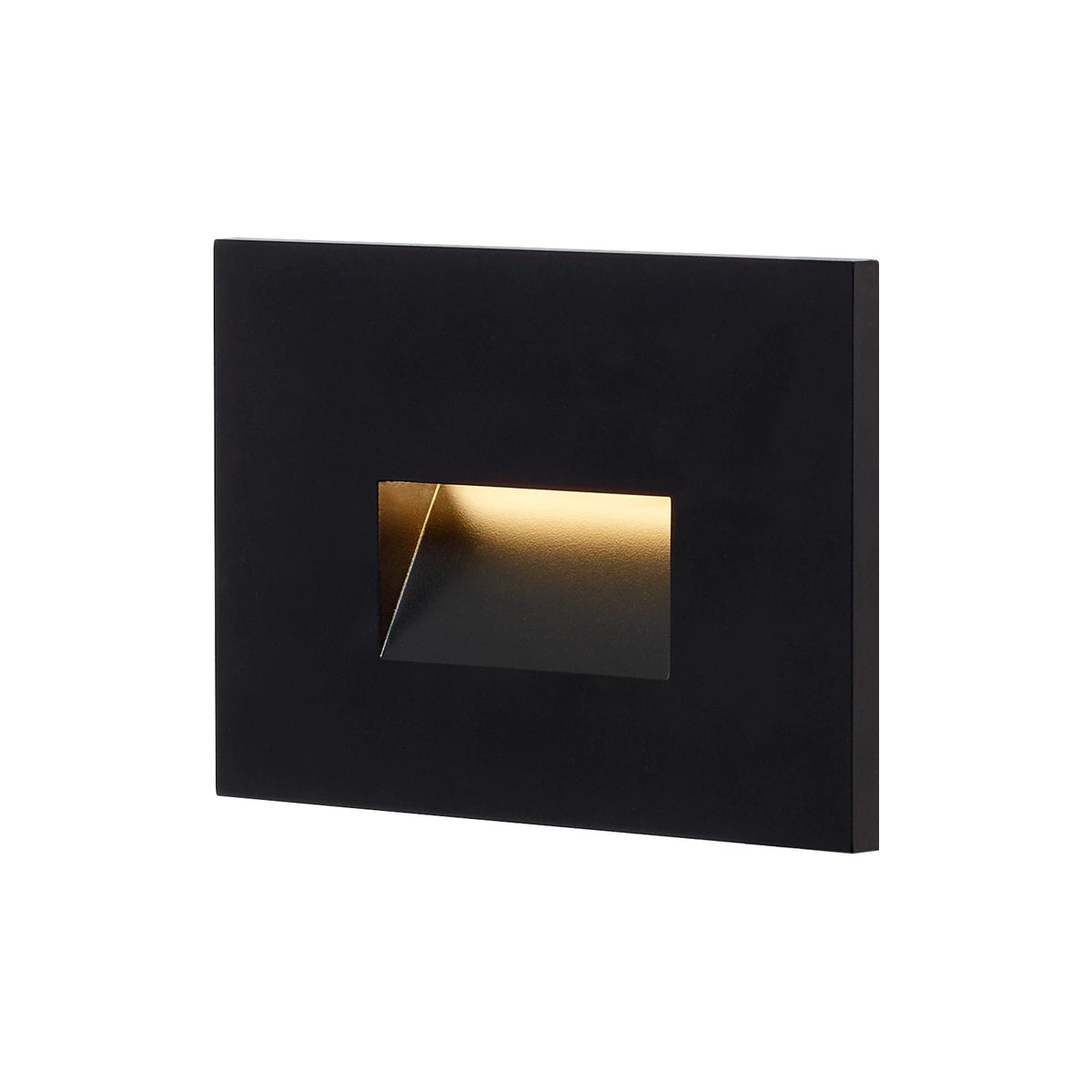

Visual Comfort Ikon LED Step Light by Sean Lavin – 4-Inch, Wet Rated, Dimmable, ADA

Beside a front door, flanking a garage or along a wall, the Ikon LED Step Light (4" tall × 6" wide) is a practical exterior fixture. Use the mounting guidance below to place it.

Wet listed · IP66 · Dimmable · ELV · Integrated LED · 90 CRI · 2700K/3000K selectable · ADA compliant · Dark Sky compliant

Where the Ikon LED Step Light works in the house

Front and side doors. Mount one fixture on each side of the door, or one on the latch side if space is tight, with the center about 66 inches above the threshold.

Garages. Flank the door or place one between two doors, a little above the door's midpoint, so the light falls on the driveway and not into the neighbor's window.

Walls, courtyards and paths. Space fixtures about 8–10 feet apart for wayfinding, and check the projection against the walkway width.

Pulling the room together

Put the fixtures on a photocell or timer, repeat the finish on house numbers and the door hardware, and add path or step lighting so the entry is lit in layers.

For commercial and multi-unit projects

For hospitality entries, multifamily corridors, offices and retail frontages, we can help you specify one fixture and finish across elevations, check ratings for wet locations and plan quantities.

Specifications

• Brand: Visual Comfort & Co., Modern Collection
• Designer: Sean Lavin
• Model: Ikon Outdoor Step Light (700OSIKN)
• Series: Ikon Step
• Type: Integrated LED step and wall light, recessed
• Finishes: Bronze and Black
• Height: 4" (10.2 cm)
• Width: 6" (15.2 cm)
• Mounting: Recessed into a 2 × 4 junction box (step riser or low wall)
• ADA: Compliant (Visual Comfort)
• Weight: 1 lb
• Construction: Die-cast aluminum, powder-coat finish; stainless steel hardware
• Dark Sky: Compliant (BUG rating B0-U3-G1)
• Certification: ETL listed
• Light source: Integrated LED (included)
• Color temperature: 2700K or 3000K, selectable at installation
• Color rendering: 90 CRI
• Voltage: 12V (transformer sold separately) or 120V, chosen at order
• Dimming: Dimmable with most LED-compatible ELV dimmers
• Rating: Wet listed, IP66 (outdoor full weather)
• Materials: aluminum
• LED life: L70 60,000 hours (Visual Comfort spec sheet)
• Warranty: 5 years (Visual Comfort)
• Item numbers (MPN): 700OSIKN92730Z120, 700OSIKN92730Z12, 700OSIKN92730B120, 700OSIKN92730B12

Manufacturer downloads (Visual Comfort):

• Spec sheet (PDF)
• Installation guide (PDF)
• IES photometric file (ZIP) – for lighting designers
• Revit model (ZIP) – for architects

When another fixture is the better call

Care, cleaning and upkeep

The LED is built in, so there are no bulbs to replace (rated 60,000 hours to L70). Outdoors, rinse off dust, pollen and salt with mild soapy water and a soft cloth a few times a year, and avoid abrasive cleaners on the finish (our advice). Visual Comfort covers it with a 5-year warranty.

Questions about using it in your space

How tall a fixture suits my front door?

A fixture about a quarter to a third of the door height looks balanced.

How high should I mount the Ikon LED Step Light?

Center it about 66 inches above the threshold.

Can the Ikon LED Step Light flank a garage door?

Mount one on each side, a little above the door's midpoint.

How far apart should I space the Ikon LED Step Light along a wall or path?

About 8–10 feet apart.

Is the Ikon LED Step Light rated for outdoor use?

Rating: Wet listed, IP66 (outdoor full weather).

Does the Ikon LED Step Light work with a dimmer or photocell?

Dimmable with most LED-compatible ELV dimmers. Add a photocell or timer at the switch for dusk-to-dawn control.

Specifying for a project

Designers, architects, contractors and hospitality buyers can join our trade program for project pricing and help specifying quantities, finishes and color temperatures across a job.

Delivery

Versions we have available typically leave within 2–3 business days. Ground shipping is free on orders over $100 to the contiguous 48 states. All sales are final: please inspect the delivery and report any damage within 48 hours.

Please note: Because this item is made to order or specially sourced, it is final sale.
