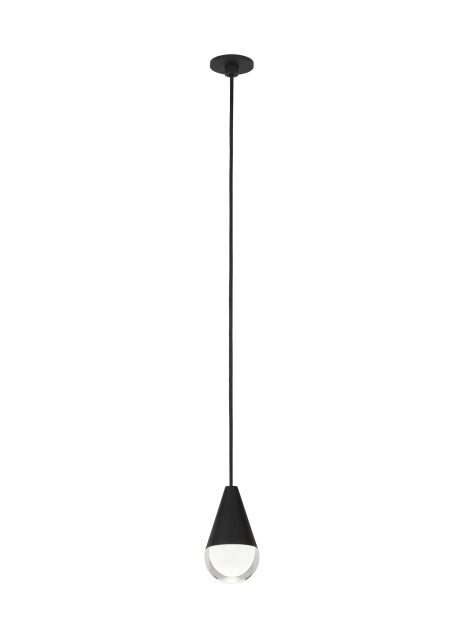

Visual Comfort Cupola 1-Light Port Alone LED Pendant by Sean Lavin – 2.6-Inch, Dimmable, Damp Rated

Hung in a row over a kitchen island or bar, the Cupola 1-Light Port Alone LED Pendant (2.6" wide) sets the rhythm of the room. This page shows how many you need, how high to hang them and what ceiling heights work.

Damp rated · Outdoor under cover · Dimmable · 0-10V · Integrated LED · 344 lm · 90 CRI · 3000K · CA Title 24

Where the Cupola 1-Light Port Alone LED Pendant works in the house

Kitchen islands and breakfast bars. Hang them in a row centered on the island, with the bottom of each shade 30–36 inches above the counter. Space the centers to suit the island length so the row ends short of the overhang.

Dining tables and banquettes. Two or three over a table read as a set; keep the line centered and the lowest point about 30–36 inches above the top.

Bedsides, offices and entries. Singles or pairs replace table lamps beside a bed and free the nightstand, or mark a small entry or reading nook.

Room planner: size, height and placement

The numbers below come from the manufacturer's specifications and our own placement rules, worked out for the Cupola 1-Light Port Alone LED Pendant.

• Over an island or counter: bottom of the pendant 30–36" above the surface
• How many for your island: 6 ft island: 3; 8 ft island: 4; 10 ft island: 4 (about 24" between centers, 6" or more in from each end)
• Over a dining table: hang two or three in a row along the table, 30–36" above the top
• 8 ft ceiling, 36" counter: overall drop about 24–30"
• 9 ft ceiling, 36" counter: overall drop about 36–42"
• 10 ft ceiling, 36" counter: overall drop about 48–54"
• Hall, stair or walk-through: keep at least 7 ft from the floor to the bottom of the pendant
• On a sloped ceiling: Sloped ceilings up to 45°

Ceiling and table figures are our calculation for standard room dimensions, so measure your space. Have a licensed electrician install hardwired fixtures.

Pulling the room together

Keep the pendant row on its own dimmer and add recessed or under-cabinet light for tasks. Match the metal to the cabinet pulls or faucet and let the counter stools carry the second material.

For commercial and multi-unit projects

For cafés, bars, hotel lobbies and restaurant counters, repeat the same pendant at a fixed pitch along the bar and specify one finish and one drop height across the whole run. We can total up quantities and spacing for your plan.

Specifications

• Brand: Visual Comfort & Co., Modern Collection
• Designer: Sean Lavin
• Model: Cupola 1-Light Port Alone Pendant (700TRSPACPA1P)
• Series: Cupola
• Type: Integrated LED pendant, cord/cable hung, Port Alone canopy with remote driver
• Finishes: Natural Brass and Nightshade Black
• Diameter: 2.6" (6.6 cm)
• Fixture height: 4.7" (11.9 cm)
• Maximum hanging height: 134.6"
• Minimum overall height: 14.6"
• Included: 11 feet of field-cuttable matte black cord
• Canopy: 2.6" x 2.6" Round
• Sloped ceiling: Sloped ceilings up to 45°
• Weight: 4 lb
• Light source: Integrated LED (included)
• Wattage: 4.3 W
• Light output: 344 delivered lumens
• Color temperature: 3000K
• Color rendering: 90 CRI
• Voltage: 120–277V universal
• Dimming: Dimmable with most LED-compatible 0-10V dimmers
• Rating: Indoor damp; outdoor under cover
• Materials: brass, aluminum and crystal
• LED life: L70 50,000 hours (Visual Comfort spec sheet)
• Warranty: 5 years (Visual Comfort)
• California Title 24: Compliant
• Item numbers (MPN): 700TRSPACPA1PNB-LED930, 700TRSPACPA1PB-LED930

Manufacturer downloads (Visual Comfort):

• Spec sheet (PDF)
• Installation guide (PDF)
• Life-size paper template (PDF) – print and tape to the ceiling to preview the size
• IES photometric file (ZIP) – for lighting designers

When another fixture is the better call

• Anyone using a standard phase dimmer: Visual Comfort lists 0-10V dimming for this pendant.
• Fully exposed outdoor locations: it is rated for covered outdoor spaces, not direct rain.
• Anyone who wants 2700K or 3500K or tunable white: it comes in 3000K only.
• Anyone who needs bright task light from one fixture: plan extra lighting.

More sizes in the same family

Other sizes and versions in the family: Cupola 1-Light.

Care, cleaning and upkeep

The LED is built in, so there are no bulbs to buy or replace. Clean crystal or glass with a soft, lint-free cloth, power off and cool; avoid ammonia and abrasive cleaners (our advice). Natural and hand-rubbed brass are living finishes that patina and warm with age; Visual Comfort notes a brass cleaner can restore an uneven patina. Dust the frame with a dry microfiber cloth, power off. Installation is hardwired, so use a licensed electrician.

Questions about using it in your space

How many Cupola 1-Light Port Alone LED Pendant fixtures do I need over an island?

6 ft island: 3; 8 ft island: 4; 10 ft island: 4 (about 24" between centers, 6" or more in from each end).

How high should the Cupola 1-Light Port Alone LED Pendant hang over a counter or table?

Bottom of the pendant 30–36" above the surface. Over a table: hang two or three in a row along the table, 30–36" above the top.

What drop works with an 8, 9 or 10 foot ceiling?

8 ft ceiling: overall drop about 24–30"; 9 ft ceiling: overall drop about 36–42"; 10 ft ceiling: overall drop about 48–54". Figures are our calculation for a standard table or 36-inch counter, so measure yours.

Can the Cupola 1-Light Port Alone LED Pendant hang in a hallway or stair?

Keep at least 7 ft from the floor to the bottom of the pendant.

Can the Cupola 1-Light Port Alone LED Pendant go on a sloped ceiling?

Sloped ceilings up to 45°. Use the sloped-ceiling canopy where needed.

Is the Cupola 1-Light Port Alone LED Pendant suitable for a covered patio or bathroom?

Its listed rating is indoor damp; outdoor under cover. Keep it out of direct rain.

Specifying for a project

Designers, architects, contractors and hospitality buyers can join our trade program for project pricing and help specifying quantities, finishes and color temperatures across a job.
