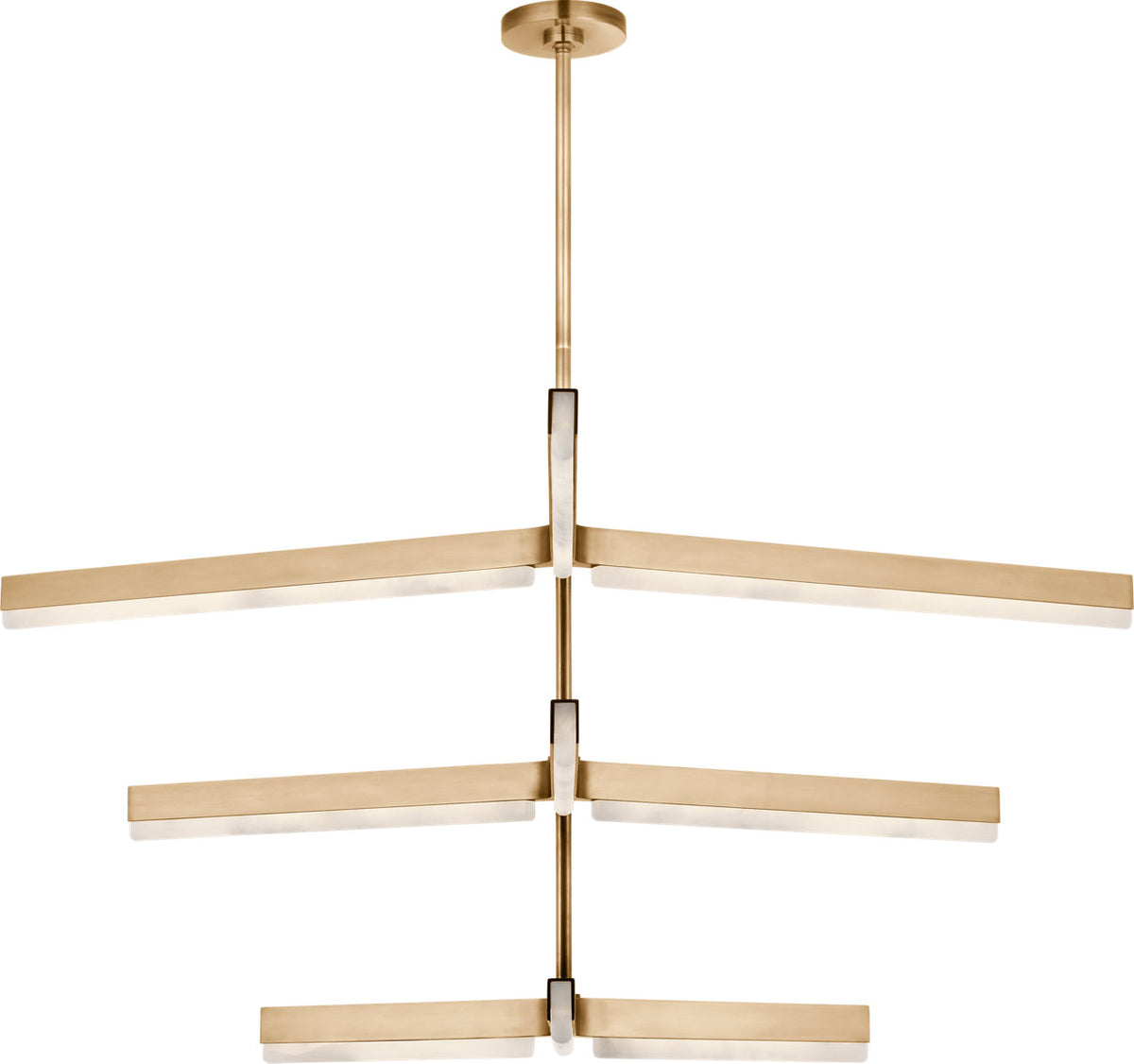

Visual Comfort Linea 56 Three Tier LED Chandelier by Kelly Wearstler – 56-Inch, Dimmable, Damp Rated

Sizing a chandelier by the room: the Linea 56 Three Tier LED Chandelier measures 56" wide. Match it to your table, check the clearance and plan the dimmer.

Damp rated · Outdoor under cover · Dimmable · ELV/TRIAC/0-10V · Integrated LED · 2,666 lm · 90 CRI · 2700K · CA Title 24

Where the Linea 56 Three Tier LED Chandelier works in the house

Dining rooms. Center it over the table, not the room, with the bottom 30–36 inches above the tabletop. A fixture about half to three-quarters of the table width keeps the proportions comfortable.

Entries and stairwells. In a two-story foyer hang it so the lowest point clears sightlines from the landing; use the stems to reach the right height and keep 7 feet clear underneath.

Primary bedrooms and living rooms. Centered over the bed or a seating group, a chandelier works as a soft ambient layer on a dimmer.

Room planner: size, height and placement

The numbers below come from the manufacturer's specifications and our own placement rules, worked out for the Linea 56 Three Tier LED Chandelier.

• Rectangular table: at least 62" wide (56" fixture + 6")
• Round table: about 75–112" across (fixture = ½ to ¾ of the table)
• Hanging height over the table: bottom of the fixture 30–36" over the tabletop
• In a room with an 8 ft ceiling: overall height about 30–36"
• With a 9 ft ceiling: overall height about 42–48"
• With a 10 ft ceiling: overall height about 54–60"
• With a 12 ft ceiling: overall height about 78–84"
• Hall, stair or walk-through: ceiling at least 9 ft to keep 7 ft of clearance under the fixture
• Taller ceilings: up to 87.5" overall with the included stems
• On a sloped ceiling: Sloped ceilings up to 22°

Ceiling and table figures are our calculation for standard room dimensions, so measure your space. Have a licensed electrician install hardwired fixtures.

Pulling the room together

Layer it with wall sconces on the dining-room walls or a buffet lamp, and keep the chandelier on a dimmer so dinner and homework can share the table. Echo the finish in the sideboard hardware or mirror frame.

For commercial and multi-unit projects

For restaurants, boutique hotels and clubhouses, specify one fixture per table bay or a line of identical fixtures down the room. Send us the ceiling heights and table plan and we will help with sizes, stem counts and dimming.

Specifications

• Brand: Visual Comfort & Co., Modern Collection
• Designer: Kelly Wearstler
• Model: Linea 56 Three Tier Chandelier (KWCH705)
• Series: Linea
• Type: Integrated LED chandelier, rod (stem) mounted
• Finishes: Antique Nickel and Bronze
• Diameter: 56" (142.2 cm)
• Fixture height: 20.8" (52.8 cm)
• Maximum overall height: 87.5" with all included stems
• Minimum overall height: 29.5"
• Stems included: (4) 12" and (2) 6" rigid stems
• Wire length: 72"
• Canopy: 6.7" x 6.7" Round
• Sloped ceiling: Sloped ceilings up to 22°
• Weight: 56 lb
• Light source: Integrated LED (included)
• Wattage: 74.5 W
• Light output: 2,666 delivered lumens
• Color temperature: 2700K
• Color rendering: 90 CRI
• Voltage: 120–277V universal
• Dimming: Dimmable with most LED-compatible ELV, TRIAC or 0-10V dimmers
• Rating: Indoor damp; outdoor under cover
• Materials: Brass and alabaster
• LED life: L70 50,000 hours (Visual Comfort spec sheet)
• Warranty: 5 years (Visual Comfort)
• California Title 24: Compliant
• Item numbers (MPN): KWCH70527BZALB, KWCH70527ANALB

Manufacturer downloads (Visual Comfort):

• Spec sheet (PDF)
• Installation guide (PDF)
• IES photometric file (ZIP) – for lighting designers

When another fixture is the better call

• Anyone who wants perfectly uniform shades: natural alabaster varies in veining and tone.
• Low ceilings: the fixture itself is 20.8" tall, so under an 8-foot ceiling it can hang into head space.
• Fully exposed outdoor locations: it is rated for covered outdoor spaces, not direct rain.
• Anyone who wants 3000K or 3500K or tunable white: it comes in 2700K only.

More sizes in the same family

Other sizes and versions in the family: Linea 56 Two Tier.

Care, cleaning and upkeep

The LED is built in, so there are no bulbs to buy or replace. Alabaster is a natural material: expect variation in veining and tone, and dust it with a dry cloth only (our advice). Dust the frame with a dry microfiber cloth, power off. Installation is hardwired, so use a licensed electrician.

Questions about using it in your space

What size table does the Linea 56 Three Tier LED Chandelier suit?

Rectangular: at least 62" wide (56" fixture + 6"). Round: about 75–112" across (fixture = ½ to ¾ of the table).

How high should the Linea 56 Three Tier LED Chandelier hang over the table?

Bottom of the fixture 30–36" over the tabletop.

What ceiling height does the Linea 56 Three Tier LED Chandelier need?

8 ft ceiling: overall height about 30–36"; 9 ft ceiling: overall height about 42–48"; 10 ft ceiling: overall height about 54–60"; 12 ft ceiling: overall height about 78–84". Figures are our calculation for a standard table or 36-inch counter, so measure yours.

Can the Linea 56 Three Tier LED Chandelier hang in an entry or stairwell?

Ceiling at least 9 ft to keep 7 ft of clearance under the fixture. Up to 87.5" overall with the included stems.

Does the Linea 56 Three Tier LED Chandelier work on a sloped ceiling?

Sloped ceilings up to 22°.

Can the Linea 56 Three Tier LED Chandelier go over an outdoor dining table?

Its listed rating is indoor damp; outdoor under cover; keep it under a roof.

Specifying for a project

Designers, architects, contractors and hospitality buyers can join our trade program for project pricing and help specifying quantities, finishes and color temperatures across a job.

Delivery

Versions we have available typically leave within 2–3 business days. Ground shipping is free on orders over $100 to the contiguous 48 states. All sales are final: please inspect the delivery and report any damage within 48 hours.

Please note: Because this item is made to order or specially sourced, it is final sale.
