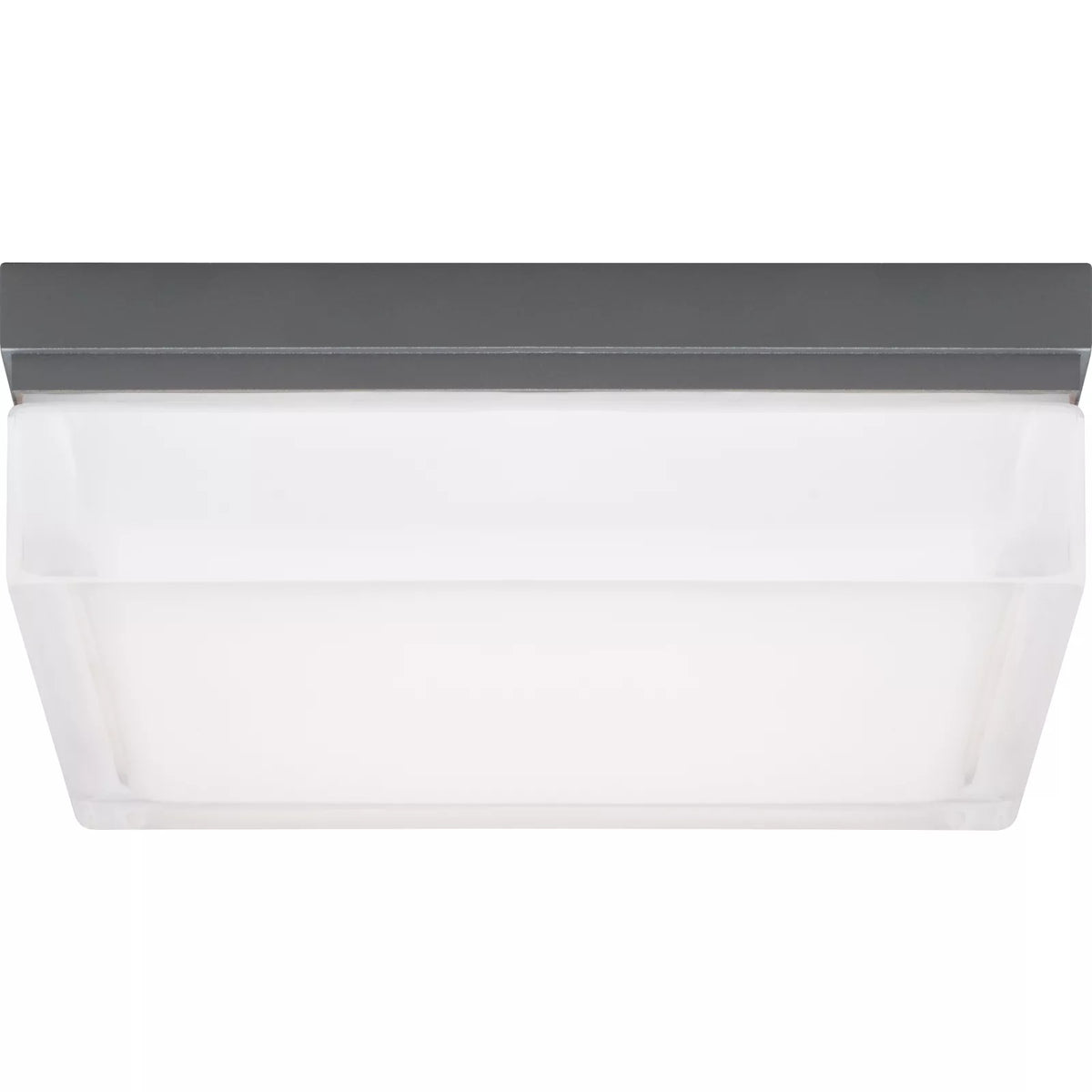

Visual Comfort Boxie Large LED Outdoor Wall/Ceiling Light by Sean Lavin – 2.7-Inch, Wet Rated, Dimmable, ADA

Beside a front door, flanking a garage or along a wall, the Boxie Large LED Outdoor Wall/Ceiling Light (2.7" tall × 9" wide) is a practical exterior fixture. Use the mounting guidance below to place it.

Wet listed · IP65 · Dimmable · ELV/TRIAC · Integrated LED · 905 lm · 90 CRI · 3000K · ADA compliant

Where the Boxie Large LED Outdoor Wall/Ceiling Light works in the house

Front and side doors. Mount one fixture on each side of the door, or one on the latch side if space is tight, with the center about 66 inches above the threshold.

Garages. Flank the door or place one between two doors, a little above the door's midpoint, so the light falls on the driveway and not into the neighbor's window.

Walls, courtyards and paths. Space fixtures about 8–10 feet apart for wayfinding, and check the projection against the walkway width.

Room planner: size, height and placement

The numbers below come from the manufacturer's specifications and our own placement rules, worked out for the Boxie Large LED Outdoor Wall/Ceiling Light.

• Beside the front door: a fixture about ¼ to ⅓ of the door height looks balanced: 20–27" for a standard 80" door (our rule of thumb). At 2.7", the Boxie Large is an accent size for side doors, gates, steps and garden walls
• Mounting height: center about 66" above the door threshold (our advice)
• At the garage: one on each side, or one between two doors, a little above the door’s midpoint (our advice)
• Along a wall or path: about 8–10 ft apart for wayfinding (our rule of thumb)
• How far it sticks out: 2.7"

Ceiling and table figures are our calculation for standard room dimensions, so measure your space. Have a licensed electrician install hardwired fixtures.

Pulling the room together

Put the fixtures on a photocell or timer, repeat the finish on house numbers and the door hardware, and add path or step lighting so the entry is lit in layers.

For commercial and multi-unit projects

For hospitality entries, multifamily corridors, offices and retail frontages, we can help you specify one fixture and finish across elevations, check ratings for wet locations and plan quantities.

Specifications

• Brand: Visual Comfort & Co., Modern Collection
• Designer: Sean Lavin
• Model: Boxie Large Outdoor Wall/Flush Mount (700OWBXL)
• Series: boxie
• Type: Integrated LED outdoor wall or ceiling light, hardwired
• Finishes: Bronze and Charcoal
• Height: 2.7" (6.9 cm)
• Width: 9" (22.9 cm)
• Projection from wall: 2.7" (6.9 cm)
• Light direction: Downlight
• ADA: Compliant (Visual Comfort)
• Weight: 10 lb
• Construction: Die-cast aluminum, powder-coat finish; stainless steel hardware
• Certification: ETL listed
• Light source: Integrated LED (included)
• Wattage: 25 W
• Light output: 905 delivered lumens
• Color temperature: 3000K
• Color rendering: 90 CRI
• Voltage: 120–277V universal
• Dimming: Dimmable with most LED-compatible ELV or TRIAC dimmers
• Rating: Wet listed, IP65 (outdoor full weather)
• Materials: aluminum and pressed glass
• LED life: L70 60,000 hours (Visual Comfort spec sheet)
• Warranty: 5 years (Visual Comfort)
• Item numbers (MPN): 700OWBXL930Z120, 700OWBXL930H120

Manufacturer downloads (Visual Comfort):

• Spec sheet (PDF)
• Installation guide (PDF)
• IES photometric file (ZIP) – for lighting designers
• Revit model (ZIP) – for architects

When another fixture is the better call

• Anyone wanting built-in motion sensing or dusk-to-dawn control: pair it with a separate sensor or smart switch.
• Anyone who wants a different color temperature: it comes in 3000K only.

More sizes in the same family

Other sizes and versions in the family: Boxie Small.

Care, cleaning and upkeep

The LED is built in, so there are no bulbs to replace (rated 60,000 hours to L70). Outdoors, rinse off dust, pollen and salt with mild soapy water and a soft cloth a few times a year, and avoid abrasive cleaners on the finish (our advice). Visual Comfort covers it with a 5-year warranty.

Questions about using it in your space

How tall a fixture suits my front door?

A fixture about ¼ to ⅓ of the door height looks balanced: 20–27" for a standard 80" door (our rule of thumb). At 2.7", the Boxie Large is an accent size for side doors, gates, steps and garden walls.

How high should I mount the Boxie Large LED Outdoor Wall/Ceiling Light?

Center about 66" above the door threshold (our advice).

Can the Boxie Large LED Outdoor Wall/Ceiling Light flank a garage door?

One on each side, or one between two doors, a little above the door’s midpoint (our advice).

How far apart should I space the Boxie Large LED Outdoor Wall/Ceiling Light along a wall or path?

About 8–10 ft apart for wayfinding (our rule of thumb).

Is the Boxie Large LED Outdoor Wall/Ceiling Light rated for outdoor use?

Rating: Wet listed, IP65 (outdoor full weather).

Does the Boxie Large LED Outdoor Wall/Ceiling Light work with a dimmer or photocell?

Dimmable with most LED-compatible ELV or TRIAC dimmers. Add a photocell or timer at the switch for dusk-to-dawn control.
