B.lux R2 S120 Ring pendant lamp - David Abad Design

The B.lux R2 S120 ring pendant lamp by David Abad, made to order in Spain with 6 finish options and 2 version options.

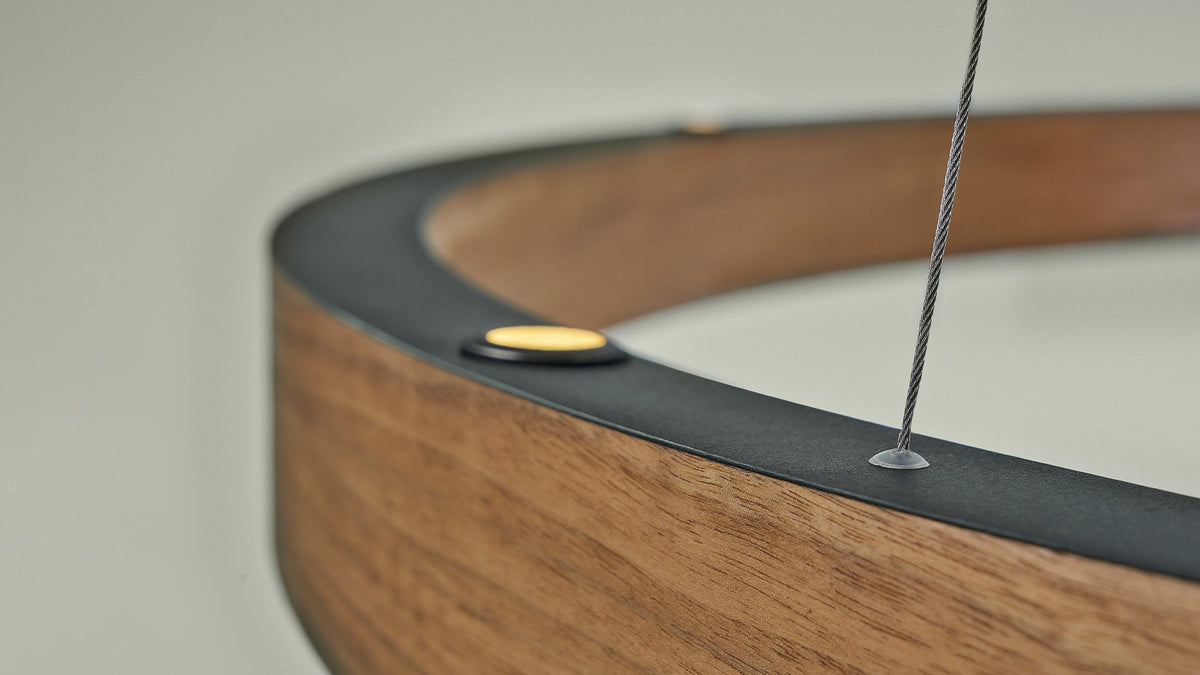

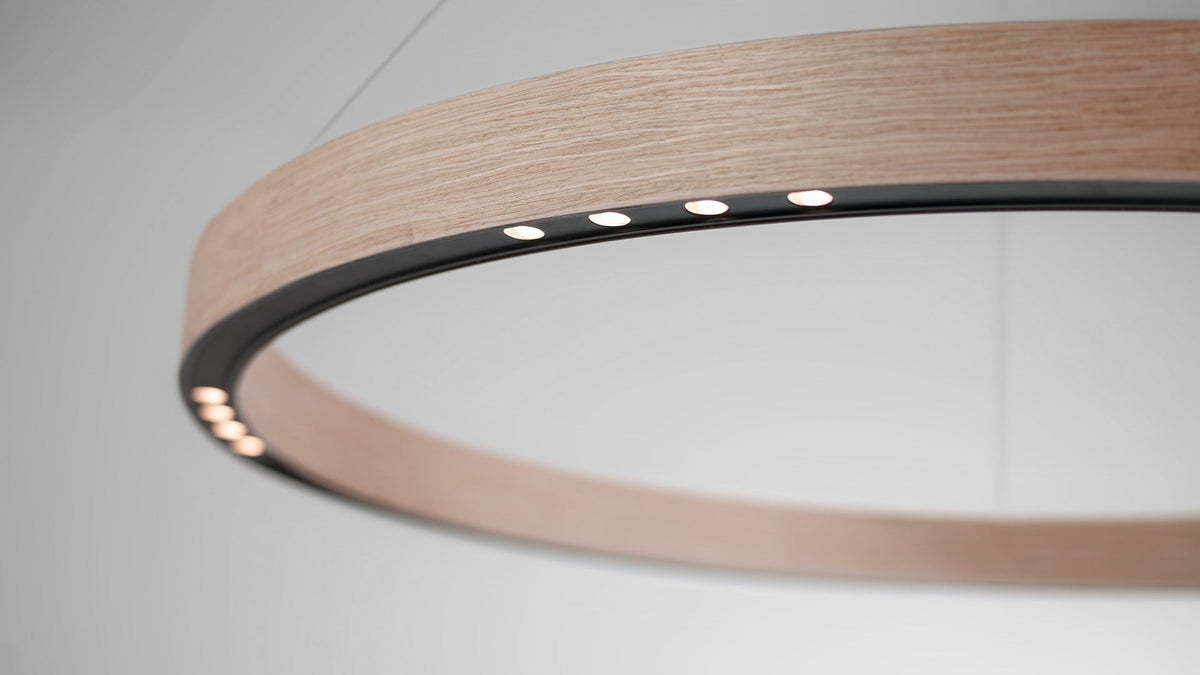

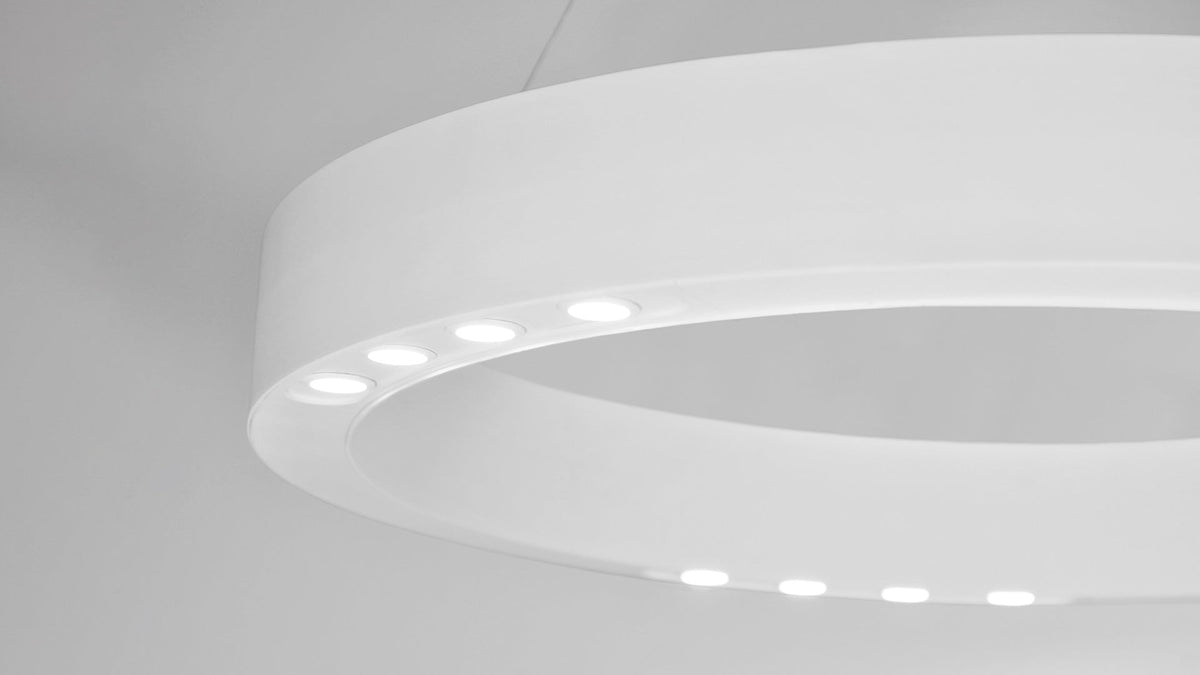

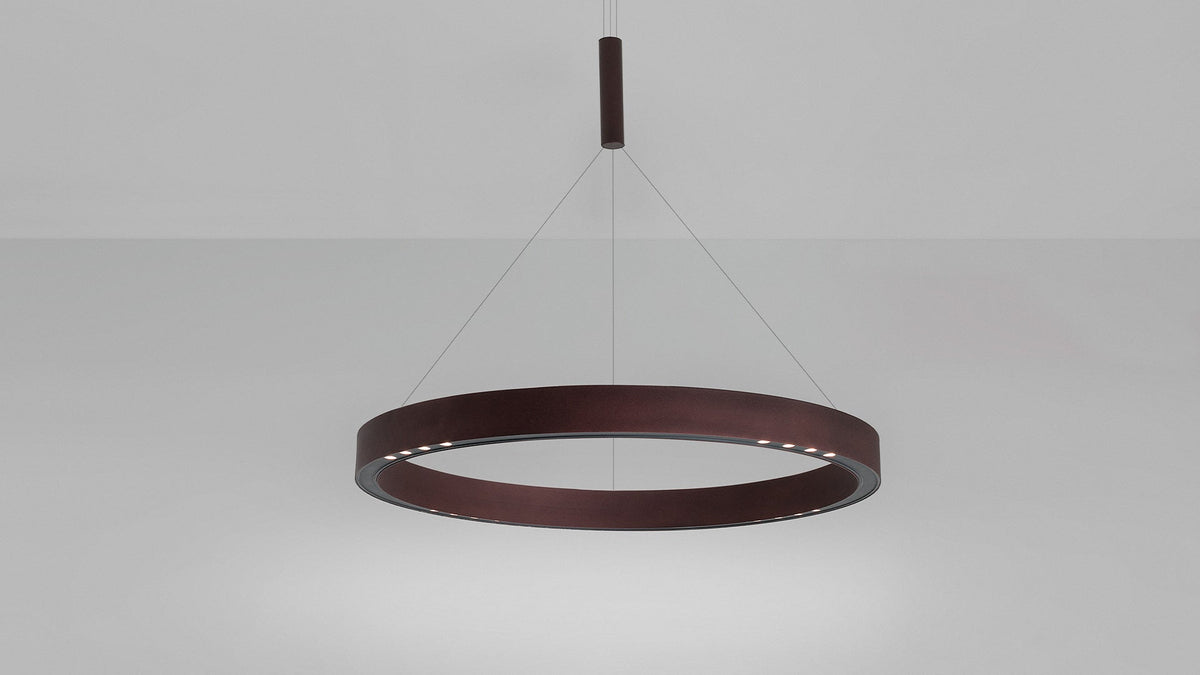

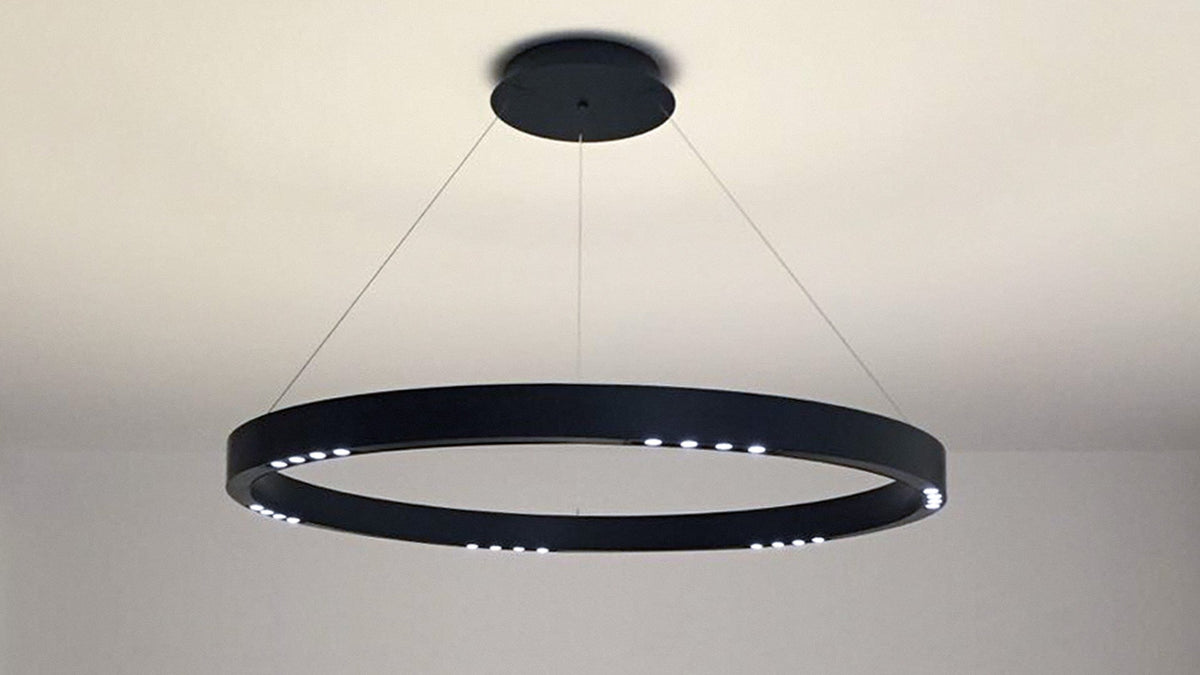

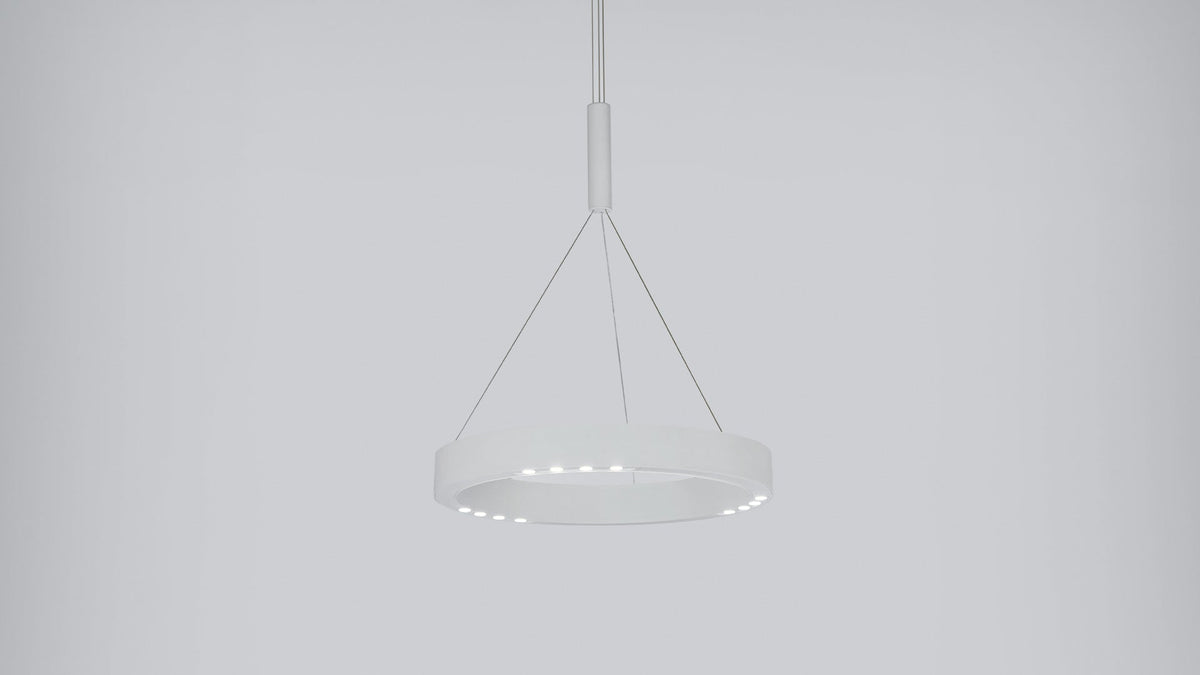

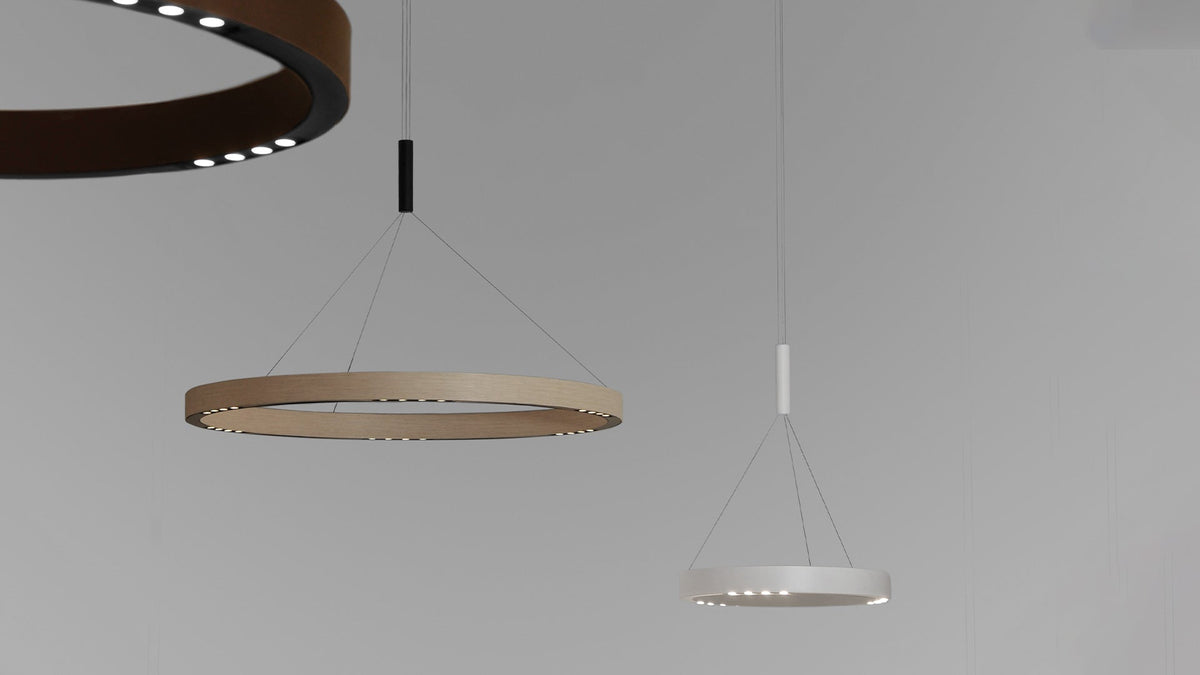

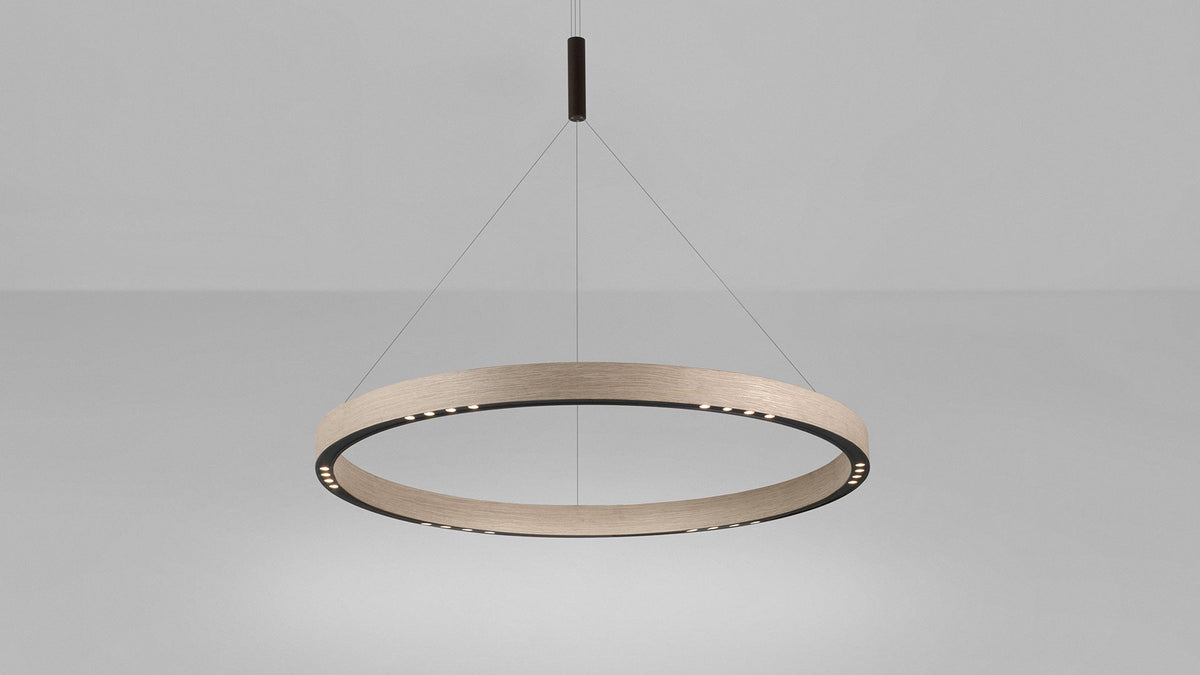

Suspension lamp in aluminium featuring a ring design, with a central cable to hang it. The flat canopy allows the R2 to hang from lower ceilings. LED spotlight modules provide direct and uniform lighting, and the up/down version adds indirect light. Finishes: matte white, matte black, matte bronze, brass, natural oak and natural walnut. Made in three sizes (S60, S90 and S120). The R2 S120 is the model listed here from B.lux's R2 S range. B.lux makes each piece to order in Spain.

Frequently asked questions

How big is the R2 S120?

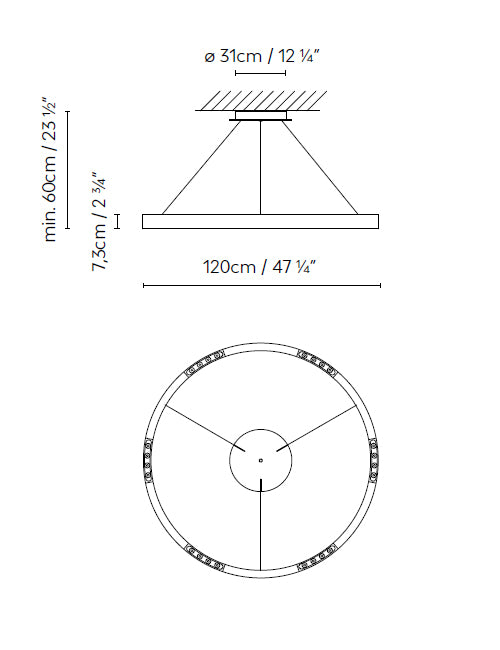

The R2 S120 measures 47.25 in wide, 2.75 in tall. The canopy is 12 x 12 x 0 in.

Which finish and version options are there?

Finish: White, Bronze, Black, Oak, Walnut, Brass. Version: Flat canopy, Flat canopy, up/down light. Each combination in the menus has its own B.lux item number and is made to order.

What light source does it use, and is it dimmable?

6 x LED sources, 18 W each; light source included. B.lux lists 15758 lm, 3000 K, CRI ≥90. Dimmable (DIM PUSH/1-10V); dimmer included.

How long does delivery take?

Each ring pendant lamp is made to order in Spain. B.lux lists a lead time of about 60 days, and we ship it to you from there by parcel.

Do the photos show my exact finish?

The photos are B.lux studio and room shots, so treat them as examples. Use the finish names on this page to confirm your choice.

Does the R2 S120 come in other sizes?

B.lux lists the R2 S120 as a single model, so there is only one size to choose.

Specifications

• Brand: B.lux (Spain)
• Collection: R2 S
• Model: R2 S120 ring pendant lamp
• Designer: David Abad
• Type: Ring pendant lamp; direct and uniform light
• Finish: White, Bronze, Black, Oak, Walnut, Brass
• Version: Flat canopy, Flat canopy, up/down light
• Size: 47.25 in wide, 2.75 in tall
• Material: Aluminium, Polycarbonate diffuser, Walnut, Oak
• Weight: 35.3 lb
• Light source: 6 x LED sources, 18 W each; light source included
• Light output: 15758 lm, 3000 K, CRI ≥90
• Voltage / listing: 110-277V, UL
• Dimming: Dimmable (DIM PUSH/1-10V); dimmer included
• Canopy: 12 x 12 x 0 in, white
• Lead time: Made to order in Spain, about 60 days
• Package size: 51.57 x 51.57 x 8.26 in (first carton 35.3 lb) (parcel)
• Made in: Spain
• B.lux item number: 743330FU to 743335FIU (list at the end of this page)

Features

• 6 options: White, Bronze, Black, Oak, Walnut, Brass
• 47.25 in wide, 2.75 in tall
• 15758 lm, 3000 K, CRI ≥90
• Dimmable
• UL listed, 110-277V

Spec sheet & drawings

• Spec sheet (PDF) from B.lux
• 2D drawing (PDF) from B.lux
• Assembly instructions (PDF) from B.lux
• Photometry files, LDT/IES (ZIP) from B.lux
• 3D model (3DS) from B.lux

Best for

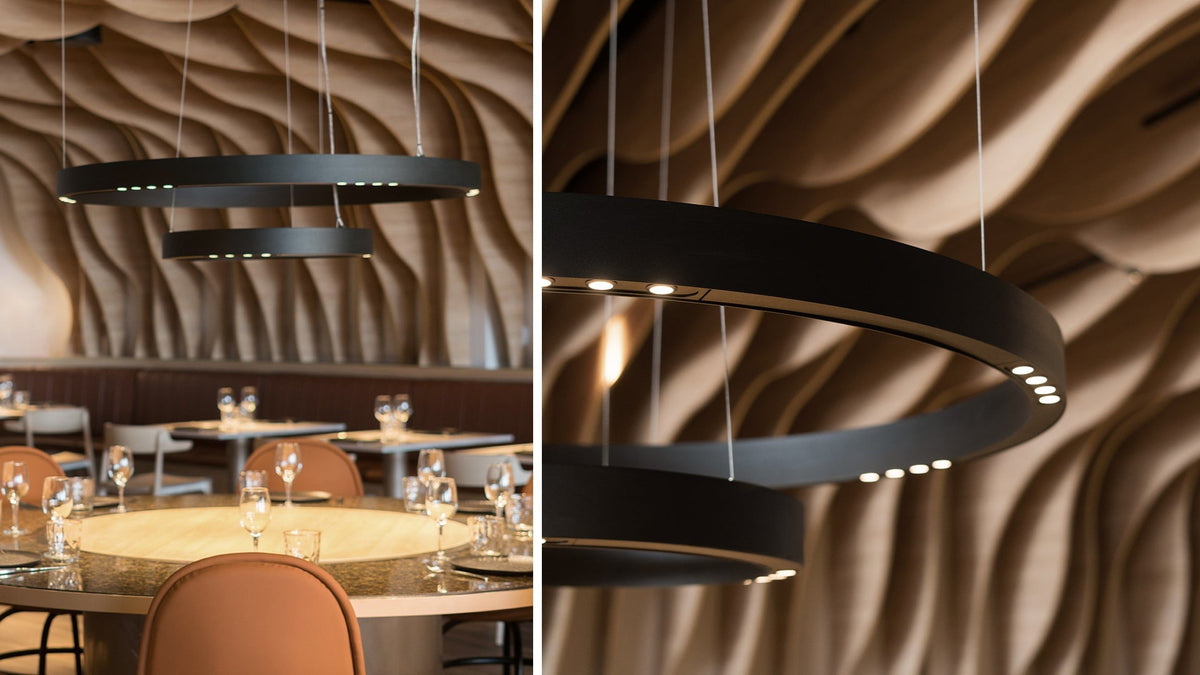

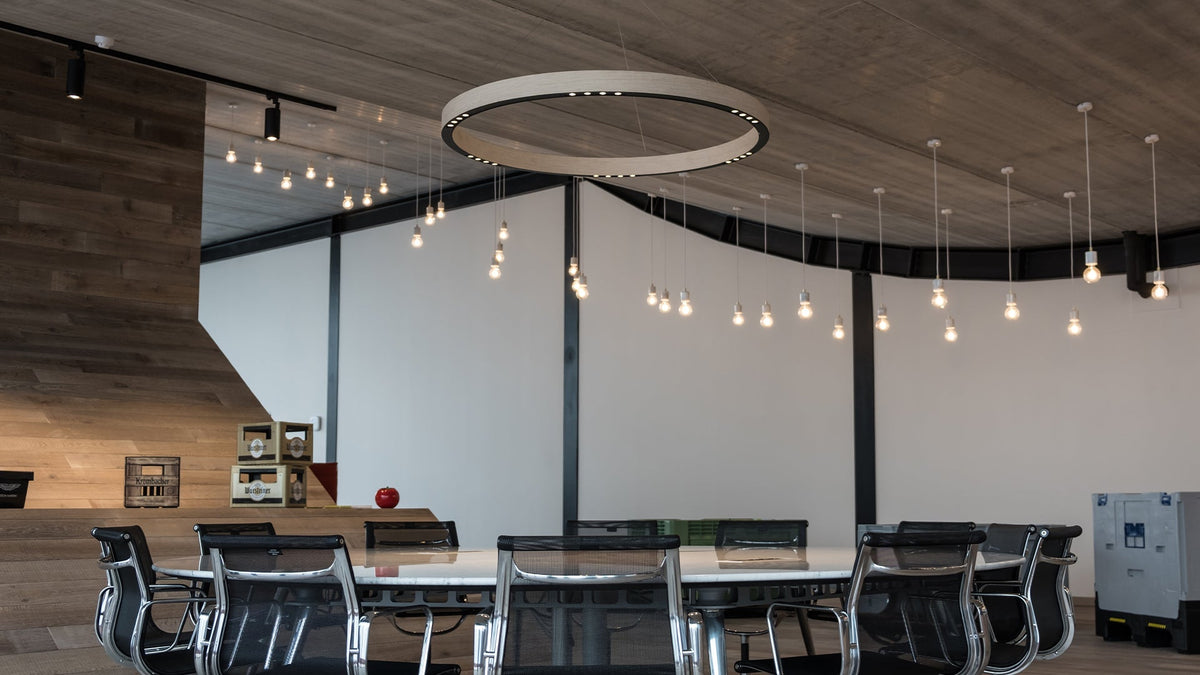

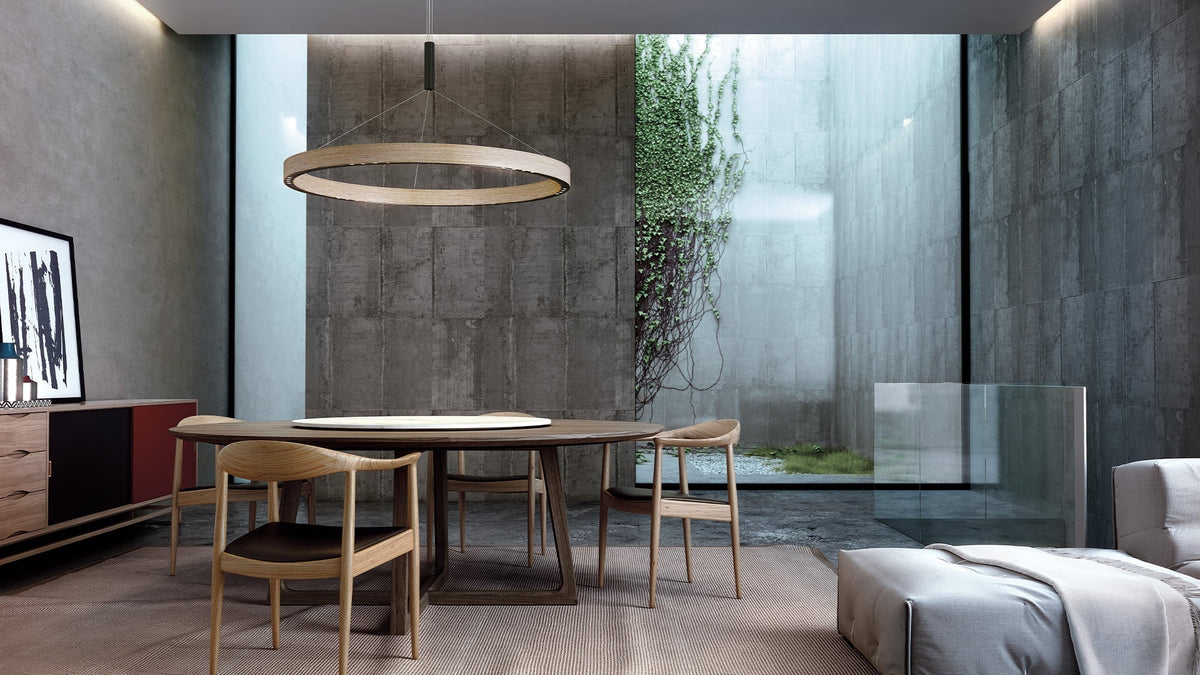

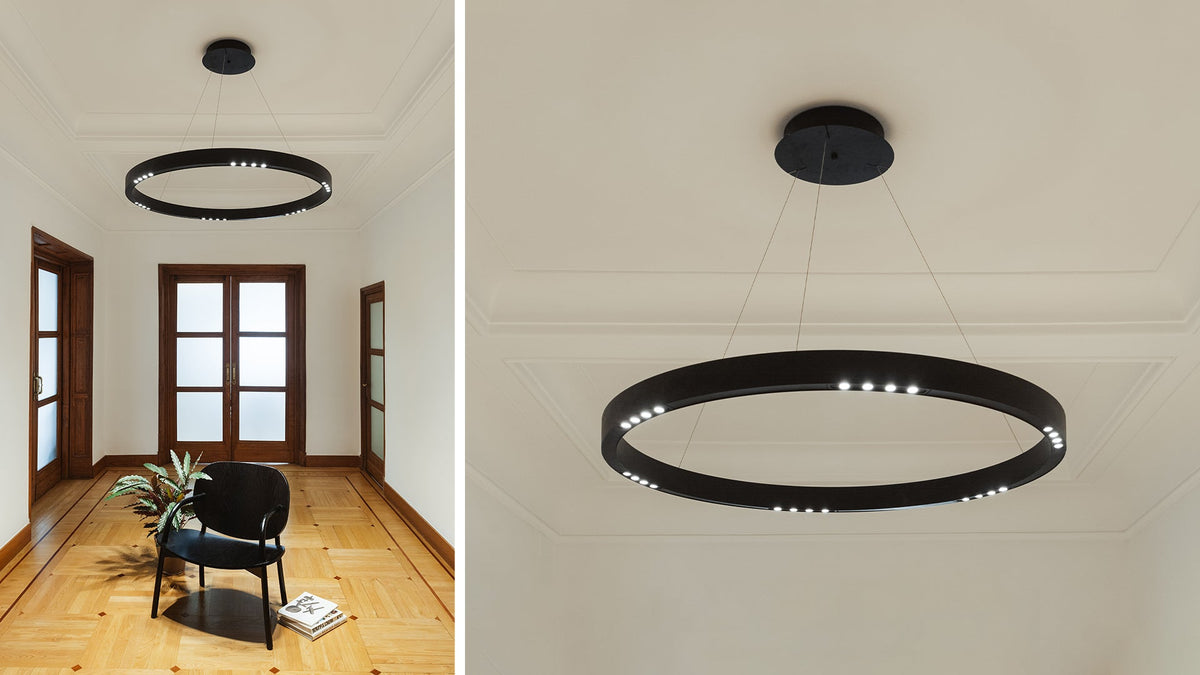

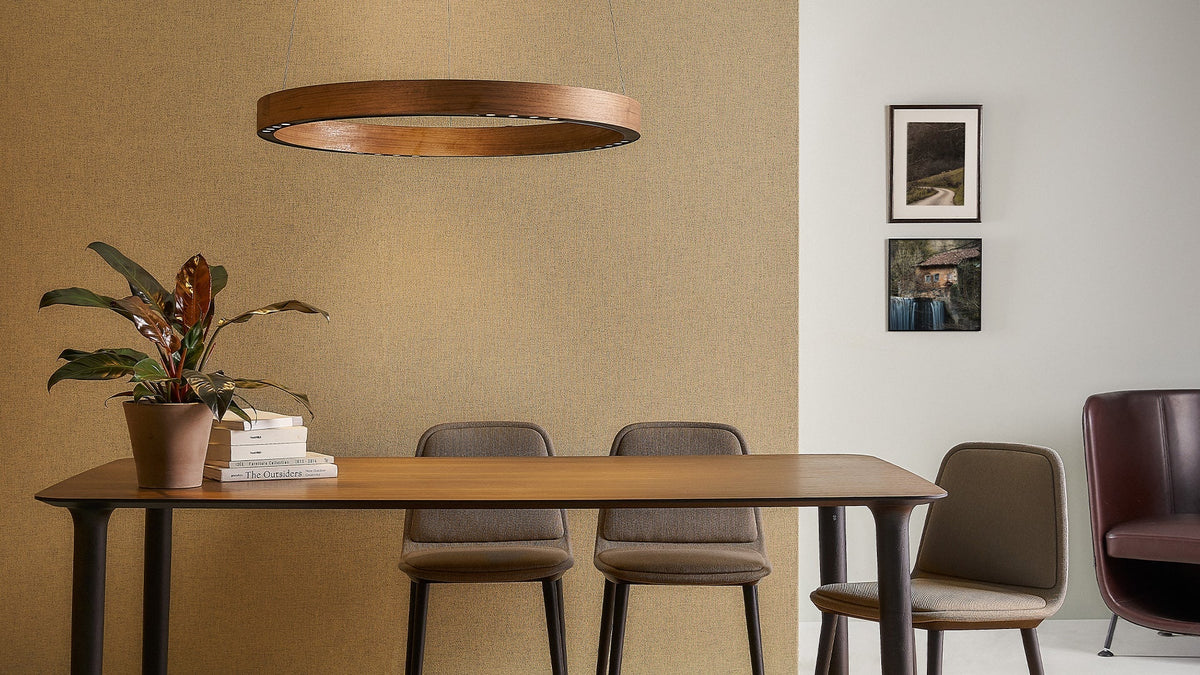

Dining tables, kitchen islands, entries, stairwells and reception areas, as in B.lux's own room photos.

Who this is not for

• Anyone who needs it within days: it is made to order with a lead time of about 60 days.
• Anyone who wants a fixture without a dimming control: this version is dimmable and is meant to be used with one.
• Anyone who wants to choose their own light source: it comes with the light source listed above.
• Anyone who needs to see their exact option in a photo: the photos show example versions.

About the designer

David Abad (Barcelona, 1967) ran his own lighting company, DAB, from 1997 to 2011 and founded David Abad Design in 2012. He was creative director at B.lux until 2015 (per B.lux).

Why we carry it

B.lux designs and manufactures in Spain and works with outside designers such as David Abad. We are an authorized seller and list every B.lux item number.

Care

B.lux does not publish care instructions for this model. Our advice; switch it off and let it cool, then wipe with a soft, dry or slightly damp cloth, and avoid abrasive cleaners.

Trade & project orders

Designers, hotels, restaurants and project buyers; ask us about quantities and mixed finishes and sizes.

Delivery

Made to order in Spain with a lead time of about 60 days, shipped to you by parcel. Free shipping on orders over $100.

B.lux item numbers

Our SKU is the B.lux item number with the prefix MD-BX-. Item numbers: 743330FU: White, Flat canopy; 743330FIU: White, Flat canopy, up/down light; 743331FU: Bronze, Flat canopy; 743331FIU: Bronze, Flat canopy, up/down light; 743332FU: Black, Flat canopy; 743332FIU: Black, Flat canopy, up/down light; 743333FU: Oak, Flat canopy; 743333FIU: Oak, Flat canopy, up/down light; 743334FU: Walnut, Flat canopy; 743334FIU: Walnut, Flat canopy, up/down light; 743335FU: Brass, Flat canopy; 743335FIU: Brass, Flat canopy, up/down light.

Please note: Because this item is made to order or specially sourced, it is final sale.
