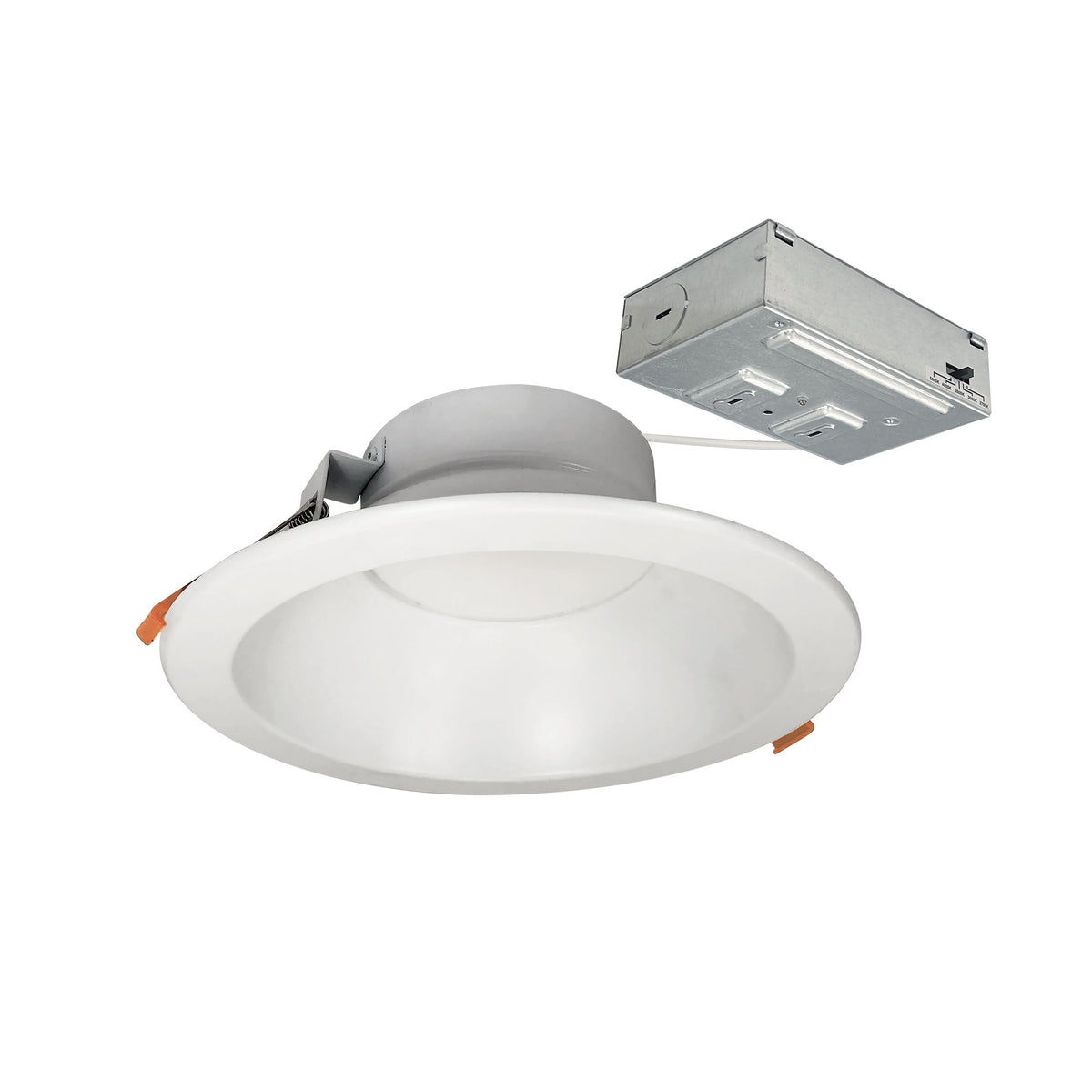

Nora Lighting NLTH-81TW Series 8" Theia LED Downlight with Selectable CCT

A slim LED downlight that needs no can, for remodels and tight ceilings.

The Nora Lighting NLTH-81TW Series is a 8" Theia LED Downlight with Selectable CCT. 8″ Theia LED luminaires are commercial grade downlights designed for easy installation into new construction or remodel applications. Tunable white luminaires include an integral color temperature switch located on the junction box of each luminaire with a quick connect that allows for easy disconnect and mounting in the ceiling. No housing required!

Spec sheet & downloads

Nora's spec sheet includes the dimension drawing and full technical details. Please check it (or share it with your electrician) before ordering.

• Specification sheet (PDF)
• Installation instructions (PDF)

What you need to buy

No can needed: it installs directly in a ceiling cutout and wires to its own junction box.

Sold separately:

• Accessories: NF-R725 – New Construction Frame; NFC-R725 – New Construction Frame with Collar; NFP-R725 – New Construction Plate; NEPK-23LEDUNV – 23W Emergency LED Driver with Remote Test Switch; NEPK-23LEDUNV-JB – 23W Emergency LED Driver Kit with Remote Test Switch

Specifications

• Brand: Nora Lighting
• Model: NLTH-81TW Series
• Type: Can-less LED downlight
• Size: 8"
• Light output: 2100lm / 22W

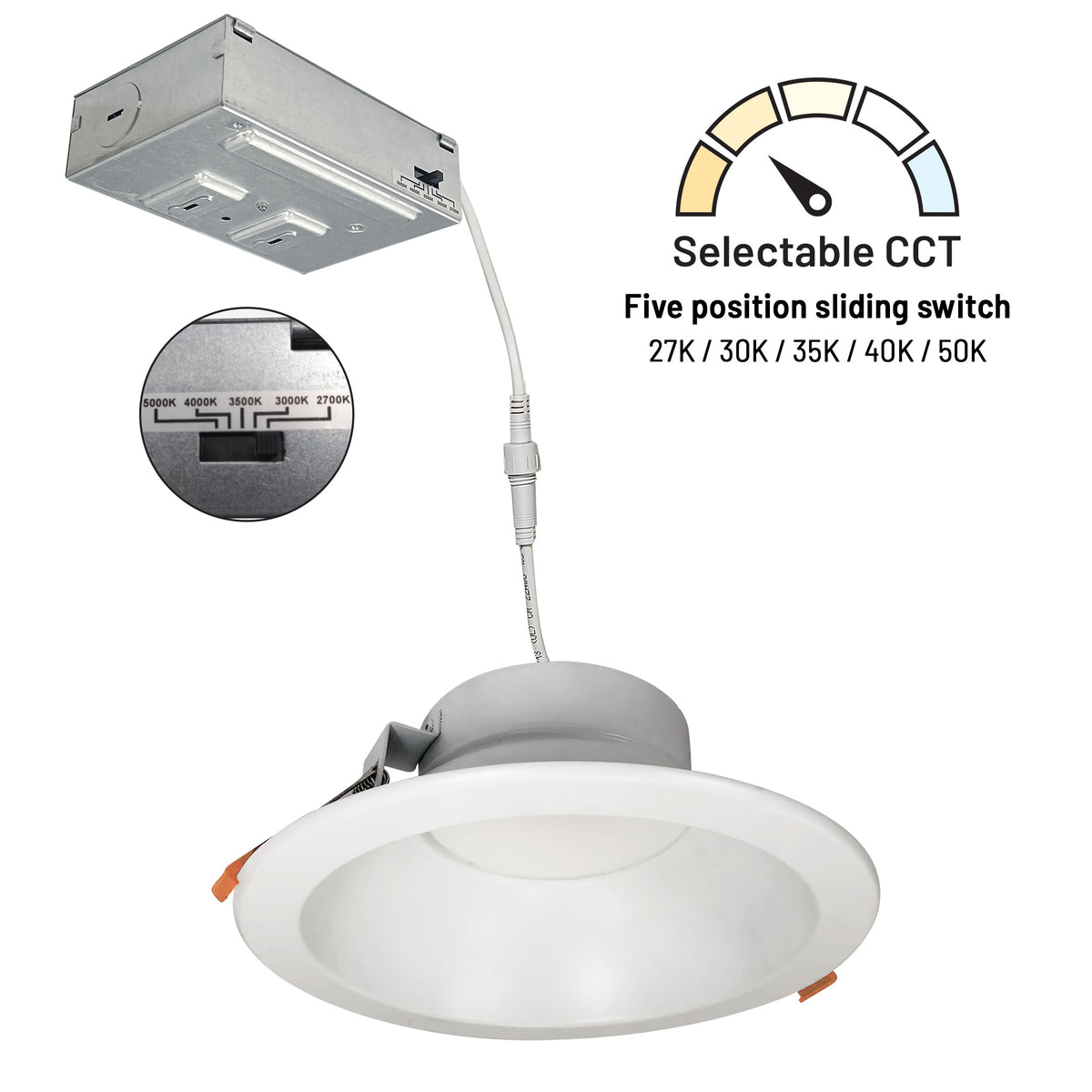

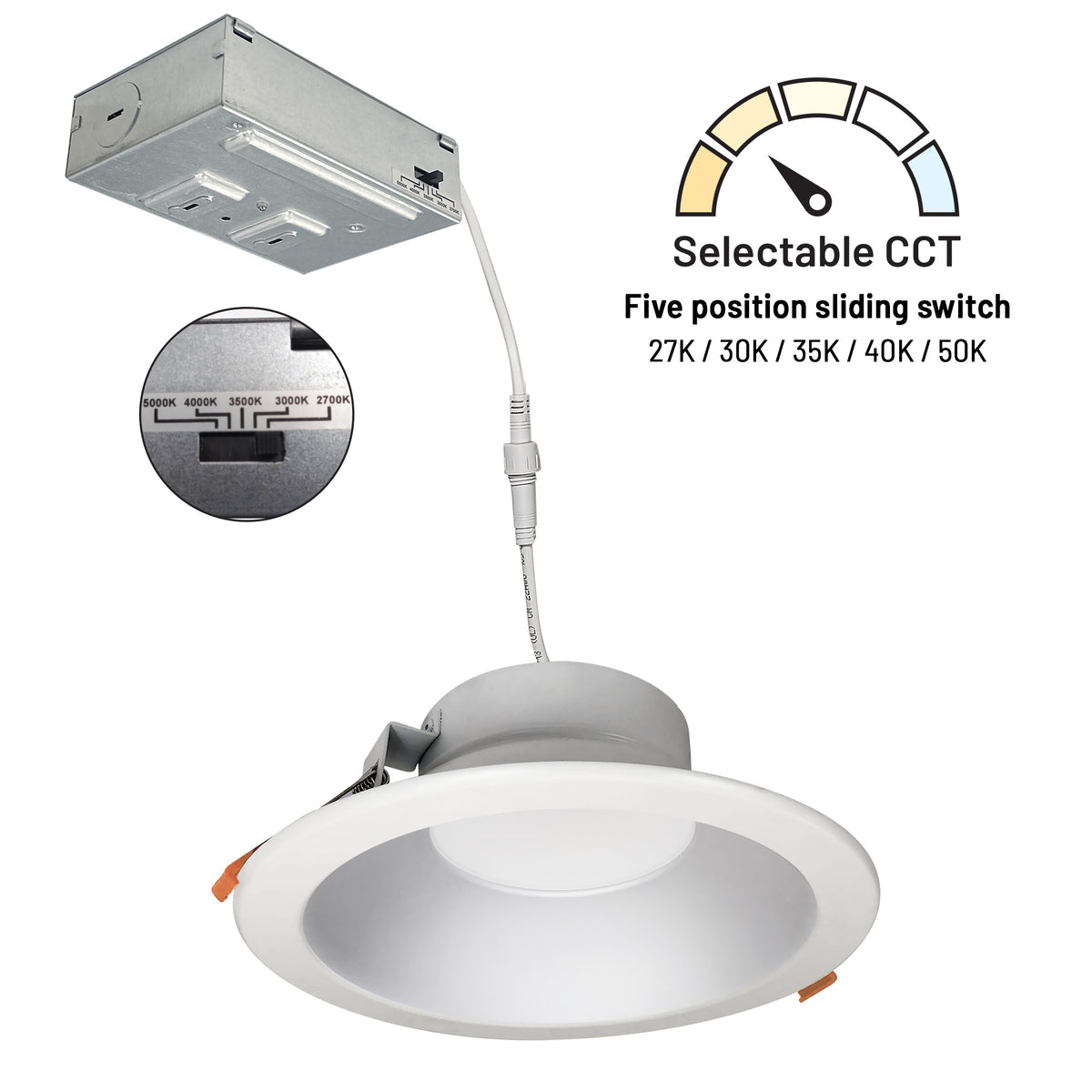

• Color temperature: Selectable CCT (27K / 30K / 35K / 40K / 50K)
• Color rendering (CRI): 90+
• Input voltage: 120V / 120-277V
• Dimming: Triac or ELV / 0-10V
• Finishes: Haze Reflector / Matte Powder White Flange or Matte Powder White
• Dimensions: 26" × 8.625" × 3.125" (L × W × H)
• Weight: 1.15 lb
• Listing: cETLus, rated for wet locations
• Certifications: California Title 24 (JA8) compliant
• Country of origin: China
• Nora item numbers: 3 options (listed below)

Why we carry it

We have curated lighting since 2009 and carry Nora because contractors trust it: clear specs, code-compliant housings and trims that fit what they say they fit. We list only options Nora has in stock and refresh stock every week, so the item number you order is the one that ships.

Frequently asked questions

Do I need a can or housing for the NLTH-81TW Series?

No. It is a can-less (wafer-style) downlight: it wires to its own junction box and mounts straight into a round hole in the ceiling, so it is ideal where there is little space above the drywall.

What dimmer should I use with the NLTH-81TW Series?

Nora rates it for Triac or ELV / 0-10V dimming. Use a dimmer listed for LED loads, and check the spec sheet for Nora's dimming details.

Can the NLTH-81TW Series go in a bathroom or outdoors?

It is listed for wet locations, so showers and covered outdoor ceilings are fine.

Is the NLTH-81TW Series in stock, and can I order it for a project?

We only list options that Nora has ready to ship and update stock from their warehouse every week. Contractors and builders are welcome to order in project quantities; contact us for larger jobs.

What are the dimensions of the NLTH-81TW Series?

Nora lists it at 26" × 8.625" × 3.125" (L × W × H), weighing 1.15 lb. The spec sheet linked above has the full dimension drawing.

How do I make sure I order the right part?

Match the Nora item number on your plans, quote or old fixture to the item numbers listed on this page. If you are replacing a part, the model number is usually printed on a label inside the housing or on the trim. Send us the number if you are unsure and we will check it for you.

Contractors & project orders

Electricians, builders and designers: order mixed finishes and color temperatures in project quantities. Contact us for larger jobs.

Shipping

Free shipping on orders over $100. In-stock items typically leave the warehouse in 2–3 business days.

Nora item numbers

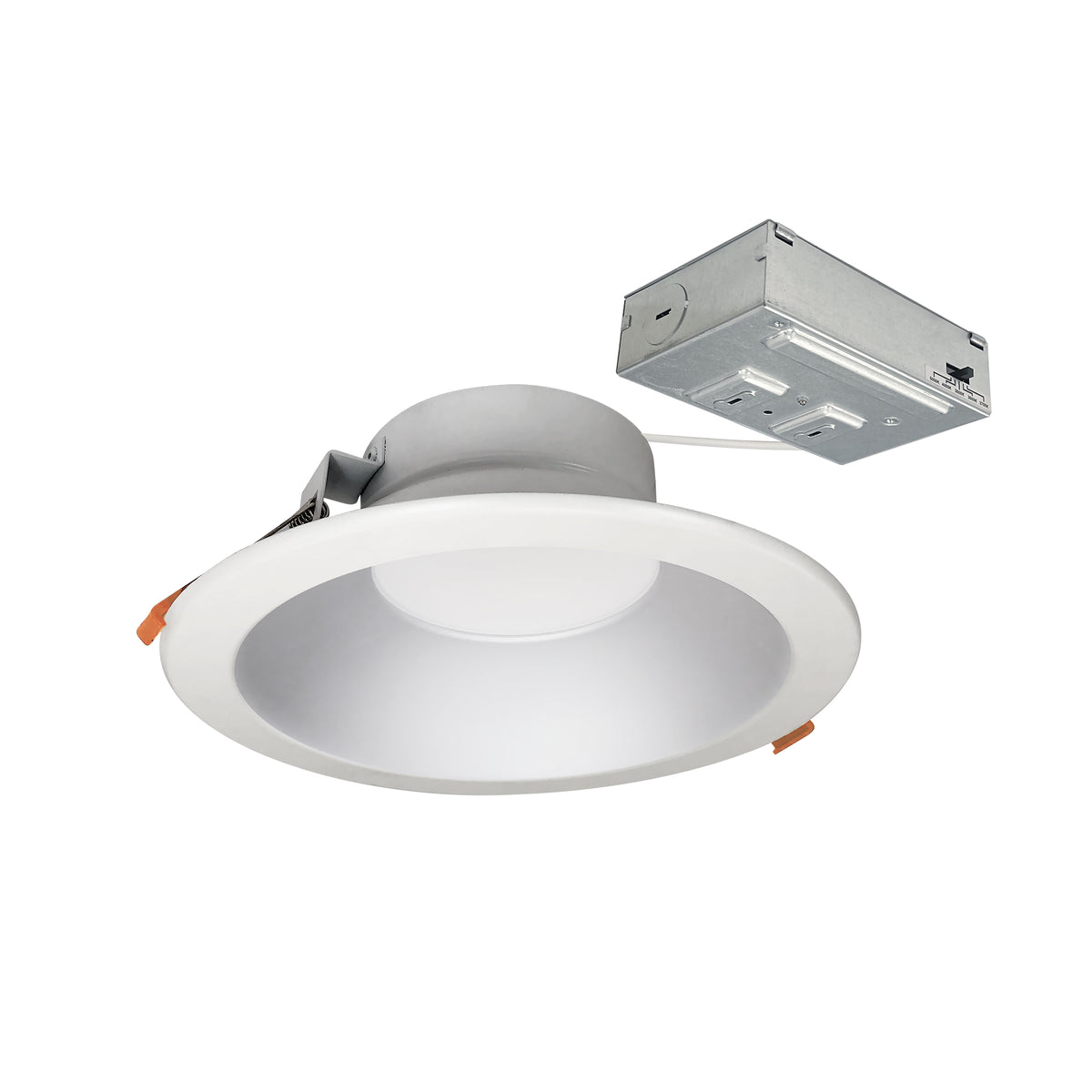

• NLTH-81TW-HZMPW: Haze Reflector / Matte Powder White Flange, 120V
• NLTH-81TW-HZMPWLE4: Haze Reflector / Matte Powder White Flange, 120-277V, Phase or 0-10V
• NLTH-81TW-MPW: Matte Powder White, 120V

Please note: Because this item is made to order or specially sourced, it is final sale.
