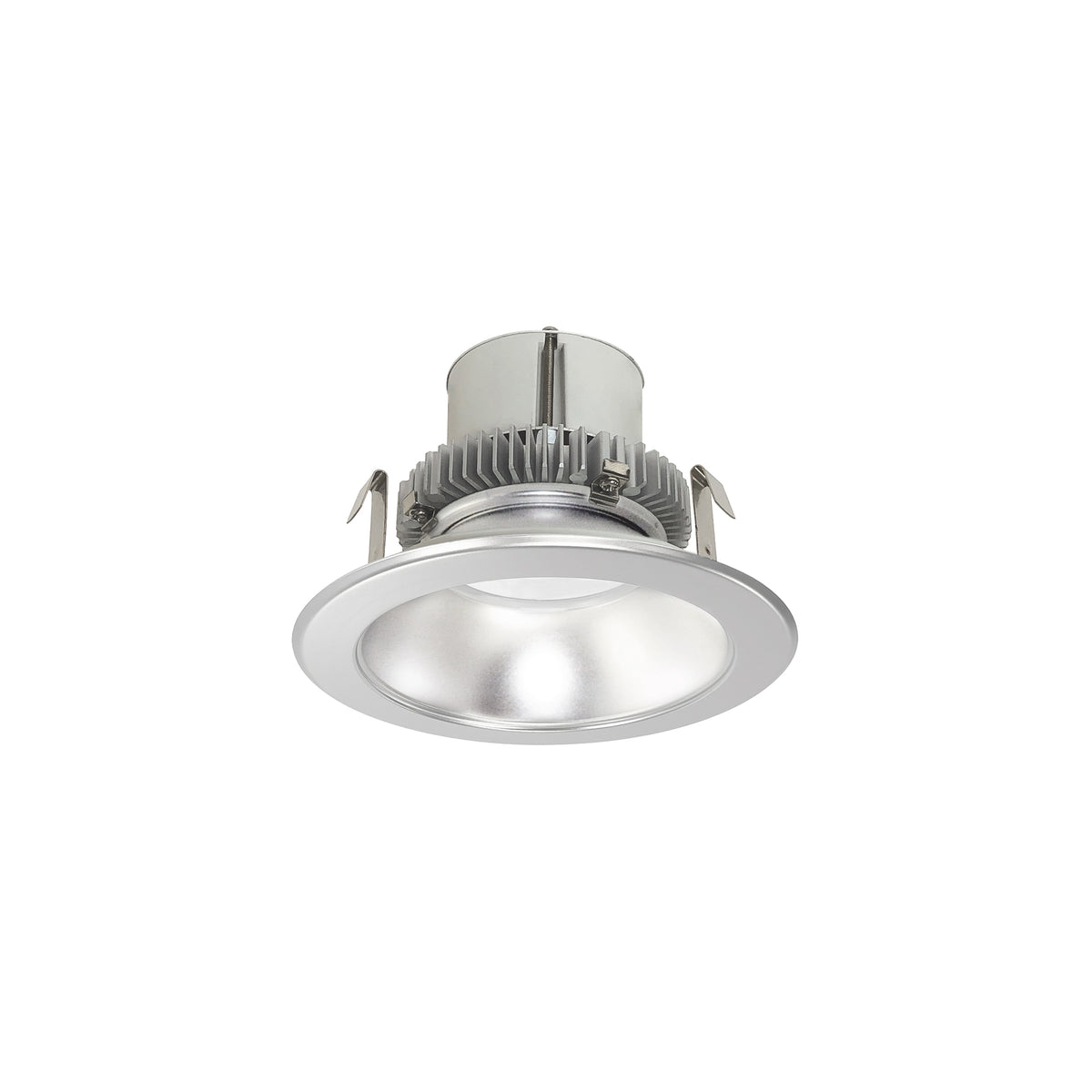

Nora Lighting NLCBC2-451 Series 4" Cobalt Click Round Retrofit Reflector

Upgrade an old 4" can to dimmable LED without cutting a new hole in the ceiling.

The Nora Lighting NLCBC2-451 Series is a 4" Cobalt Click Round Retrofit Reflector. The 4″ Cobalt Click LED retrofit series is cULus classified for use in existing IC or non-IC housings manufactured by Nora and others. The patented “Click” system allows the aluminum spun trim to be easily changed in the field, and spring mounting clips properly secure it to the LED module.

Spec sheet & downloads

Nora's spec sheet includes the dimension drawing and full technical details. Please check it (or share it with your electrician) before ordering.

• Specification sheet (PDF)
• Installation instructions (PDF)
• IES photometric file

What you need to buy

Retrofits an existing 4" recessed can (IC or non-IC, Nora or most other brands), using the existing bulb socket. No new housing needed.

Building new? Nora lists these compatible housings:

• NFBIC-4LMRATA – Fire Rated LED Housing
• NFBIC-4INCATA – Fire Rated Line Voltage Housing
• NFJB-R4 – Fire Rated IC Air-Tight Junction Box Housing (NLCBC2-451TW only)
• NHIC-4LMRAT – IC Air-Tight LED Housing
• NHICCP-4LMRAT – CCEA LED Housing
• NSIC-401QAT – IC Air-Tight Line Voltage Housing
• NS-401QAT – Non-IC Air-Tight Line Voltage Housing
• NHIC-4G24AT – IC Air-Tight GU24 Housing
• NHRIC-4LMRAT – IC Air-Tight LED Remodel Housing
• NSRIC-404QAT – IC Air-Tight Line Voltage Housing
• NSR-404QAT – Non-IC Air-Tight Line Voltage Housing

In the box: Medium Base Retrofit Adapter.

Sold separately:

• Accessories: NLCBC-4OR – 4″ Oversize Ring; NLCBC-4EYELID – 4″ Eyelid; NEPK-23LEDUNV – 23W Emergency LED Driver with Remote Test Switch (

Specifications

• Brand: Nora Lighting
• Model: NLCBC2-451 Series
• Type: LED retrofit downlight
• Size: 4"
• Light output: 1000lm / 12W / 750lm / 10W / 1000lm / 13.5W
• Color temperature: 2700K, 3000K or Selectable CCT (27K / 30K / 35K / 40K / 50K)
• Color rendering (CRI): 90+
• Input voltage: 120VAC / 120-277VAC
• Dimming: Triac or ELV / Phase or 0-10V (requires Nora LED dedicated housing with /4W suffix)
• Finishes: Black Reflector / Black Flange, Bronze Reflector / Bronze Flange, Haze Reflector / White Flange, Matte Powder White Reflector / Matte Powder White Flange, White Reflector / White Flange, Diffused Clear Reflector / White Flange or Haze Reflector / Matte Powder White Flange
• Dimensions: Varies by option; see the item list below
• Weight: 0.6–0.95 lb depending on option
• Included: Medium Base Retrofit Adapter
• Listing: cULus, rated for wet locations
• Certifications: California Title 24 (JA8) compliant
• Country of origin: China
• Nora item numbers: 16 options (listed below)

Features

• Available with Phase (120V) or 0-10V (120-277V) dimming
• Includes a medium base socket for easy retrofitting
• Dedicated CCT, Selectable CCT, or Comfort Dim (warm dim)
• Emergency options available
• 5-year limited warranty
• cULus classified for Wet Locations
• Certified to the high efficacy requirements of California Title 24 JA8-2025

Who this is not for

• Ceilings with no existing 4" recessed can (add a housing first, or choose a can-less downlight).

Why we carry it

We have curated lighting since 2009 and carry Nora because contractors trust it: clear specs, code-compliant housings and trims that fit what they say they fit. We list only options Nora has in stock and refresh stock every week, so the item number you order is the one that ships.

Frequently asked questions

Will the NLCBC2-451 Series fit my existing 4" recessed cans?

Yes, that is what it is made for. Nora designs it to retrofit existing 4" recessed housings, IC or non-IC, from Nora and most other brands. Remove the old trim and bulb, screw the included medium-base adapter into the socket, plug it into the module and push the spring clips up into the can. For new construction, Nora lists NFBIC-4LMRATA, NFBIC-4INCATA, NFJB-R4, NHIC-4LMRAT, NHICCP-4LMRAT or NSIC-401QAT as compatible housings.

What dimmer should I use with the NLCBC2-451 Series?

Nora rates it for Triac or ELV / Phase or 0-10V (requires Nora LED dedicated housing with /4W suffix) dimming. Use a dimmer listed for LED loads, and check the spec sheet for Nora's dimming details.

Which color temperature should I choose?

Color temperature guide (our advice): 2700K is warm and cozy, like a classic incandescent bulb; 3000K is a soft warm white that suits kitchens and living areas; 3500K is neutral; 4000K is a cool, crisp white for garages, offices and task areas; 5000K is daylight white.

Can the NLCBC2-451 Series go in a bathroom or outdoors?

It is listed for wet locations, so showers and covered outdoor ceilings are fine.

What comes in the box with the NLCBC2-451 Series?

Medium Base Retrofit Adapter. Sold separately: NLCBC-4OR, NLCBC-4EYELID and NEPK-23LEDUNV.

Is the NLCBC2-451 Series in stock, and can I order it for a project?

We only list options that Nora has ready to ship and update stock from their warehouse every week. Contractors and builders are welcome to order in project quantities; contact us for larger jobs.

Contractors & project orders

Electricians, builders and designers: order mixed finishes and color temperatures in project quantities. Contact us for larger jobs.

Shipping

Free shipping on orders over $100. In-stock items typically leave the warehouse in 2–3 business days.

Nora item numbers

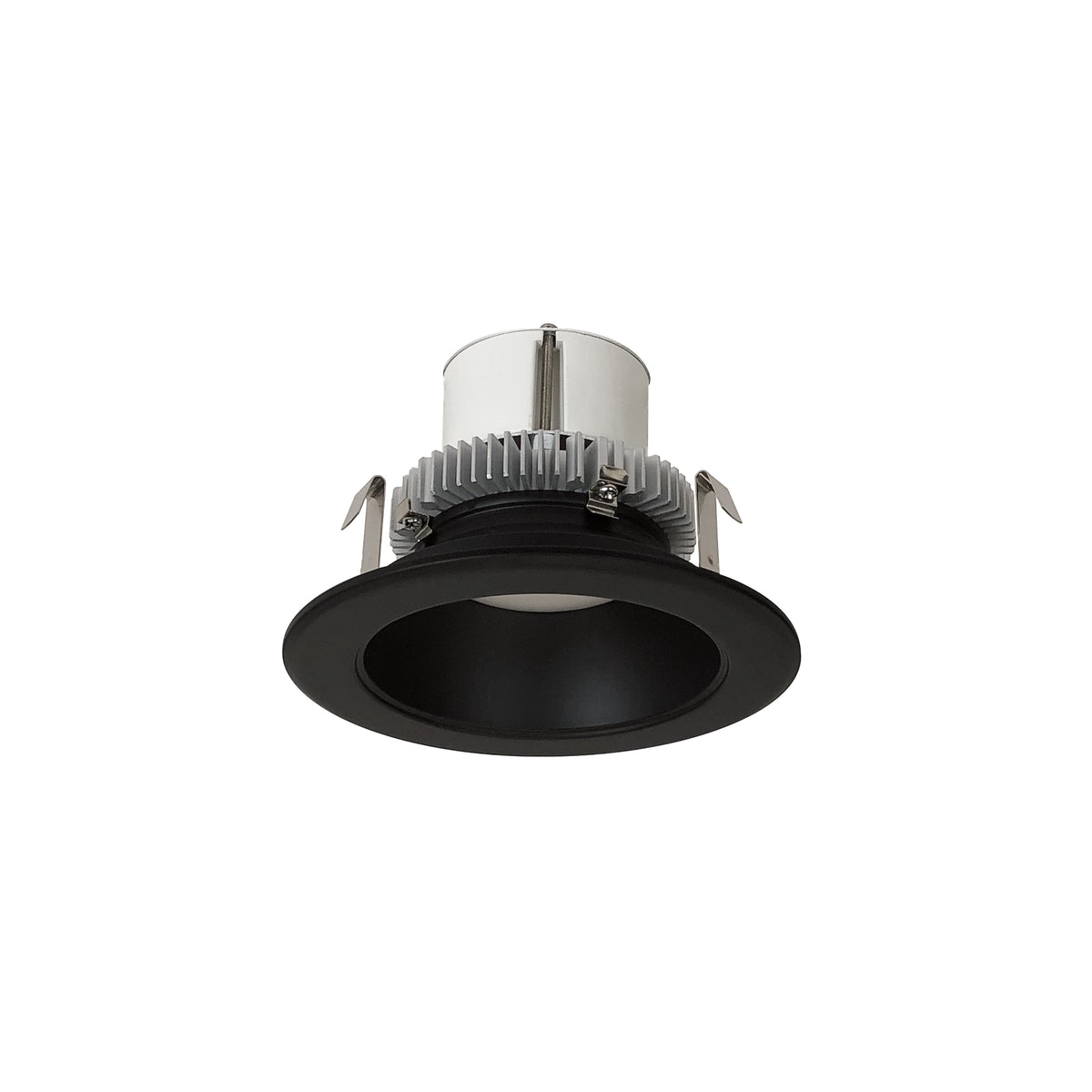

• NLCBC2-45127BB/10: Black Reflector / Black Flange, 2700K, 1000lm / 12W, 120V

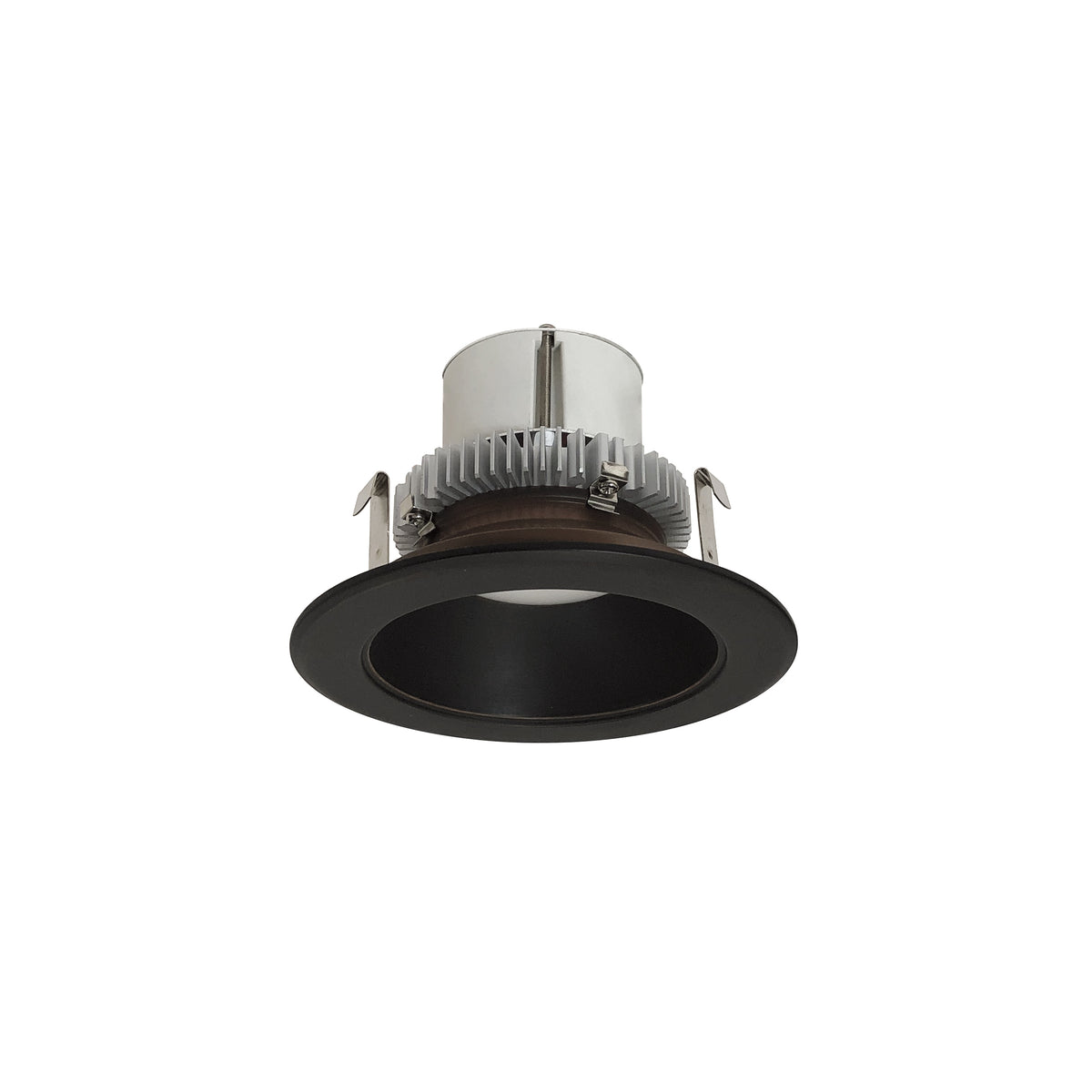

• NLCBC2-45127BZBZ/10: Bronze Reflector / Bronze Flange, 2700K, 1000lm / 12W, 120V

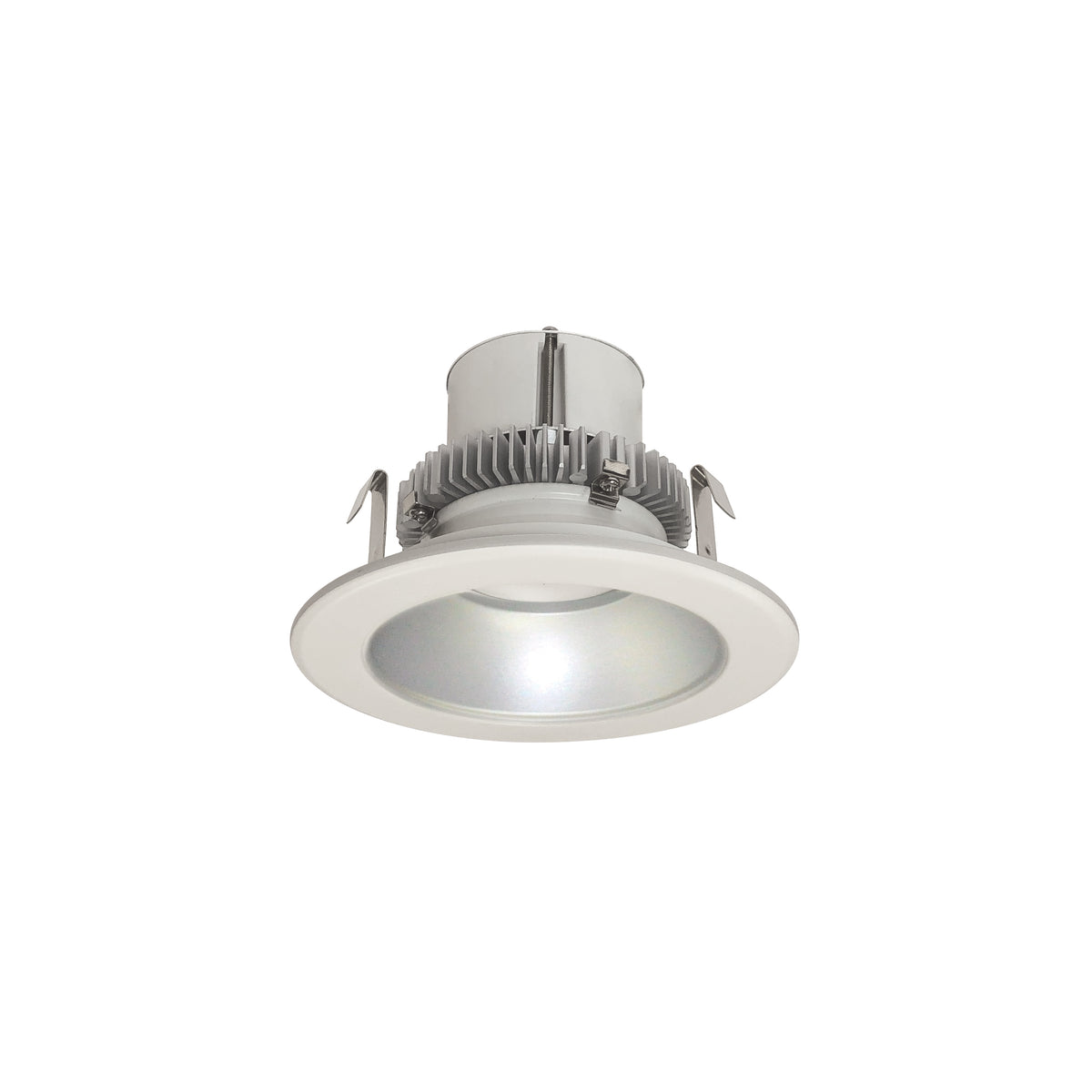

• NLCBC2-45127HZW/10: Haze Reflector / White Flange, 2700K, 1000lm / 12W, 120V

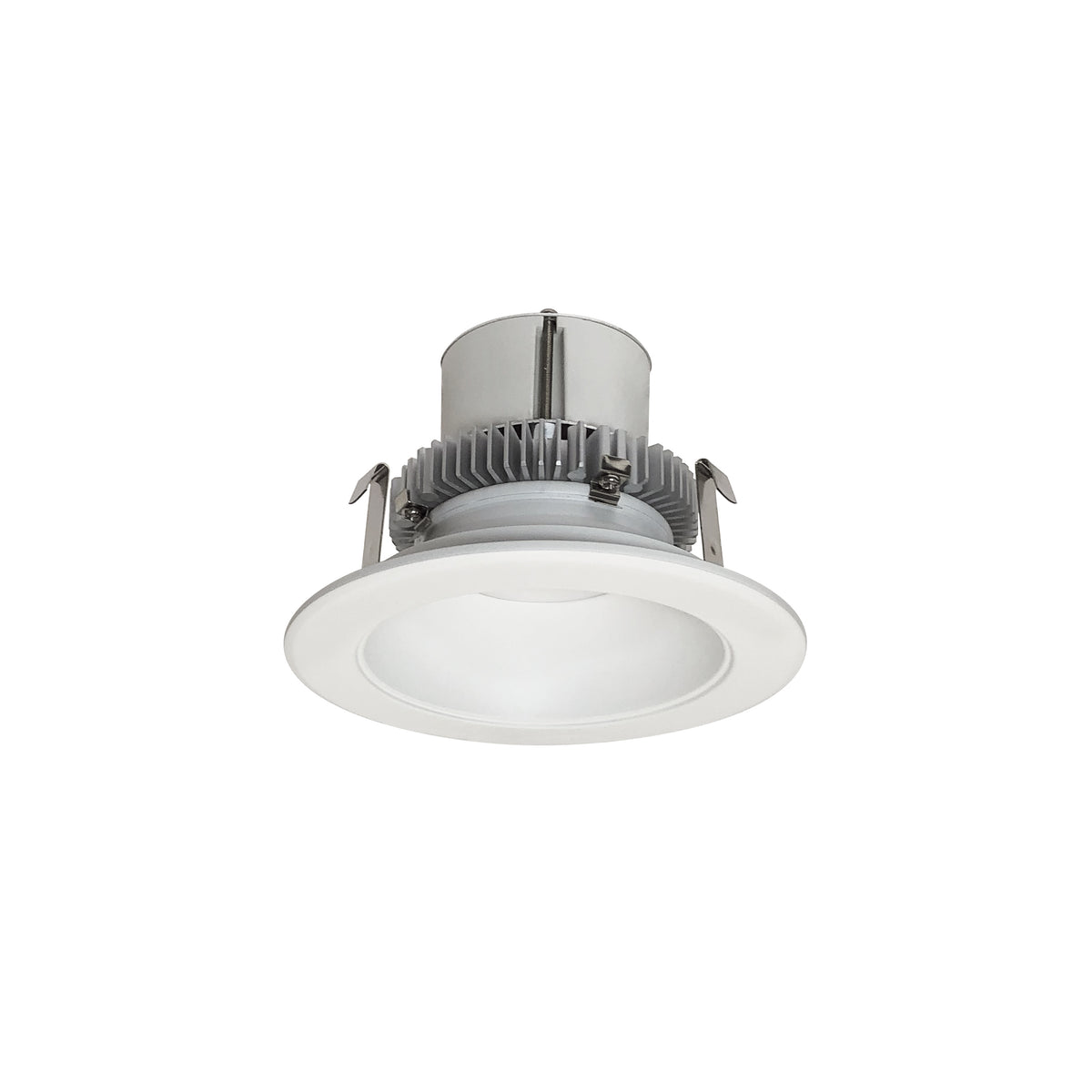

• NLCBC2-45127MPW/10: Matte Powder White Reflector / Matte Powder White Flange, 2700K, 1000lm / 12W, 120V

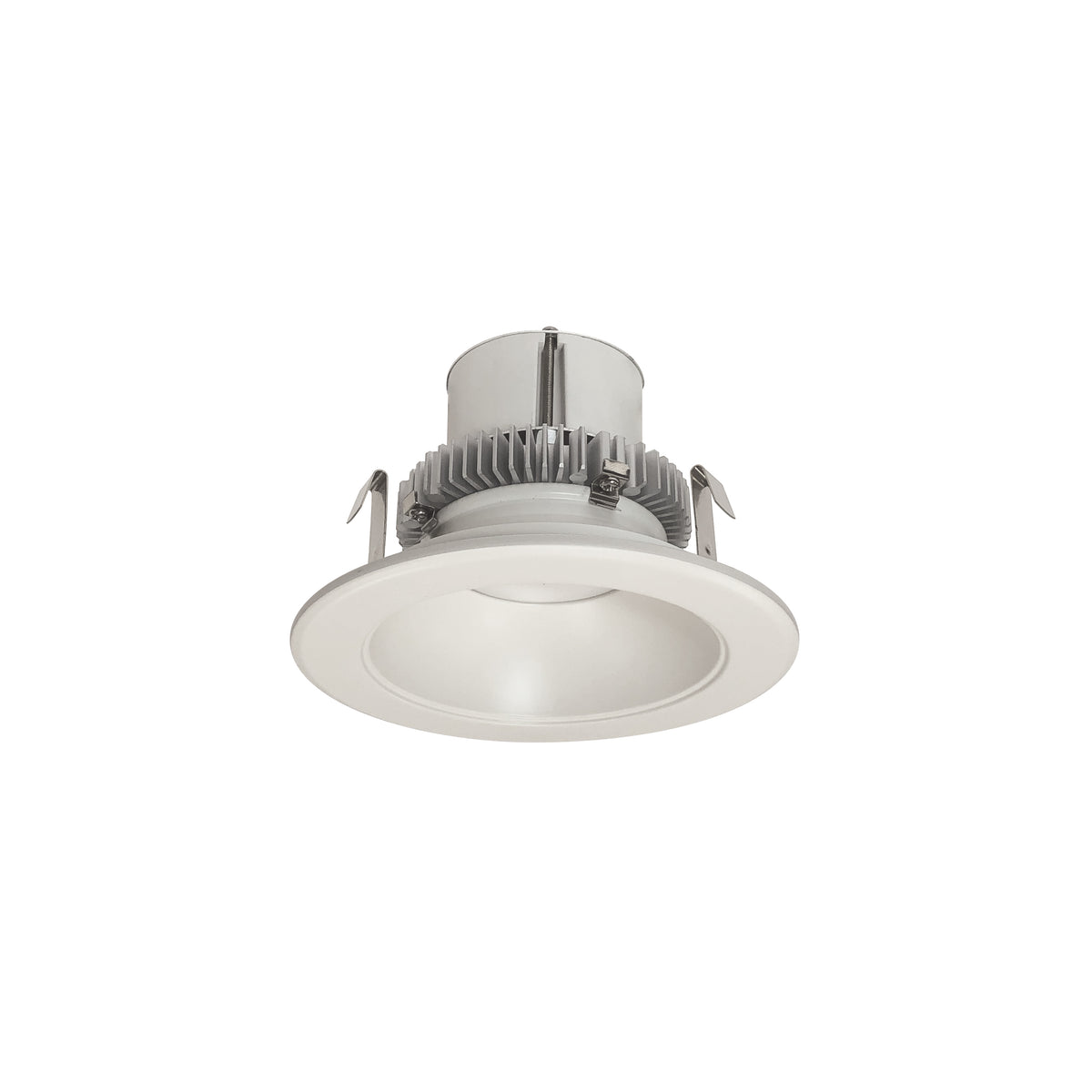

• NLCBC2-45127WW/10: White Reflector / White Flange, 2700K, 1000lm / 12W, 120V
• NLCBC2-45130BB/10: Black Reflector / Black Flange, 3000K, 1000lm / 12W, 120V
• NLCBC2-45130BZBZ/10: Bronze Reflector / Bronze Flange, 3000K, 1000lm / 12W, 120V

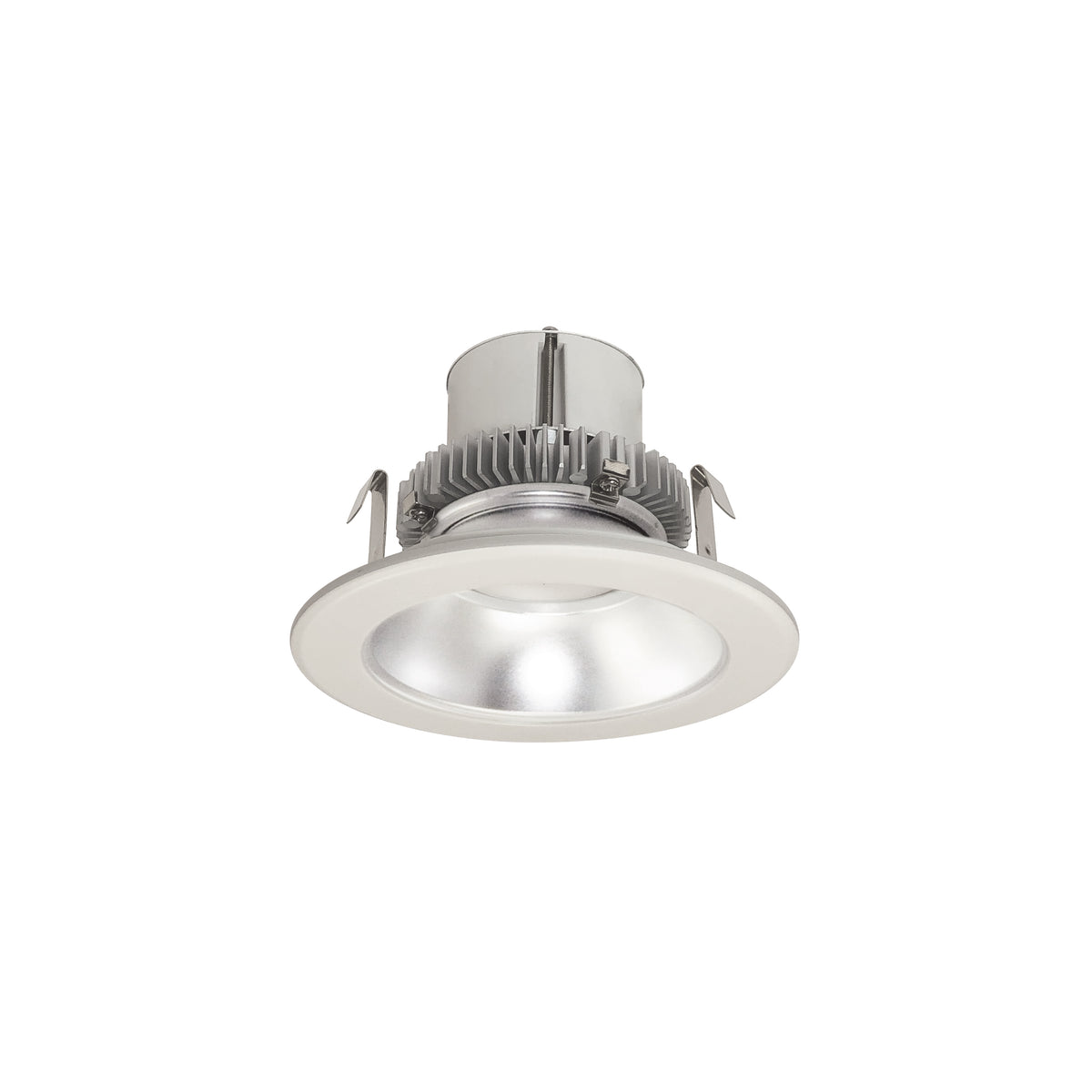

• NLCBC2-45130DW/10: Diffused Clear Reflector / White Flange, 3000K, 1000lm / 12W, 120V

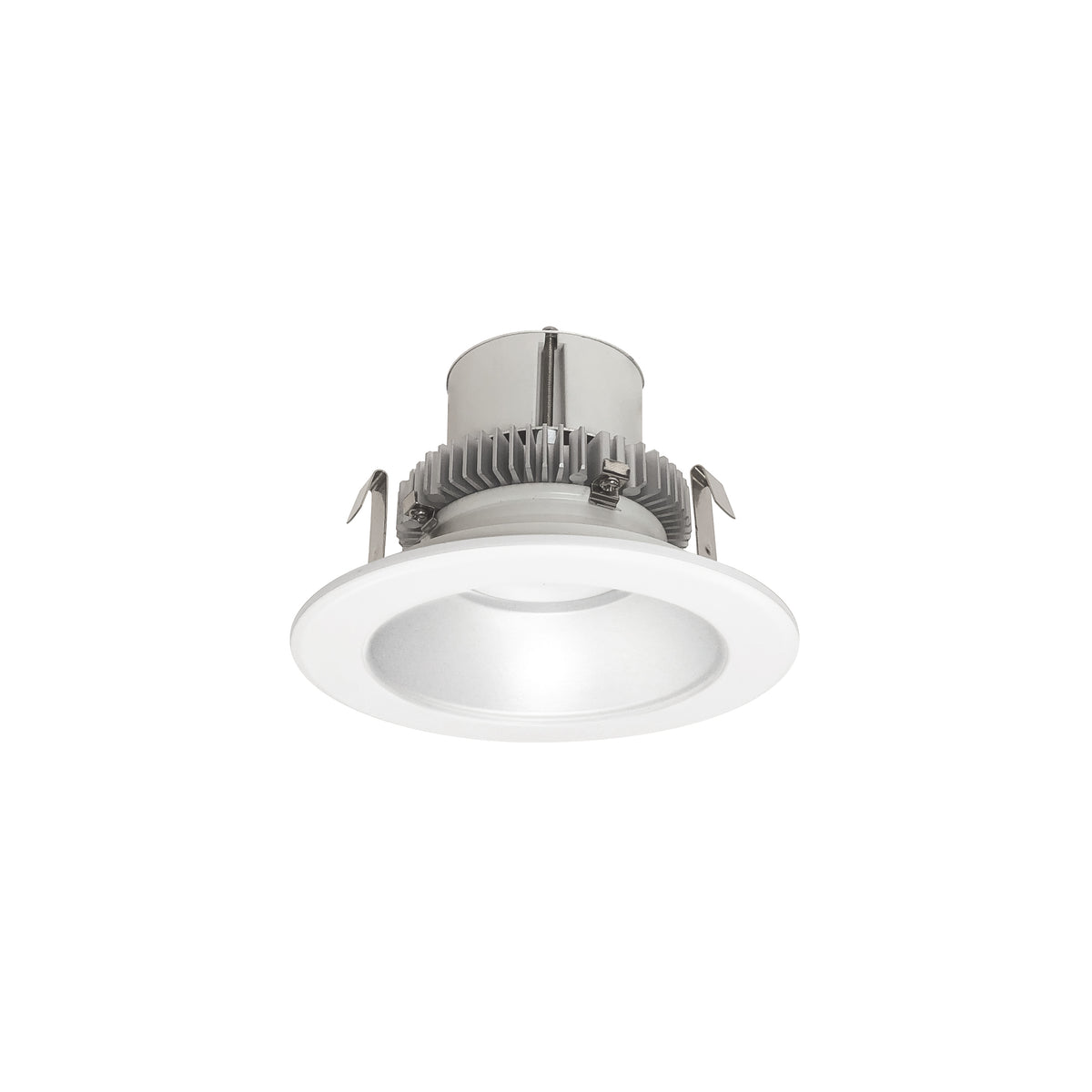

• NLCBC2-45130HZMPW/10: Haze Reflector / Matte Powder White Flange, 3000K, 1000lm / 12W, 120V
• NLCBC2-45130HZW/10: Haze Reflector / White Flange, 3000K, 1000lm / 12W, 120V
• NLCBC2-45130MPW/10: Matte Powder White Reflector / Matte Powder White Flange, 3000K, 1000lm / 12W, 120V
• NLCBC2-45130MPW/A: Matte Powder White Reflector / Matte Powder White Flange, 3000K, 750lm / 10W, 120V
• NLCBC2-45130WW/10: White Reflector / White Flange, 3000K, 1000lm / 12W, 120V
• NLCBC2-45130WW/10LE4: White Reflector / White Flange, 3000K, 1000lm / 12W, 120-277V, Phase or 0-10V

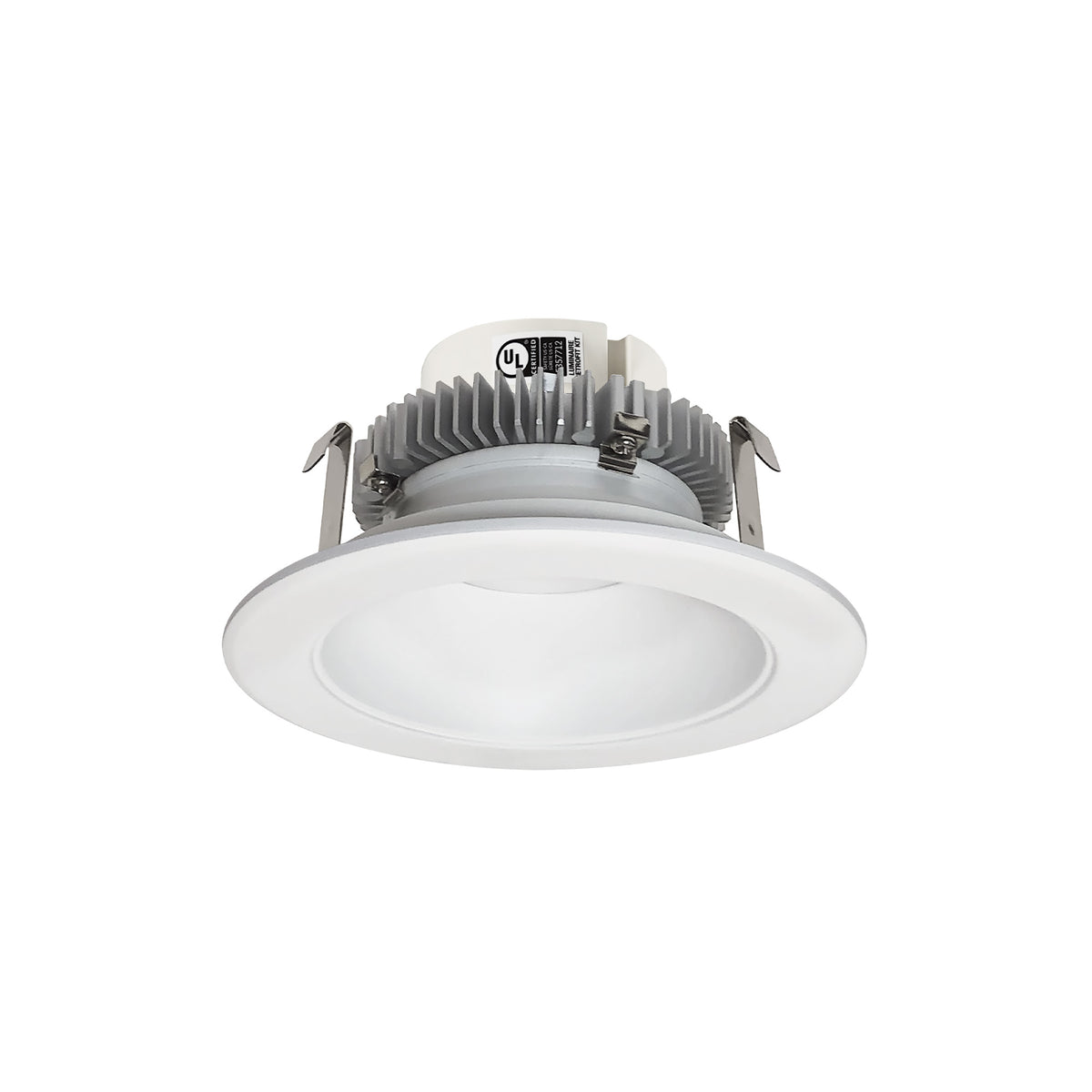

• NLCBC2-451TWMPW/10: Matte Powder White Reflector / Matte Powder White Flange, Selectable CCT, 1000lm / 13.5W, 120V

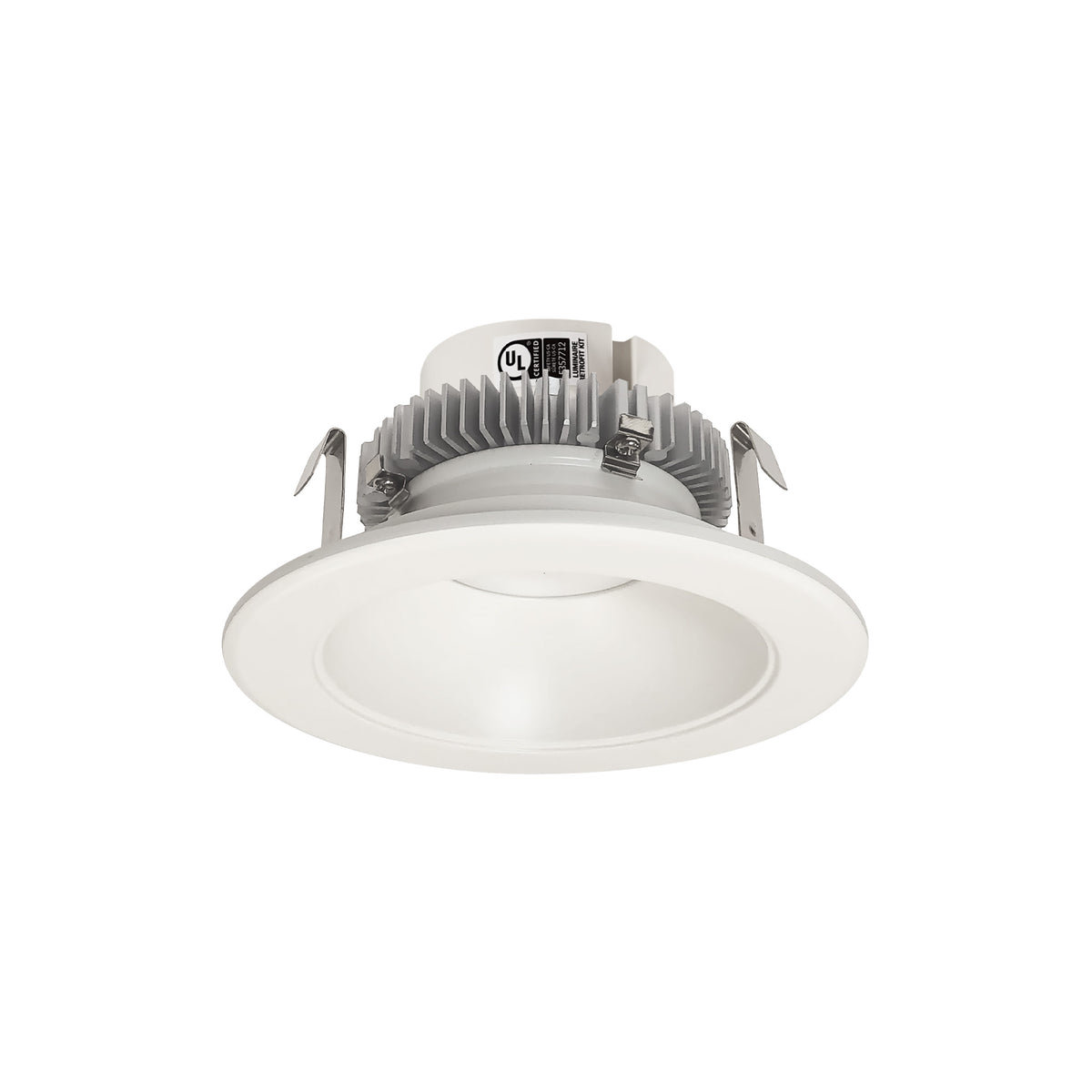

• NLCBC2-451TWWW/10: White Reflector / White Flange, Selectable CCT, 1000lm / 13.5W, 120V

Please note: Because this item is made to order or specially sourced, it is final sale.
