Koncept UCX Pro LED Under-Cabinet Light

Award-winning Koncept design by Kenneth Ng and Edmund Ng: tilts 60° forward or back.

The Koncept UCX Pro LED Under-Cabinet Light comes from Koncept, the Southern California lighting company (founded 2002) behind the Z-Bar. Rated at up to 1672 lumens with 90+ CRI. Choose cabinet width on this page.

Frequently asked questions

How bright is the Koncept UCX Pro, and what color is the light?

Koncept rates it at 760 to 1672 lumens (up to 246 footcandles on the work surface). Color temperature: 2,700-5,000 K. Color rendering 90+ CRI, so colors look true.

Has the Koncept UCX Pro won design awards?

Yes. According to Koncept, it received the Best of NeoCon Gold 2015 and BUILDINGS Product Innovations 2015 Favorite.

What warranty comes with the Koncept UCX Pro?

Koncept gives a 5-year limited warranty. We sell it new as an authorized dealer and help with any claim.

Specifications

• Brand: Koncept (Southern California, founded 2002)
• Collection: UCX Pro
• Designer: Kenneth Ng and Edmund Ng
• Type: Under-Cabinet Light
• Cabinet Width options: For 19" Cabinets, For 27" Cabinets, For 37" Cabinets
• Light output: 760–1672 lumens depending on option
• Max brightness: 246 footcandles (18" from the surface, per Koncept)
• Color temperature: 2,700-5,000 K
• Color rendering (CRI): 90+
• Power use: 10.5–22.5 W depending on option
• Voltage: 100-240 V
• Dimming: Built-in touch dimming
• LED life: 50,000 hours

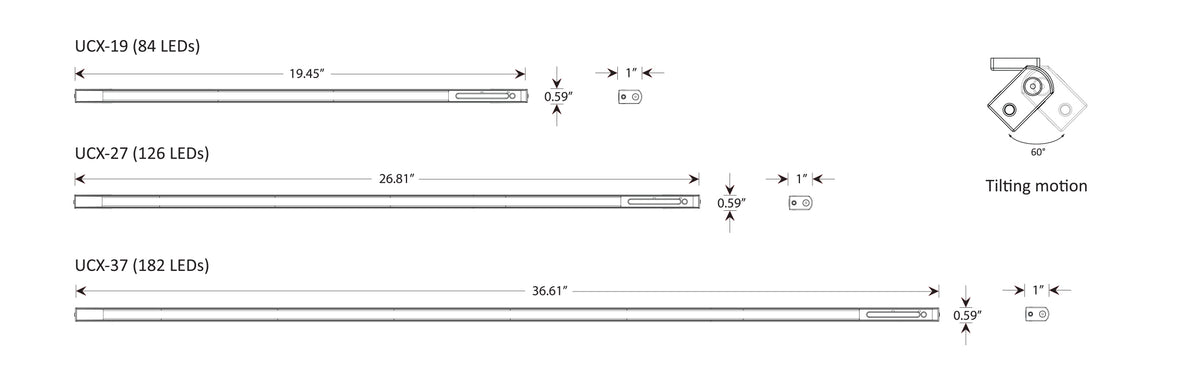

• Dimensions: For 19" Cabinets: L 19.5" × W 1" × H 0.6"; For 27" Cabinets: L 26.8" × W 1" × H 0.6"; For 37" Cabinets: L 36.6" × W 1" × H 0.6"
• Weight: 0.41–0.9 lb depending on option
• Materials: Aluminum, plastic
• Safety listing: UL/cUL
• Title 24: Title 24 compliant (per Koncept)
• Awards: Best of NeoCon Gold 2015; BUILDINGS Product Innovations 2015 Favorite
• Warranty: 5-year limited warranty from Koncept
• Made in: Taiwan
• Koncept item numbers: 3 options (listed at the end of this page)

Features

• Tilts 60° forward or back
• Mounts with magnets or screws to wood or metal

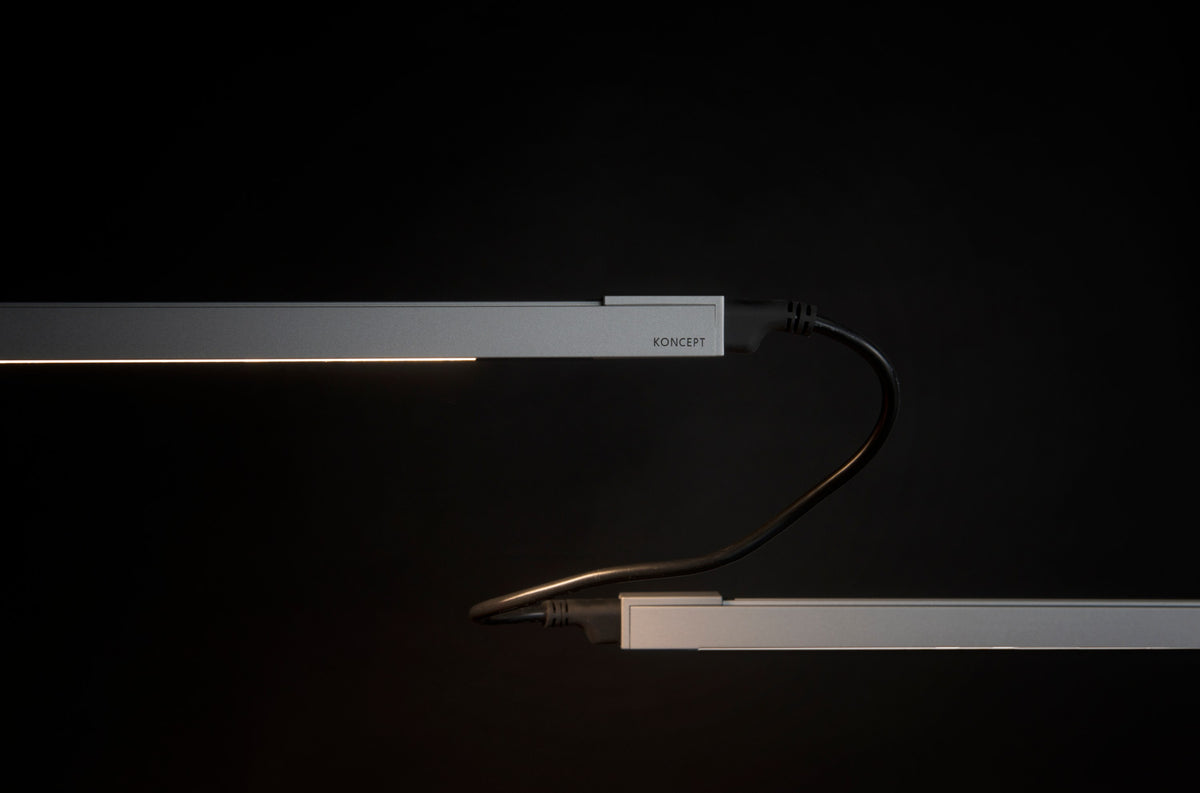

• Daisy-chain several units to one outlet
• Touch strip for dimming, warm/cool and on/off

Best for

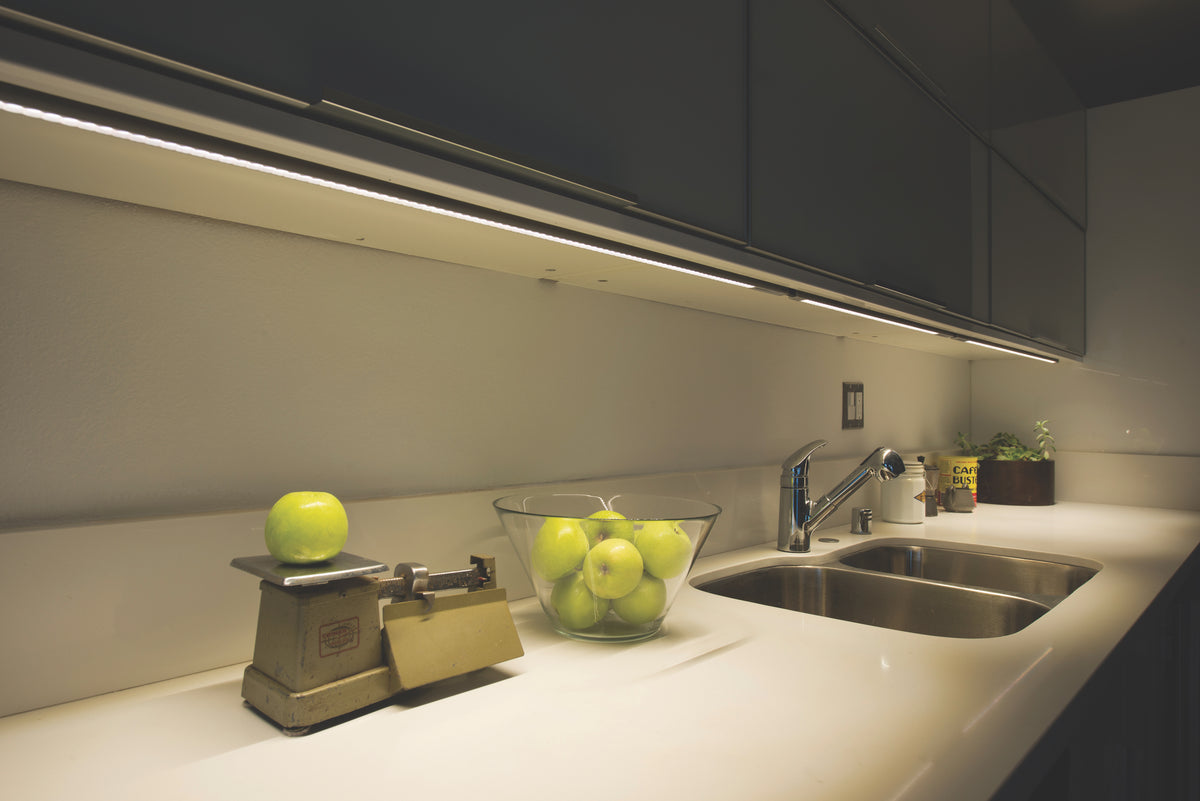

Kitchens, workbenches, shelving and office overhead cabinets.

Why we carry it

We have curated design-led lighting since 2009 and are an authorized Koncept dealer. Koncept designs its LED lights in California and is known for award-winning task lighting used in offices, libraries and homes. We list every UCX Pro option from Koncept's 2026 price list with its exact item number, spec sheet and live stock status.

Care

Our advice: switch off, then dust with a soft, dry microfiber cloth. Avoid solvents and abrasive cleaners on painted aluminum. The integrated LEDs never need bulb changes. Koncept does not publish separate care instructions.

Trade & project orders

Designers, architects, offices and hospitality buyers: we quote project quantities and mixed finishes. Koncept also offers custom finishes, color temperatures and sizes on many models (extra lead time). Send us your item numbers.

Shipping

In stock at Koncept; orders typically leave within 2–3 business days. Ships via UPS or FedEx from the United States. Free shipping on orders over $100.

Koncept item numbers

Every option on this page by its Koncept part number, grouped by cabinet width. Choose the matching options above to order one.

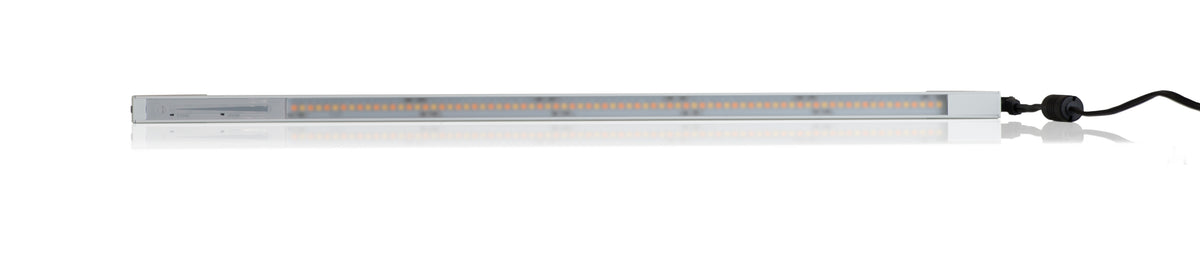

• For 19" Cabinets: UCX-19-SIL-1PK
• For 27" Cabinets: UCX-27-SIL-1PK
• For 37" Cabinets: UCX-37-SIL-1PK

Please note: Because this item is made to order or specially sourced, it is final sale.
