B.lux Frame Small Outdoor low-level luminaire - Mario Ruiz Design

The B.lux Frame Small outdoor low-level luminaire by Mario Ruiz, made to order in Spain with 3 finish options.

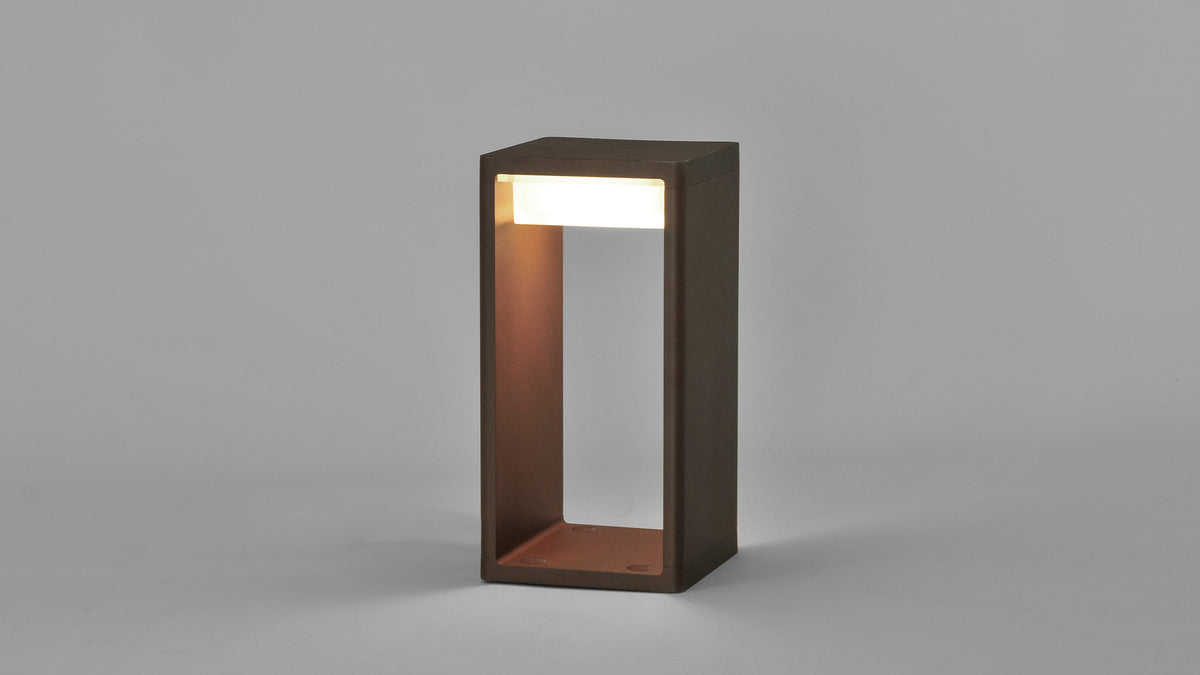

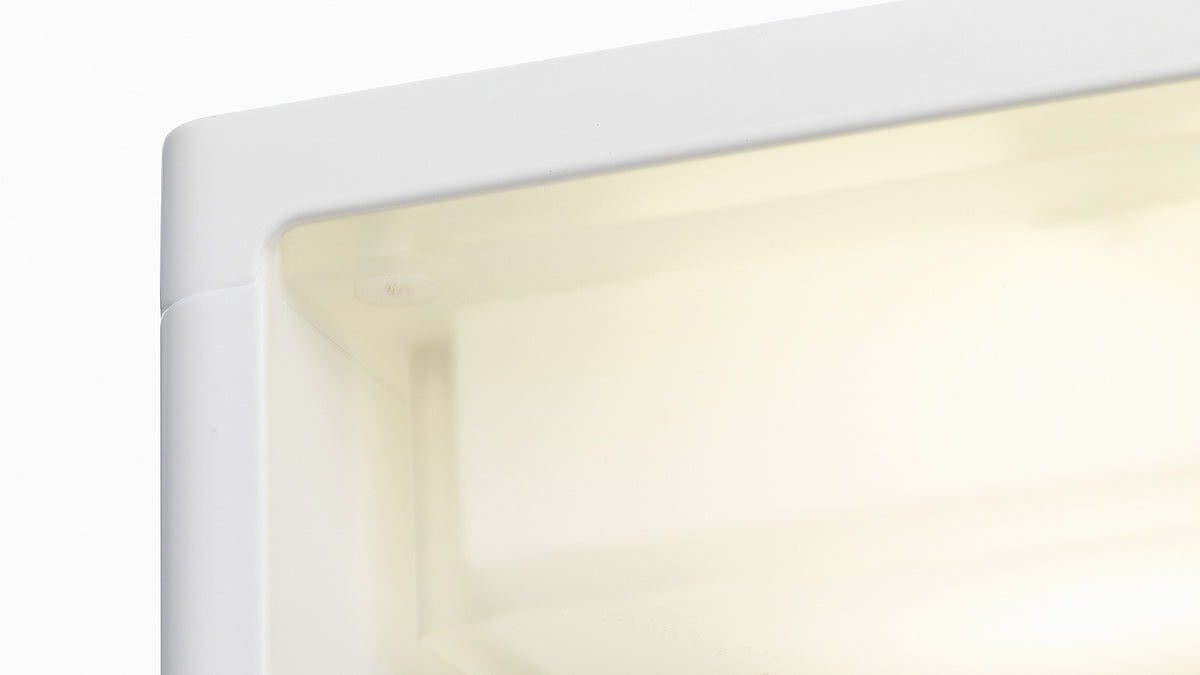

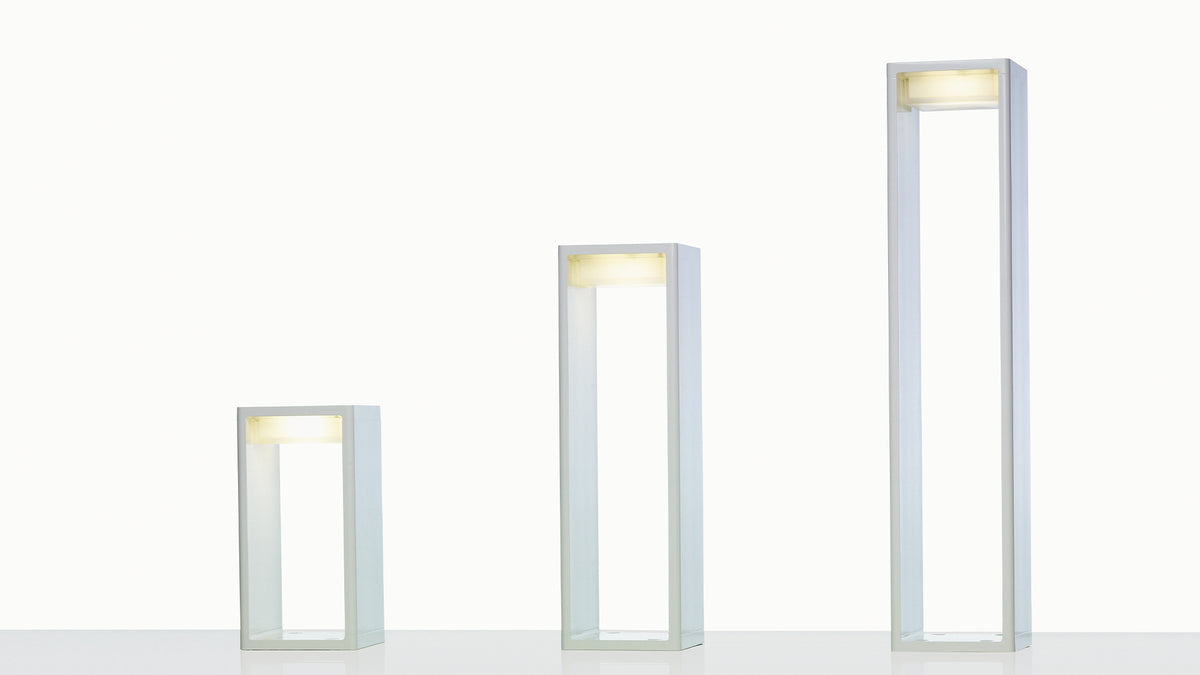

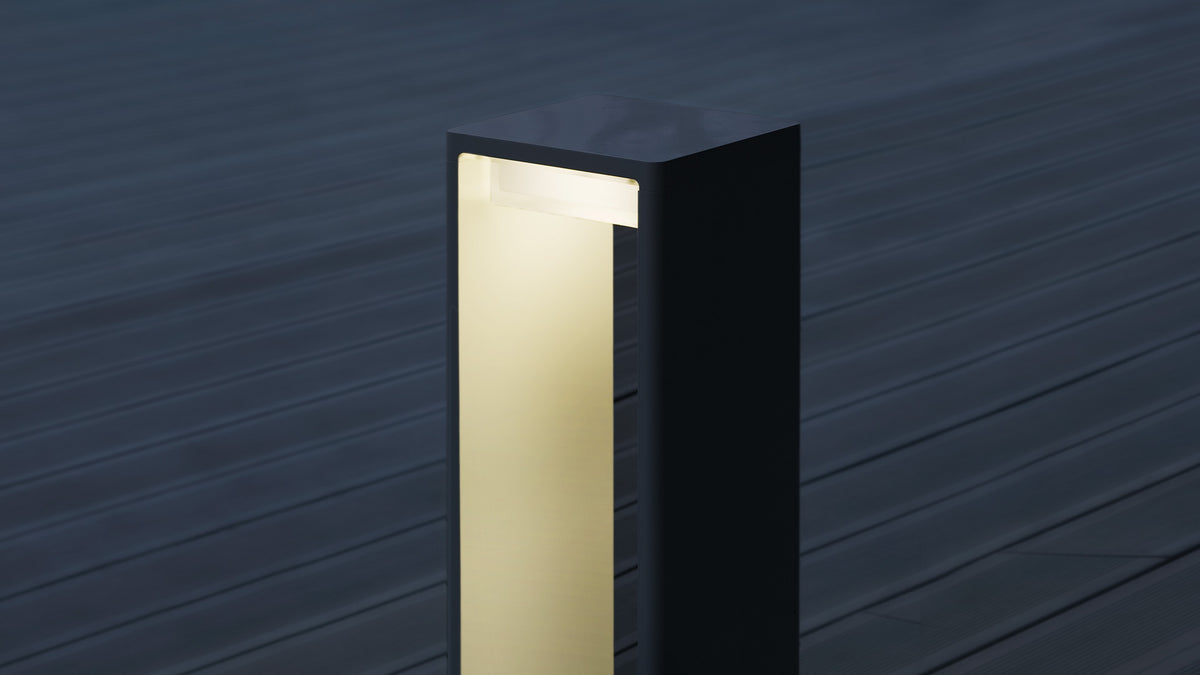

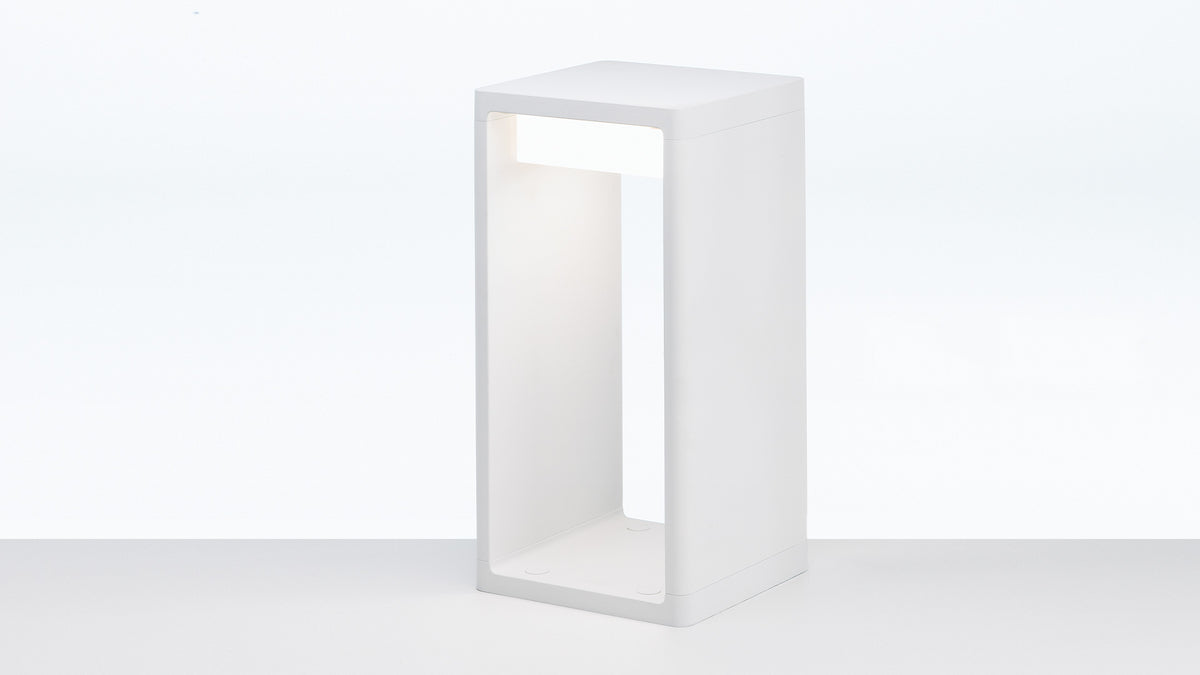

An outdoor low-level feature luminaire in the shape of a hollow rectangular prism with rounded edges. The structure is made from aluminium and the diffuser from pressed glass. It intensely illuminates the interior hollow and softly, asymmetrically lights the surrounding area. Frame is available in three sizes: S, M and L. Finishes: satin white, forged grey and corten. The Frame Small is the model listed here from B.lux's Frame range. B.lux makes each piece to order in Spain.

Frequently asked questions

How big is the Frame Small?

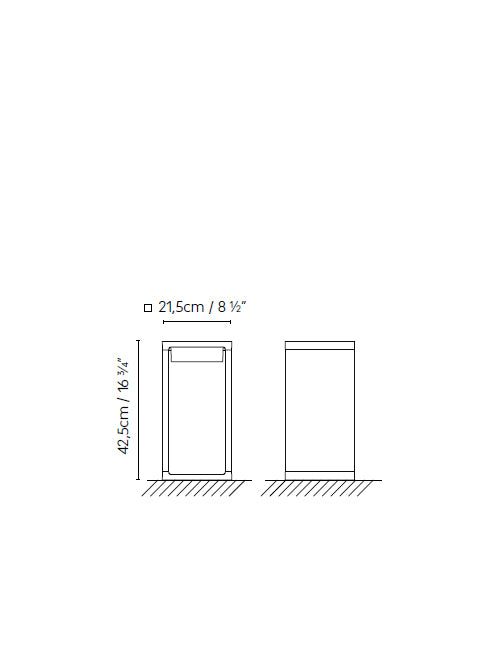

The Frame Small measures 8.5 in wide, 16.75 in tall.

Which finish options are there?

Finish: White, Grey, Corten. Each combination in the menus has its own B.lux item number and is made to order.

What light source does it use, and is it dimmable?

2 x 2G7 Fluo. sources, 7 W each; light source not included. B.lux lists CRI ≥90. Not listed as dimmable by B.lux. Please ask us before planning it for a dimmer.

How long does delivery take?

Each outdoor low-level luminaire is made to order in Spain. B.lux lists a lead time of about 60 days, and we ship it to you from there by parcel.

Do the photos show my exact finish?

The photos are B.lux studio and room shots, so treat them as examples. Use the finish names on this page to confirm your choice.

Does the Frame Small come in other sizes?

B.lux lists the Frame Small as a single model, so there is only one size to choose.

Specifications

• Brand: B.lux (Spain)
• Collection: Frame
• Model: Frame Small outdoor low-level luminaire
• Designer: Mario Ruiz
• Type: Outdoor low-level luminaire; low-level, asymmetric light
• Finish: White, Grey, Corten
• Size: 8.5 in wide, 16.75 in tall
• Material: Aluminium, Pressed glass difusser
• Weight: 11.25 lb
• Light source: 2 x 2G7 Fluo. sources, 7 W each; light source not included
• Light output: CRI ≥90
• Voltage / listing: 120V, UL
• Dimming: Not listed as dimmable by B.lux
• Lead time: Made to order in Spain, about 60 days
• Package size: 23.22 x 9.84 x 9.84 in (first carton 11.25 lb) (parcel)
• Made in: Spain
• B.lux item number: 677220U to 677241U (list at the end of this page)

Features

• 3 options: White, Grey, Corten
• 8.5 in wide, 16.75 in tall
• CRI ≥90
• Not listed as dimmable
• UL listed, 120V

Spec sheet & drawings

• Spec sheet (PDF) from B.lux
• Spec sheet (PDF) from B.lux
• Spec sheet (PDF) from B.lux
• 2D drawing (PDF) from B.lux
• 2D drawing (PDF) from B.lux
• 2D drawing (PDF) from B.lux
• Assembly instructions (PDF) from B.lux
• Assembly instructions (PDF) from B.lux
• Assembly instructions (PDF) from B.lux
• 3D model (3DS) from B.lux
• 3D model (3DS) from B.lux
• 3D model (3DS) from B.lux

Best for

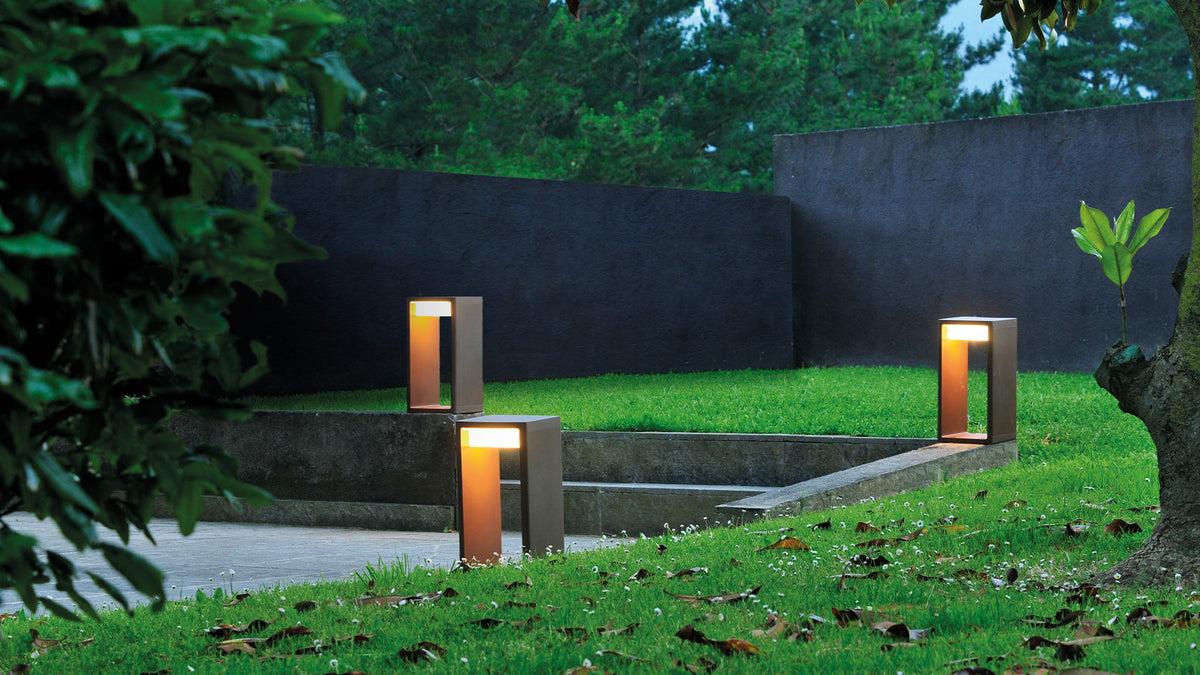

Terraces, gardens, entrances and hospitality spaces, as in B.lux's own room photos.

Who this is not for

• Anyone who needs it within days: it is made to order with a lead time of about 60 days.
• Anyone who needs a dimmable fixture: B.lux does not list this version as dimmable.
• Anyone who needs the bulb in the box: it is not included.
• Anyone who needs to see their exact option in a photo: the photos show example versions.

About the designer

Mario Ruiz studied industrial design at the Elisava school in Barcelona. Since 2003 his work has covered a wide range of projects, with lighting a standout (per B.lux).

Why we carry it

B.lux designs and manufactures in Spain and works with outside designers such as Mario Ruiz. We are an authorized seller and list every B.lux item number.

Care

B.lux does not publish care instructions for this model. Our advice; switch it off and let it cool, then wipe with a soft, dry or slightly damp cloth, and avoid abrasive cleaners.

Trade & project orders

Designers, hotels, restaurants and project buyers; ask us about quantities and mixed finishes and sizes.

Delivery

Made to order in Spain with a lead time of about 60 days, shipped to you by parcel. Free shipping on orders over $100.

B.lux item numbers

Our SKU is the B.lux item number with the prefix MD-BX-. Item numbers: 677220U: White; 677226U: Grey; 677241U: Corten.

Please note: Because this item is made to order or specially sourced, it is final sale.
