B.lux Bimu SV 100 Linear pendant lamp - María Güell & Carrasquet Design

The B.lux Bimu SV 100 linear pendant lamp by María Güell & Carrasquet, made to order in Spain with 3 finish options.

Bimu SV is a linear suspended luminaire, adjustable in height from floor to ceiling via a simple cable system on which it slides. The ceiling attachment includes a metal retainer, while the base on the floor rests by gravity on this retainer. The canopy can be installed for power supply from the ceiling or from the floor. Available in matte black, matte white and matte black-orange. The Bimu SV 100 is the model listed here from B.lux's Bimu SV range. B.lux makes each piece to order in Spain.

Frequently asked questions

How big is the Bimu SV 100?

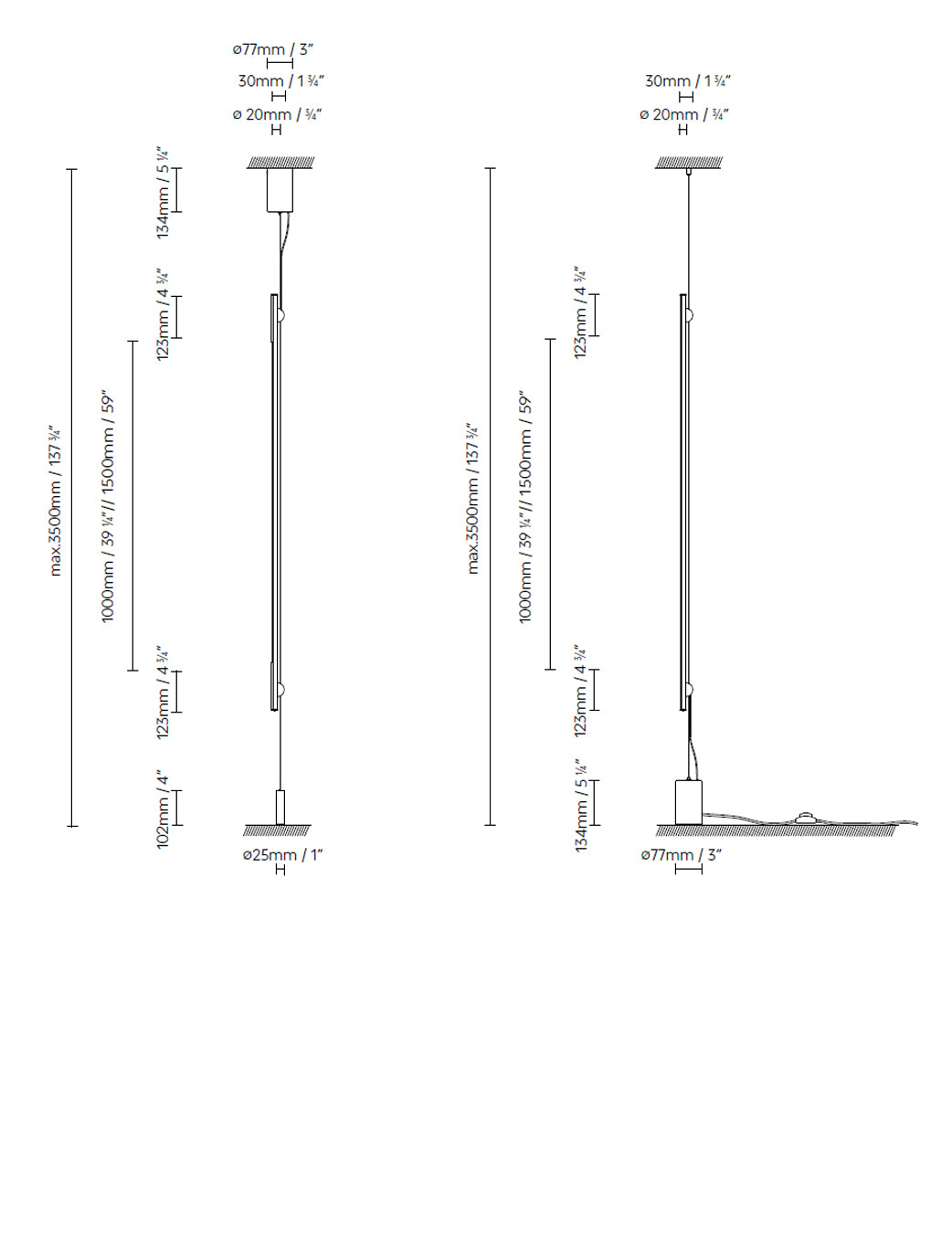

The Bimu SV 100 measures 48.75 x 1 x 1 in (length x width x height). The suspension allows a maximum hang height of 137.75 inches.

Which finish options are there?

Finish: Black, Black / Orange, White. Each combination in the menus has its own B.lux item number and is made to order.

What light source does it use, and is it dimmable?

1 x LED source, 15 W; light source included. B.lux lists 1679 lm, 2700 K, CRI ≥90. Not listed as dimmable by B.lux. Please ask us before planning it for a dimmer.

How long does delivery take?

Each linear pendant lamp is made to order in Spain. B.lux lists a lead time of about 60 days, and we ship it to you from there by parcel.

Do the photos show my exact finish?

The photos are B.lux studio and room shots, so treat them as examples. Use the finish names on this page to confirm your choice.

Does the Bimu SV 100 come in other sizes?

B.lux lists the Bimu SV 100 as a single model, so there is only one size to choose.

Specifications

• Brand: B.lux (Spain)
• Collection: Bimu SV
• Model: Bimu SV 100 linear pendant lamp
• Designer: María Güell & Carrasquet
• Type: Linear pendant lamp; direct light, linear
• Finish: Black, Black / Orange, White
• Size: 48.75 x 1 x 1 in (length x width x height)
• Maximum hang height: 137.75 in
• Material: Metal
• Light source: 1 x LED source, 15 W; light source included
• Light output: 1679 lm, 2700 K, CRI ≥90
• Voltage / listing: 120V, UL
• Dimming: Not listed as dimmable by B.lux
• Lead time: Made to order in Spain, about 60 days
• Made in: Spain
• B.lux item number: 773600U to 773602U (list at the end of this page)

Features

• 3 options: Black, Black / Orange, White
• 48.75 x 1 x 1 in
• 1679 lm, 2700 K, CRI ≥90
• Not listed as dimmable
• UL listed, 120V

Spec sheet & drawings

• 2D drawing (PDF) from B.lux
• Assembly instructions (PDF) from B.lux
• Photometry file (LDT) from B.lux

Best for

Dining tables, kitchen islands, entries, stairwells and reception areas, as in B.lux's own room photos.

Who this is not for

• Anyone who needs it within days: it is made to order with a lead time of about 60 days.
• Anyone who needs a dimmable fixture: B.lux does not list this version as dimmable.
• Anyone who wants to choose their own light source: it comes with the light source listed above.
• Anyone who needs to see their exact option in a photo: the photos show example versions.

About the designer

La Invisible Studio was founded in 2002 by Maria Güell Ordis and consolidated in Barcelona in 2004 as a space for experimenting with light (per B.lux).

Why we carry it

B.lux designs and manufactures in Spain and works with outside designers such as María Güell & Carrasquet. We are an authorized seller and list every B.lux item number.

Care

B.lux does not publish care instructions for this model. Our advice; switch it off and let it cool, then wipe with a soft, dry or slightly damp cloth, and avoid abrasive cleaners.

Trade & project orders

Designers, hotels, restaurants and project buyers; ask us about quantities and mixed finishes and sizes.

Delivery

Made to order in Spain with a lead time of about 60 days, shipped to you by parcel. Free shipping on orders over $100.

B.lux item numbers

Our SKU is the B.lux item number with the prefix MD-BX-. Item numbers: 773600U: Black; 773601U: Black / Orange; 773602U: White.

Please note: Because this item is made to order or specially sourced, it is final sale.
