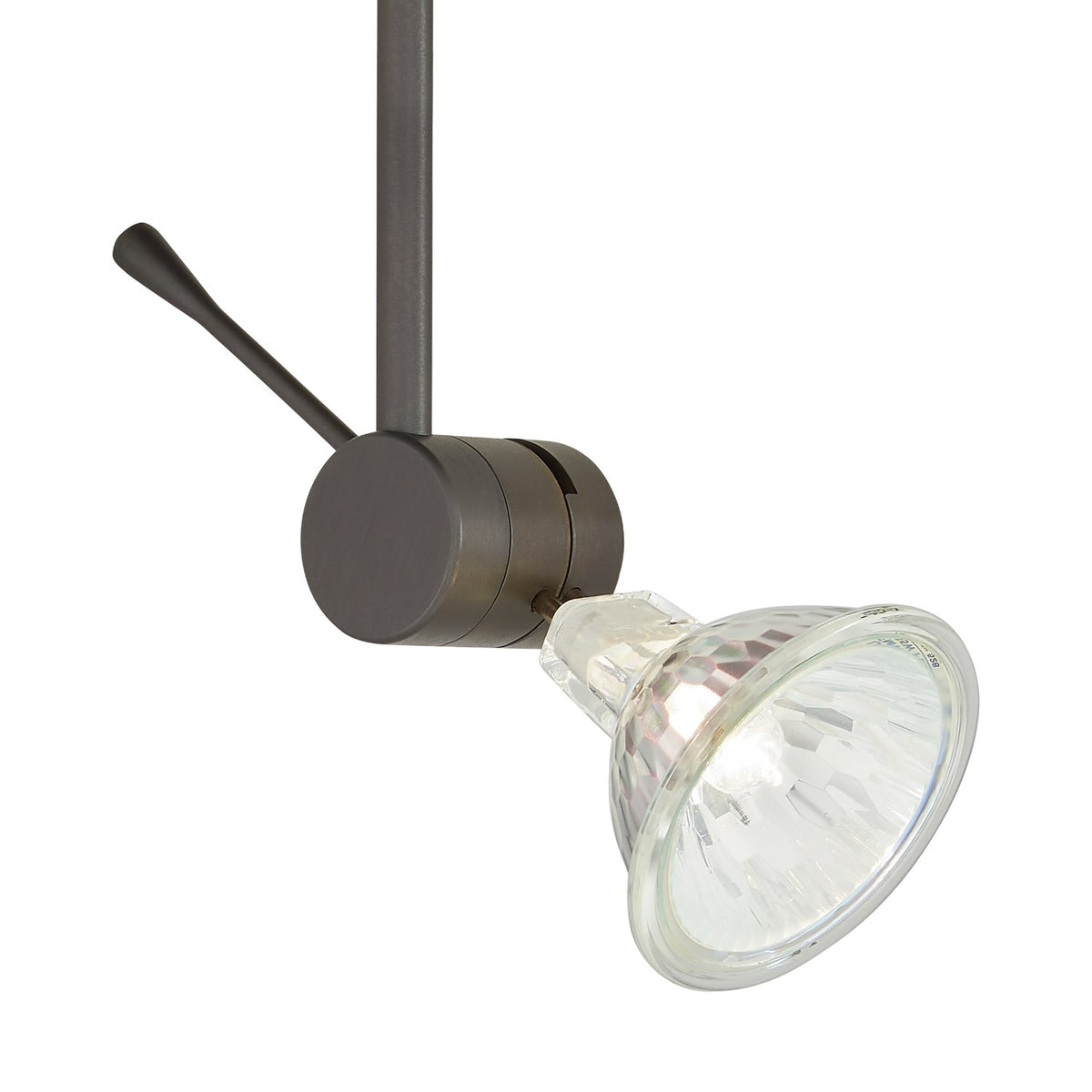

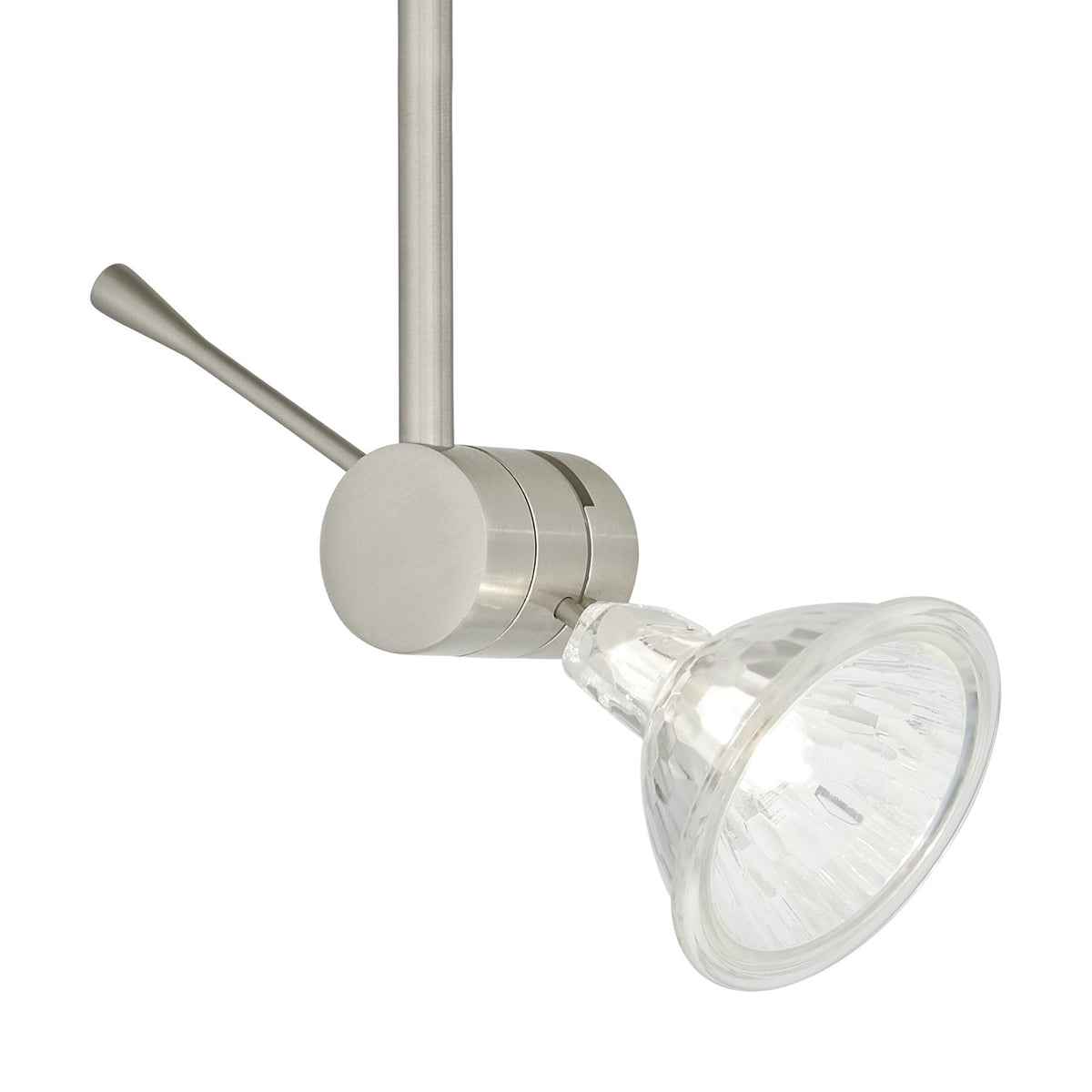

Visual Comfort Sprocket MR16 Display Head – FreeJack, MonoRail, Monopoint or Wall MonoRail

Sprocket: an MR16 low-voltage head with a head that rotates 360° and pivots 260° on a vertical axis, and a removable handle on the back helps with aiming, for FreeJack, MonoRail, Monopoint and Wall MonoRail.

Sprocket is a sleek display head that rotates a full 360° and pivots 260°, with the lamp neatly recessed to keep glare down and a removable handle on the back for easy aiming.

It comes in Satin Nickel and Antique Bronze, with 3", 6" or 12" stems, in versions for FreeJack, MonoRail, Monopoint and Wall MonoRail.

Specifications

• Brand: Visual Comfort & Co., Architectural Collection
• Designer: Visual Comfort
• Model: Sprocket Head (700FJSP)
• Type: MR16 Display Head, 12V low voltage
• Systems: FreeJack, MonoRail, Monopoint and Wall MonoRail
• Finishes: Satin Nickel and Antique Bronze
• Stem lengths: 3", 6" or 12"
• Light source: MR16 low-voltage lamp, up to 75 W (not included)
• Aiming: the head rotates 360° and pivots 260° on a vertical axis, and a removable handle on the back helps with aiming
• Dimming: Dimmable with a low-voltage electronic or magnetic dimmer, matched to the transformer
• Voltage: 12V (from the system transformer)
• Monopoint version: Includes a 4" round flush canopy; the driver is housed in the junction box
• Listing: ETL listed
• Location rating: Dry indoor locations
• Warranty: 1 year (Visual Comfort)
• Item numbers (MPN): 700FJSP3S, 700FJSP3Z, 700FJSP6S, 700FJSP6Z, 700FJSP12S, 700MOSP3S, 700MOSP3Z, 700MOSP6S, 700MOSP6Z, 700MPSP3S, 700MPSP3Z, 700MPSP6S, 700MPSP6Z, 700MPSP12S, 700WMOSP3S, 700WMOSP3Z, 700WMOSP6S, 700WMOSP6Z, 700WMOSP12S, 700MOSP12S

Features

• Recessed lamp position for reduced glare
• Removable aiming handle
• MR16 lamp up to 75 watts (not included)
• The head rotates 360° and pivots 260° on a vertical axis, and a removable handle on the back helps with aiming
• Dimmable through the system transformer
• Monopoint version includes a 4" round flush canopy
• ETL listed

Best for

Residential and commercial rails: kitchens, galleries, shops and showrooms.

Installation & sizing

How the Sprocket goes into a system (Visual Comfort's spec sheet plus our advice):

• FreeJack: plugs into a FreeJack port, canopy or connector (sold separately)
• MonoRail: clips to MonoRail with the included rail adapter
• Monopoint: a single-head ceiling mount; 4" round flush canopy included
• Wall MonoRail: clips to Wall MonoRail with the included rail adapter
• Lamp: one MR16 lamp, 75 W max (sold separately)
• Transformer: add up the lamp wattage on the run and stay within the transformer rating
• Aiming: the head rotates 360° and pivots 260° on a vertical axis, and a removable handle on the back helps with aiming; aim accent light about 30° from vertical to limit glare (our rule of thumb)

A low-voltage system needs a transformer sized to the total lamp load. Have a licensed electrician install the system.

Downloads from Visual Comfort:

• Spec sheet (PDF)
• Installation guide (PDF)

Who this is not for

• Standard line-voltage H, J or L track: it only fits the Visual Comfort systems listed.
• Anyone expecting a lamp in the box: the MR16 lamp is sold separately.
• Plug-and-play installation: a low-voltage system needs a transformer and an electrician.
• Bathrooms with showers, porches or outdoor use: it is listed for dry locations.

Why we carry it

We have been curating design-led lighting since 2009. Sprocket aims further than almost any head in the range and is made for all four mounting systems, including Wall MonoRail.

Buy once: durability and care

Let a halogen lamp cool before touching it, and handle new halogen lamps with a cloth rather than bare fingers (our advice). Dust the head with a dry microfiber cloth with the power off. Visual Comfort covers it with a 1-year warranty.

Frequently asked questions

Which systems does the Sprocket work with?

It is made for FreeJack, MonoRail, Monopoint and Wall MonoRail. The Monopoint version includes a 4" round flush canopy, and its driver sits in the junction box. It does not fit standard line-voltage H, J or L track.

What lamp does the Sprocket use?

It takes one low-voltage MR16 lamp, up to 75 watts. The lamp is not included. Visual Comfort rates it for a halogen MR16 of up to 75 watts.

How far can the Sprocket be aimed?

The head rotates 360° and pivots 260° on a vertical axis, and a removable handle on the back helps with aiming.

Is the Sprocket dimmable?

Yes. It dims with a low-voltage electronic or magnetic dimmer; which one depends on the transformer that powers the system.

Do I need a transformer for the Sprocket?

Yes. It runs on 12 volts supplied by the system's transformer (sold separately). The Monopoint version is the exception: it comes with its own 4" round flush canopy, with the driver housed in the junction box.

Which stem length should I choose for the Sprocket?

It comes with 3", 6" or 12" stems. Short stems keep heads close to the ceiling in rooms under 9 feet; longer stems drop the light below beams or bring it closer to artwork and counters (our advice).

Which Sprocket finish should I choose?

It comes in Satin Nickel and Antique Bronze. Match the head to your rail or canopy finish so the system reads as one piece (our advice).

When will the Sprocket ship?

Every version of the Sprocket we list is in stock with Visual Comfort, and in-stock orders typically leave within 2–3 business days.

Trade & project orders

Designers, architects and hospitality buyers can join our trade program for project pricing and help specifying multiples, finishes and color temperatures across a job.

Shipping

In-stock finishes typically leave within 2–3 business days. Free ground shipping on orders over $100 to the contiguous 48 states. All sales are final; please inspect your delivery and report any shipping damage within 48 hours of receipt.

Please note: Because this item is made to order or specially sourced, it is final sale.
