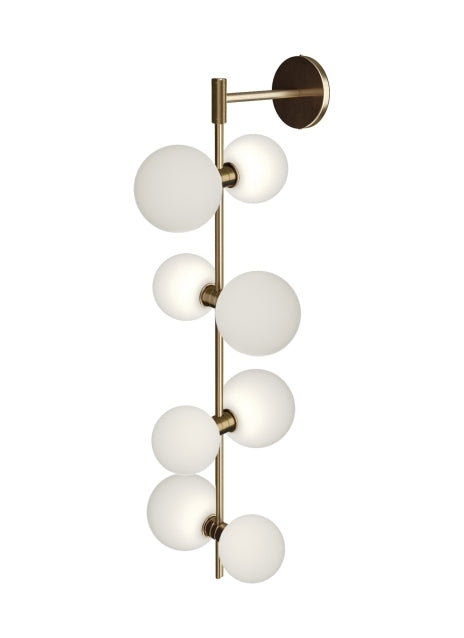

Visual Comfort ModernRail Orbs LED Wall Sconce by Sean Lavin – 36-Inch, Dimmable, Damp Rated

Beside a bed, down a hallway or either side of a mirror, the ModernRail Orbs LED Wall Sconce (36" tall × 12.8" wide) is a practical way to add light at eye level. The notes below place it.

Damp rated · Outdoor under cover · Dimmable · ELV/TRIAC · Integrated LED · 1,264 lm · 90 CRI · 3000K

Where the ModernRail Orbs LED Wall Sconce works in the house

Hallways and stairs. Space them evenly along the wall so the pools of light overlap, and check the projection against the clear width of the corridor.

Bedrooms. One on each side of the bed replaces table lamps, keeps the nightstand clear and puts reading light where it is needed.

Living rooms, dining rooms and baths. Flanking a mirror, a fireplace or a console, they add soft ambient light without taking floor space.

Room planner: size, height and placement

The numbers below come from the manufacturer's specifications and our own placement rules, worked out for the ModernRail Orbs LED Wall Sconce.

• Mounting height: about 66" from the floor for a fixture this tall, so the bottom clears furniture and countertops (our advice)
• Either side of a mirror: one on each side, centered about 60–66" high and roughly 30–40" apart
• Down a hallway: one every 8–10 ft (our rule of thumb)
• How far it sticks out: 8.8" — more than 4", so keep it out of tight walkways

Ceiling and table figures are our calculation for standard room dimensions, so measure your space. Have a licensed electrician install hardwired fixtures.

Pulling the room together

Put sconces on their own dimmer, repeat the metal in the mirror frame or cabinet hardware, and let the ceiling fixture and a table lamp supply the other two layers.

For commercial and multi-unit projects

For hotel corridors, restaurants and multifamily lobbies, we help you specify a spacing pattern, one finish and one dimming scheme across floors.

Specifications

• Brand: Visual Comfort & Co., Modern Collection
• Designer: Sean Lavin
• Model: ModernRail Wall (700MDWS3)
• Series: ModernRail
• Type: Integrated LED wall sconce, hardwired
• Finish: Aged Brass
• System: 24V integrated LED (ModernRail style); order with a remote power supply (Title 24) or a surface canopy with the power supply built in
• Height: 36" (91.4 cm)
• Width: 12.8" (32.5 cm)
• Projection from wall: 8.8" (22.4 cm)
• Backplate: 5" x 5" Round
• Light direction: Up and down
• Weight: 7 lb
• Light source: Integrated LED (included)
• Wattage: 44.6 W
• Light output: 1,264 delivered lumens
• Color temperature: 3000K
• Color rendering: 90 CRI
• Voltage: 24V low-voltage system (remote or surface power supply)
• Dimming: Dimmable with most LED-compatible ELV or TRIAC dimmers
• Rating: Indoor damp; outdoor under cover
• Materials: brass and glass orbs
• LED life: L70 50,000 hours (Visual Comfort spec sheet)
• Warranty: 5 years (Visual Comfort)
• Item numbers (MPN): 700MDWS3GRR, 700MDWS3GRS

Manufacturer downloads (Visual Comfort):

• Spec sheet (PDF)
• Installation guide (PDF)
• Life-size paper template (PDF) – print and tape to the ceiling to preview the size
• IES photometric file (ZIP) – for lighting designers
• Revit model (ZIP) – for architects

When another fixture is the better call

• Anyone wanting a finish other than aged brass: it comes in one finish.
• Fully exposed outdoor locations: it is rated for covered outdoor spaces, not direct rain.
• Anyone who wants 2700K or 3500K or tunable white: it comes in 3000K only.
• Tight walkways: it projects 8.8" from the wall, beyond the 4-inch limit for circulation paths.

More sizes in the same family

Other sizes and versions in the family: ModernRail Cylinders.

Care, cleaning and upkeep

The LED is built in, so there are no bulbs to buy or replace. Clean crystal or glass with a soft, lint-free cloth, power off and cool; avoid ammonia and abrasive cleaners (our advice). Natural and hand-rubbed brass are living finishes that patina and warm with age; Visual Comfort notes a brass cleaner can restore an uneven patina. Dust the frame with a dry microfiber cloth, power off. Installation is hardwired, so use a licensed electrician.

Questions about using it in your space

How high should I mount the ModernRail Orbs LED Wall Sconce?

About 66" from the floor for a fixture this tall, so the bottom clears furniture and countertops (our advice).

How do I place the ModernRail Orbs LED Wall Sconce beside a mirror or bed?

Mirror: one on each side, centered about 60–66" high and roughly 30–40" apart.

How far apart should I space the ModernRail Orbs LED Wall Sconce in a hallway?

One every 8–10 ft (our rule of thumb).

How far does the ModernRail Orbs LED Wall Sconce stick out from the wall?

8.8" — more than 4", so keep it out of tight walkways.

Can the ModernRail Orbs LED Wall Sconce go in a bathroom or covered porch?

Its listed rating is indoor damp; outdoor under cover.

Does the ModernRail Orbs LED Wall Sconce work with a dimmer?

Dimmable with most LED-compatible ELV or TRIAC dimmers.

Specifying for a project

Designers, architects, contractors and hospitality buyers can join our trade program for project pricing and help specifying quantities, finishes and color temperatures across a job.

Delivery

Versions we have available typically leave within 2–3 business days. Ground shipping is free on orders over $100 to the contiguous 48 states. All sales are final: please inspect the delivery and report any damage within 48 hours.

Please note: Because this item is made to order or specially sourced, it is final sale.
