K-Jane: an MR16 low-voltage head with a head that pivots 220° on two axes and hangs 1" below the cables, for Kable Lite.

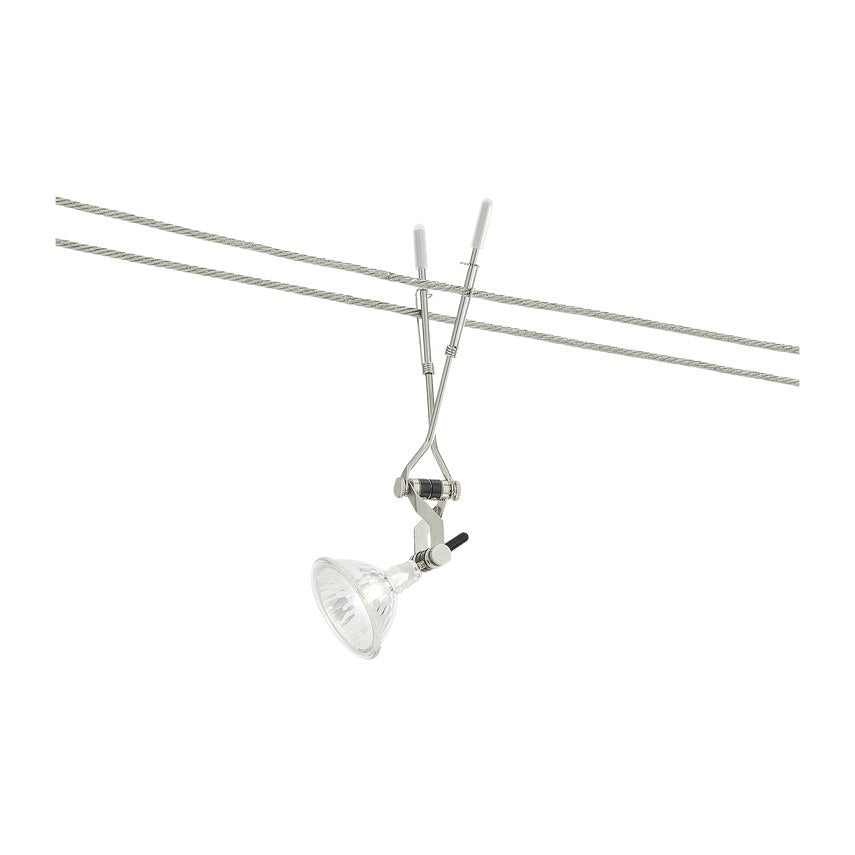

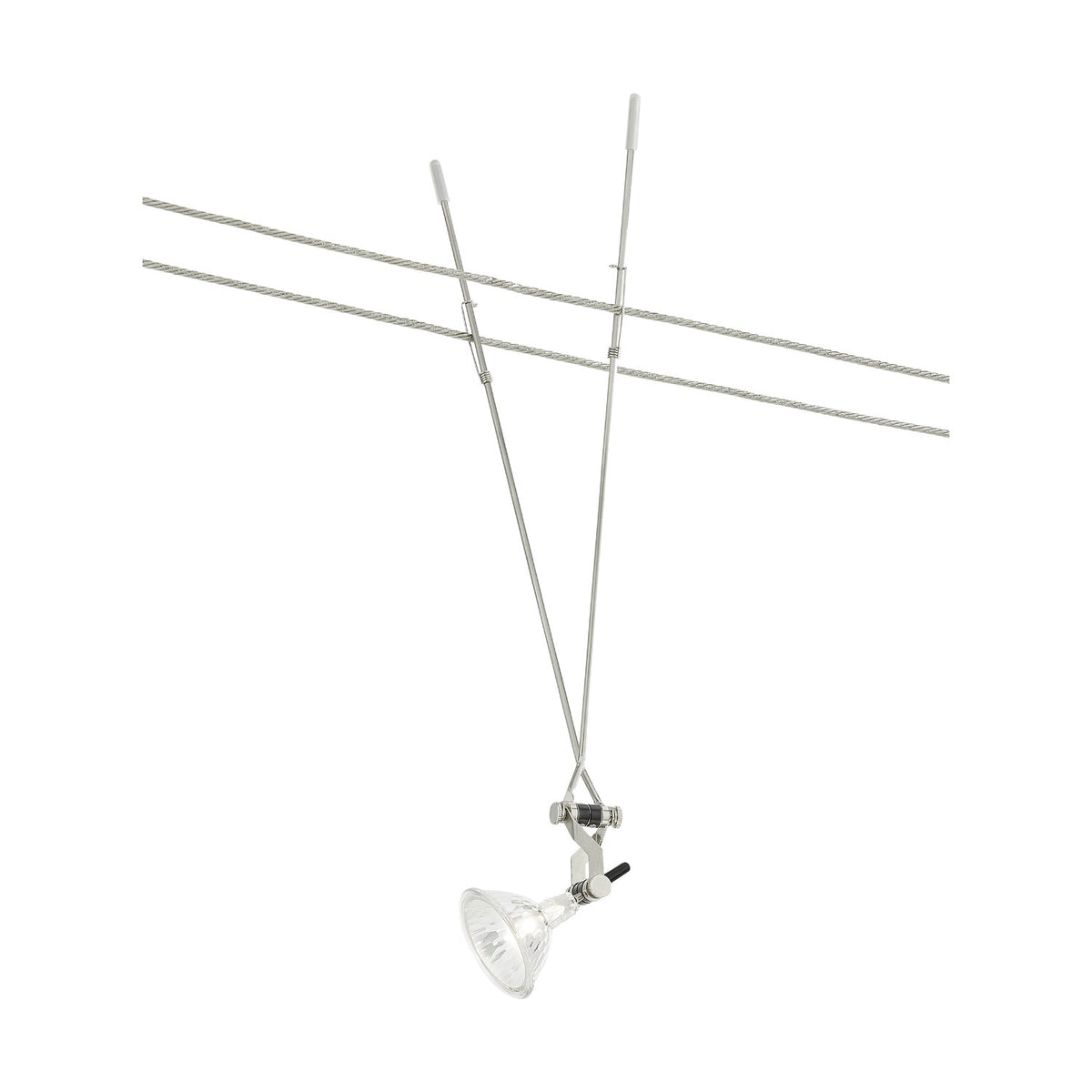

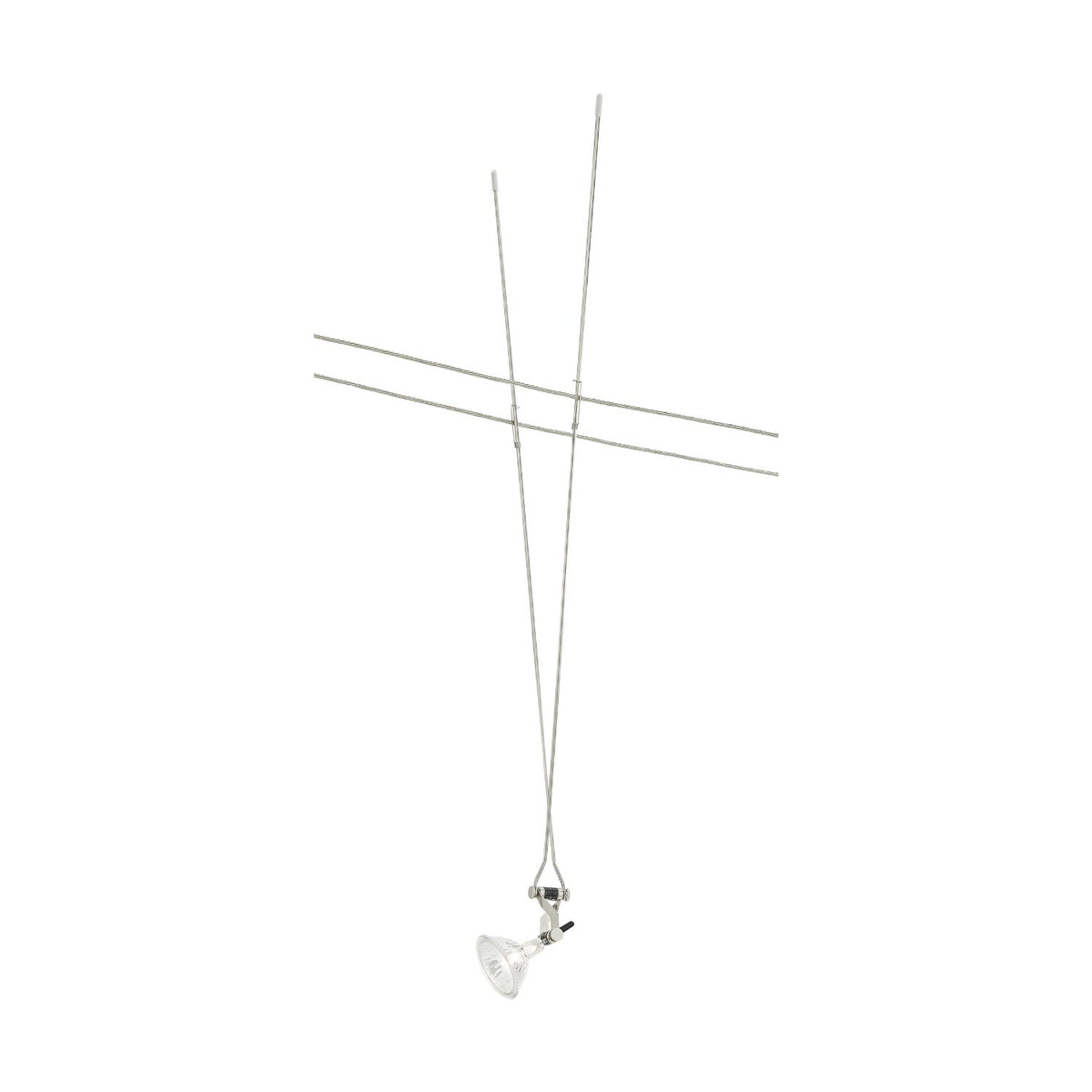

K-Jane is a simple, highly adjustable display head for Kable Lite: it sits on the two cables, hangs 1 inch below them and pivots 220° on two axes to throw light across the surface below.

It comes in Satin Nickel, with 5", 12" or 24" lengths, in versions for Kable Lite.

Specifications

• Brand: Visual Comfort & Co., Architectural Collection
• Designer: Visual Comfort
• Model: K-Jane Head (700KJAN)
• Type: MR16 Head for Kable Lite, 12V low voltage
• Systems: Kable Lite
• Finishes: Satin Nickel
• Lengths: 5", 12" or 24"
• Light source: MR16 low-voltage lamp, up to 75 W (not included)
• Aiming: the head pivots 220° on two axes and hangs 1" below the cables
• Dimming: Dimmable with a low-voltage electronic or magnetic dimmer, matched to the transformer
• Voltage: 12V (from the system transformer)
• Listing: ETL listed
• Location rating: Dry indoor locations
• Warranty: 1 year (Visual Comfort)
• Item numbers (MPN): 700KJAN05S, 700KJAN12S, 700KJAN24S

Features

• Pivots 220° on two axes
• Field-cuttable, for cable separations up to twice its length
• MR16 lamp up to 75 watts (not included)
• The head pivots 220° on two axes and hangs 1" below the cables
• Dimmable through the system transformer
• ETL listed

Best for

Kable Lite runs over kitchens, lofts, shops and studios; Visual Comfort calls it ideal for commercial lighting.

Installation & sizing

How the K-Jane goes into a system (Visual Comfort's spec sheet plus our advice):

• Kable Lite: bridges the two Kable Lite cables
• Lamp: one MR16 lamp, 75 W max (sold separately)
• Transformer: add up the lamp wattage on the run and stay within the transformer rating
• Aiming: the head pivots 220° on two axes and hangs 1" below the cables; aim accent light about 30° from vertical to limit glare (our rule of thumb)

A low-voltage system needs a transformer sized to the total lamp load. Have a licensed electrician install the system.

Downloads from Visual Comfort:

• Spec sheet (PDF)
• Installation guide (PDF)

Who this is not for

• Standard line-voltage H, J or L track: it only fits the Visual Comfort systems listed.
• Anyone expecting a lamp in the box: the MR16 lamp is sold separately.
• Plug-and-play installation: a low-voltage system needs a transformer and an electrician.
• Bathrooms with showers, porches or outdoor use: it is listed for dry locations.

Why we carry it

We have been curating design-led lighting since 2009. It is the most flexible way to aim light from a cable run.

Buy once: durability and care

Let a halogen lamp cool before touching it, and handle new halogen lamps with a cloth rather than bare fingers (our advice). Dust the head with a dry microfiber cloth with the power off. Visual Comfort covers it with a 1-year warranty.

Frequently asked questions

Which systems does the K-Jane work with?

It is made for Kable Lite. It is for the Kable Lite system only. It does not fit standard line-voltage H, J or L track.

What lamp does the K-Jane use?

It takes one low-voltage MR16 lamp, up to 75 watts. The lamp is not included.

How far can the K-Jane be aimed?

The head pivots 220° on two axes and hangs 1" below the cables.

Is the K-Jane dimmable?

Yes. It dims with a low-voltage electronic or magnetic dimmer; which one depends on the transformer that powers the system.

Do I need a transformer for the K-Jane?

Yes. It runs on 12 volts supplied by the system's transformer (sold separately).

Which length should I choose for the K-Jane?

It comes in 5", 12" or 24" lengths. Each length works for cable separations of up to twice its length and can be cut on site (Visual Comfort spec sheet), so choose the one that suits the spacing of your two cables.

Which K-Jane finish should I choose?

It comes in Satin Nickel, which matches Visual Comfort's Satin Nickel rail and cable hardware.

When will the K-Jane ship?

Every version of the K-Jane we list is in stock with Visual Comfort, and in-stock orders typically leave within 2–3 business days.
