Visual Comfort Cylinders LED Head by Sean Lavin – MonoRail

Sean Lavin's Cylinders: an integrated-LED low-voltage head with a soft decorative glow, for MonoRail.

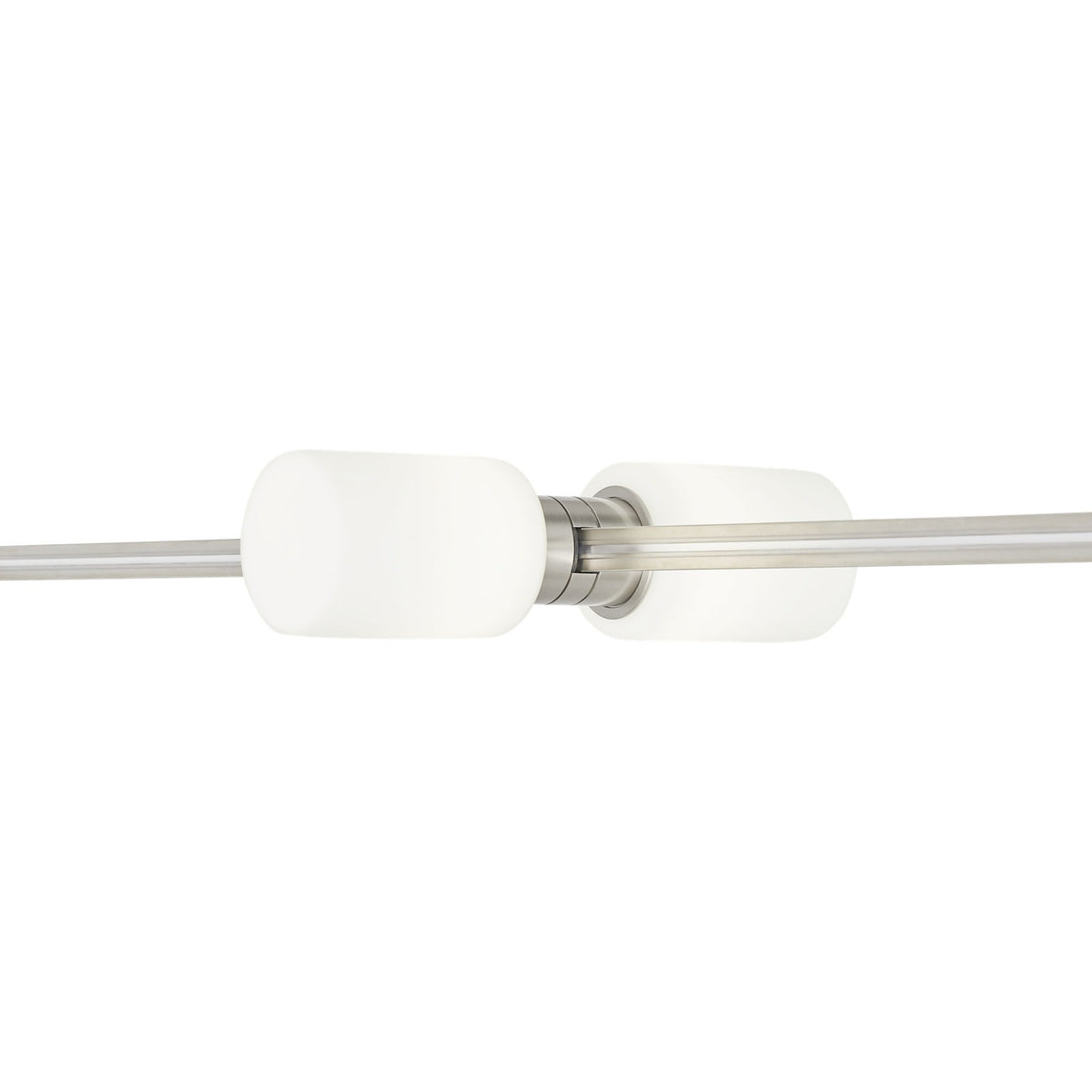

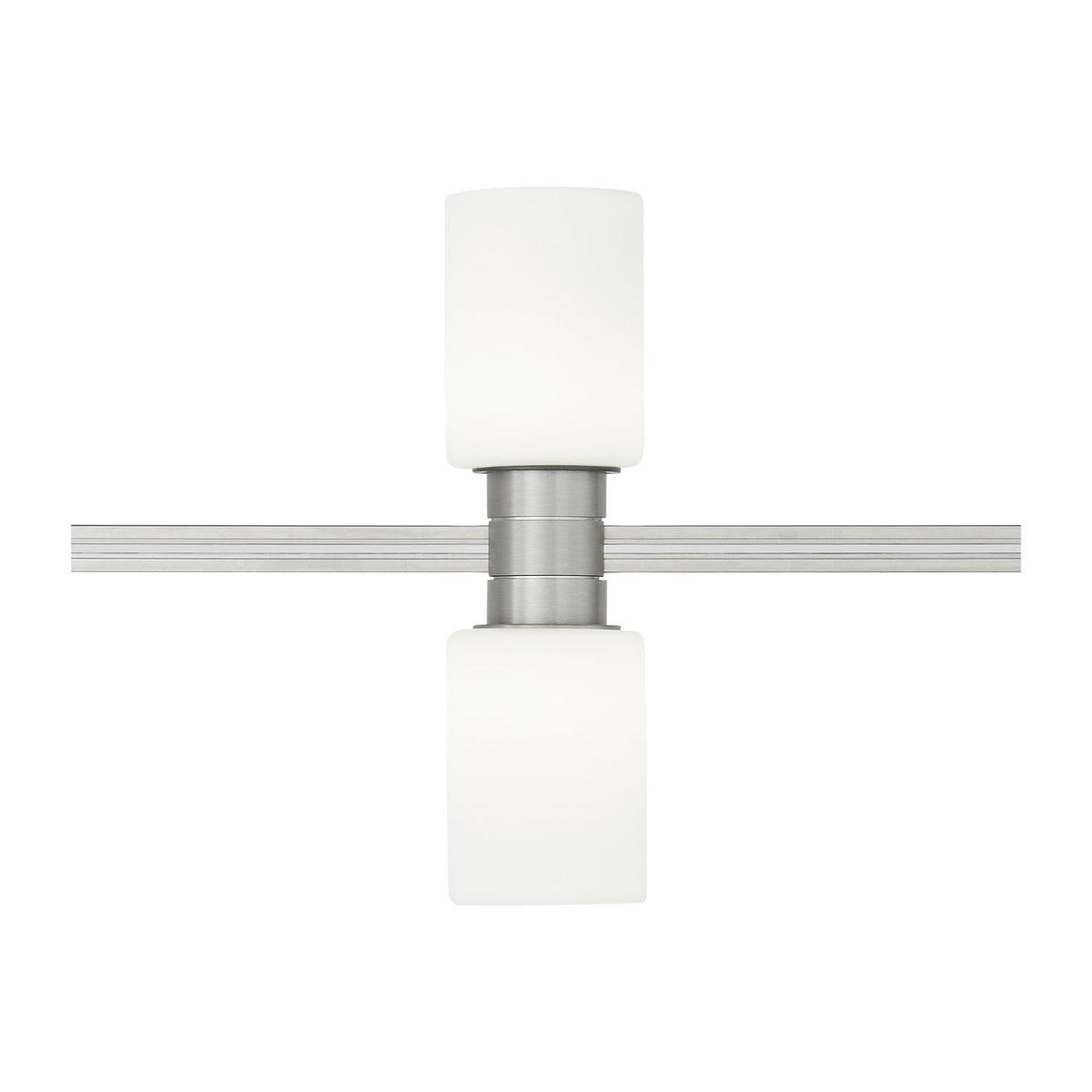

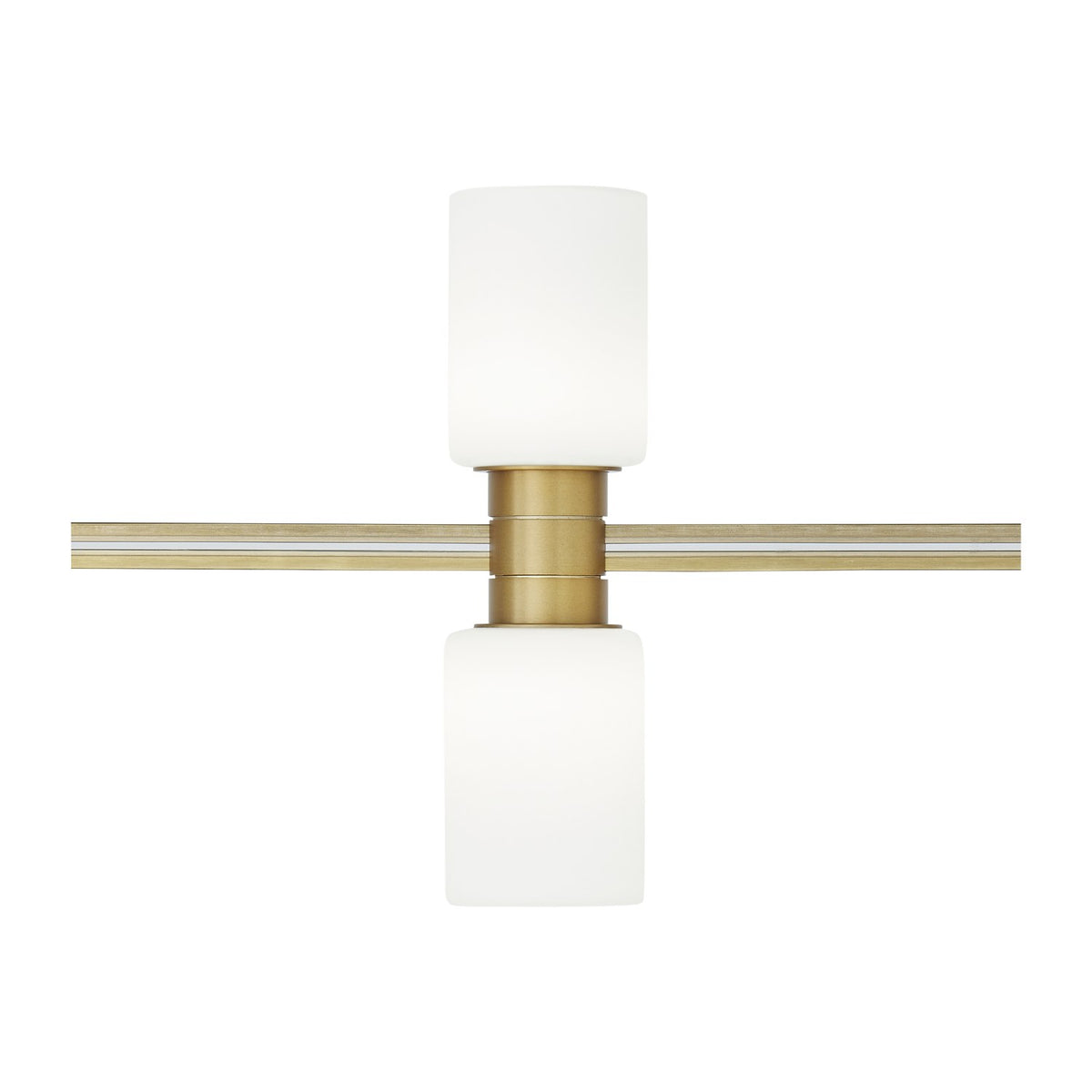

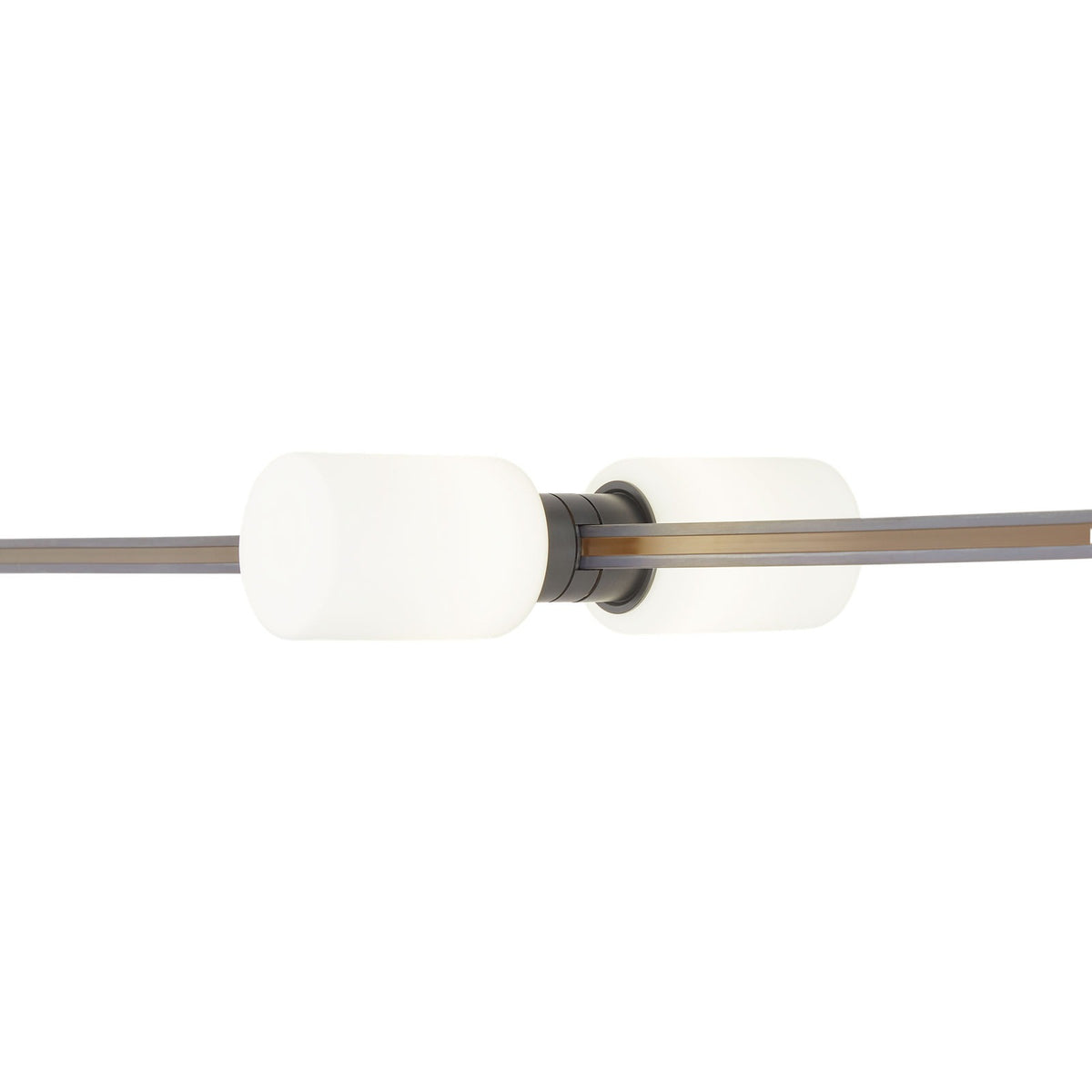

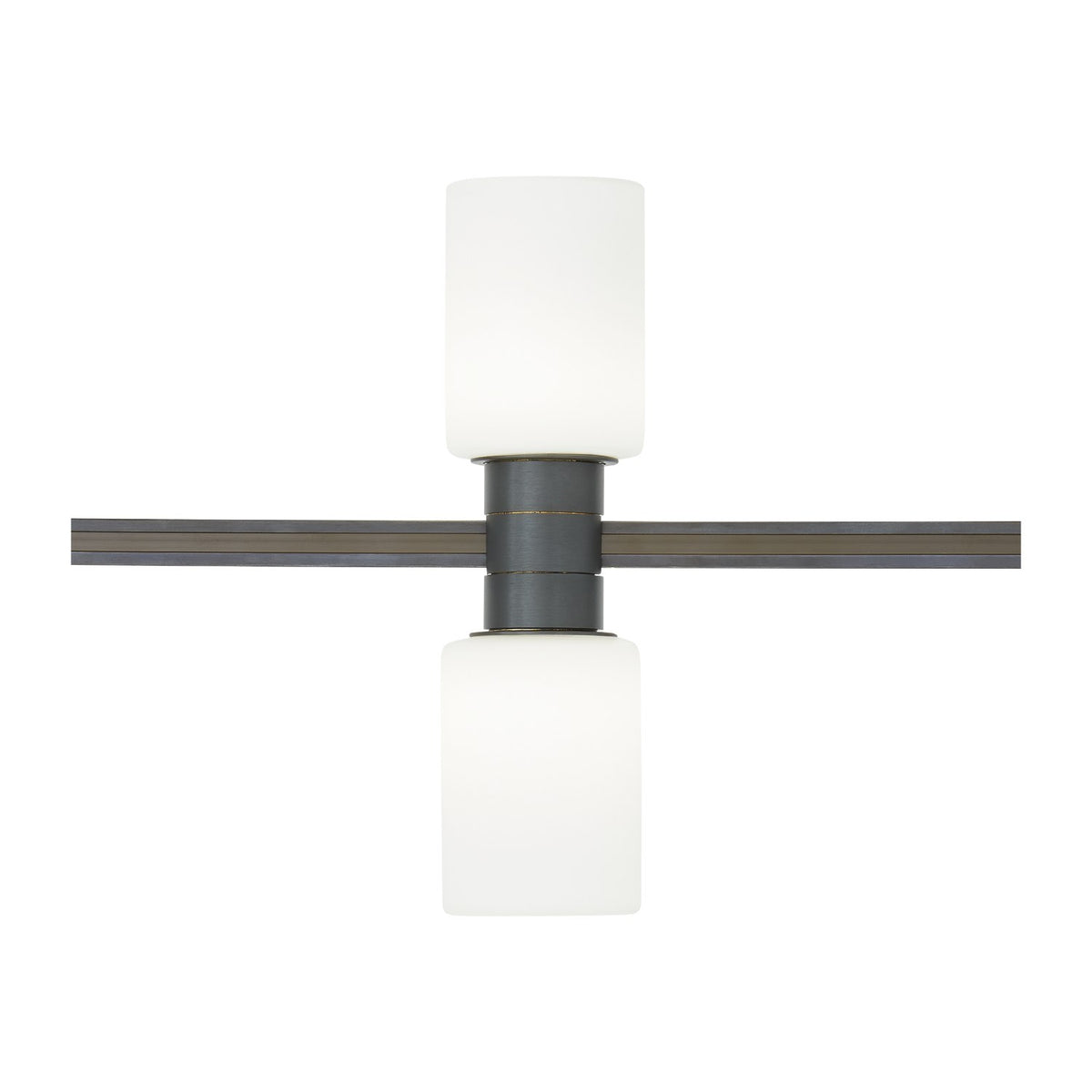

Cylinders, by Sean Lavin, turns a MonoRail run into a light sculpture: glowing cylinders mount on the rail, horizontally or vertically, each with a 7.6-watt integrated LED delivering 368 lumens at 3000K and 90 CRI.

It comes in Aged Brass, Antique Bronze and Satin Nickel, with Horizontal or Vertical orientation, in versions for MonoRail.

Specifications

• Brand: Visual Comfort & Co., Architectural Collection
• Designer: Sean Lavin
• Model: Cylinders Head (700MOCYL)
• Type: LED Head for MonoRail, 12V low voltage
• Systems: MonoRail
• Finishes: Aged Brass, Antique Bronze and Satin Nickel
• Orientation: Horizontal or Vertical
• Light source: Integrated LED module (included): 7.6 W, 368 delivered lumens, 90 CRI, 3000K
• Dimming: Dimmable with a low-voltage electronic or magnetic dimmer, matched to the transformer
• Voltage: 12V (from the system transformer)
• Dimensions (H × W × L): 2.4" × 2.4" × 8.8" (6.1 × 6.1 × 22.4 cm)
• Weight: 1.5 lb
• Listing: ETL listed
• Location rating: Dry indoor locations
• Warranty: 5 years (Visual Comfort)
• Item numbers (MPN): 700MOCYLHR-LED930, 700MOCYLVR-LED930, 700MOCYLHZ-LED930, 700MOCYLVZ-LED930, 700MOCYLHS-LED930, 700MOCYLVS-LED930

Features

• Horizontal or vertical versions, by Sean Lavin
• Build a custom chandelier along a MonoRail run
• Integrated LED: 368 delivered lumens at 90 CRI
• Dimmable through the system transformer
• ETL listed

Best for

Dining tables, entries and living rooms where a MonoRail run doubles as a custom chandelier, close to the ceiling or dropped lower.

Installation & sizing

How the Cylinders goes into a system (Visual Comfort's spec sheet plus our advice):

• MonoRail: clips to MonoRail with the included rail adapter
• Lamp: integrated LED, nothing to add
• Transformer: add up the lamp wattage on the run and stay within the transformer rating
• Rail drop: use rigid standoffs of at least 6" so the cylinders clear the ceiling (Visual Comfort)

A low-voltage system needs a transformer sized to the total lamp load. Have a licensed electrician install the system. Mounting details are on Visual Comfort’s spec sheet (download below).

Downloads from Visual Comfort:

• Spec sheet (PDF)

Who this is not for

• Aimed accent light: the cylinders glow rather than spot.
• Standard line-voltage H, J or L track: it only fits the Visual Comfort systems listed.
• Plug-and-play installation: a low-voltage system needs a transformer and an electrician.
• Bathrooms with showers, porches or outdoor use: it is listed for dry locations.

Why we carry it

We have been curating design-led lighting since 2009. Most rail heads are spotlights; Cylinders is the decorative one, giving a rail the presence of a chandelier.

Buy once: durability and care

The LED is built in, so there is no lamp to replace. Dust the head with a dry microfiber cloth with the power off. Visual Comfort covers it with a 5-year warranty.

Frequently asked questions

Which systems does the Cylinders work with?

It is made for MonoRail. It is for the MonoRail system only. It does not fit standard line-voltage H, J or L track.

How bright is the Cylinders?

Its integrated LED delivers 368 lumens from 7.6 watts at 90 CRI, in 3000K. That is a decorative glow, so plan several along the rail to light a room (our advice).

Can the Cylinders be aimed?

No. It is a decorative head with a fixed position, chosen for its form and soft glow.

Is the Cylinders dimmable?

Yes. It dims with a low-voltage electronic or magnetic dimmer; which one depends on the transformer that powers the system.

Do I need a transformer for the Cylinders?

Yes. It runs on 12 volts supplied by the system's transformer (sold separately).

Should I choose the horizontal or vertical Cylinders?

Horizontal heads read as a line along the rail; vertical heads stand upright like small columns. Mixing the two along one MonoRail run creates a sculptural composition (our advice).

Which Cylinders finish should I choose?

It comes in Aged Brass, Antique Bronze and Satin Nickel. Match the head to your rail or canopy finish so the system reads as one piece (our advice).

When will the Cylinders ship?

Every version of the Cylinders we list is in stock with Visual Comfort, and in-stock orders typically leave within 2–3 business days.
