Visual Comfort Ace LED Spot Head by Sean Lavin – FreeJack, Monopoint or MonoRail

Sean Lavin's Ace: an integrated-LED low-voltage head with a head that pivots 90°, from horizontal to straight down, for FreeJack, Monopoint and MonoRail.

Ace, by Sean Lavin, is a classic adjustable spot head with the light source built in: a 9.4-watt LED module delivering 518 lumens at 90 CRI through a 40° beam, in 2700K or 3000K.

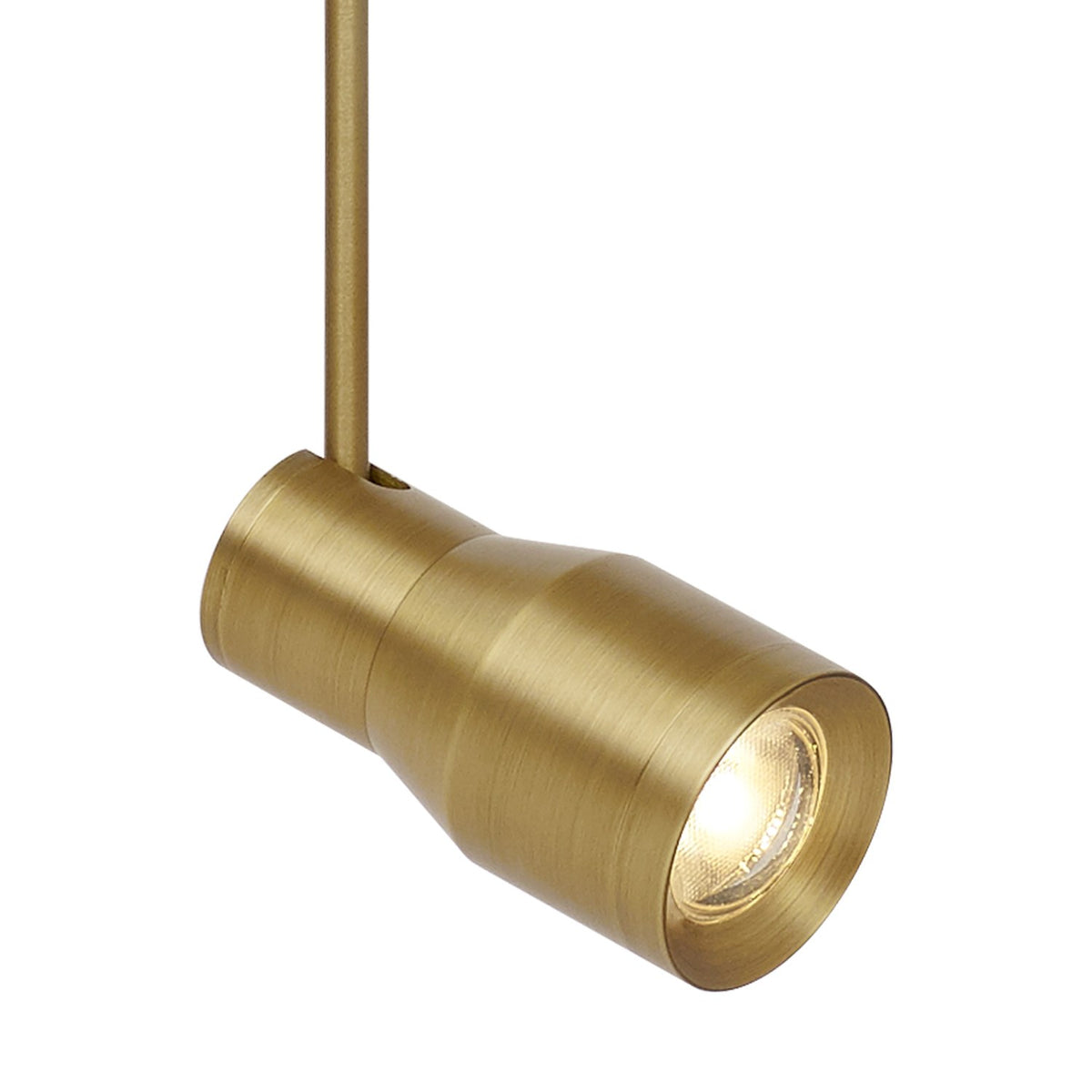

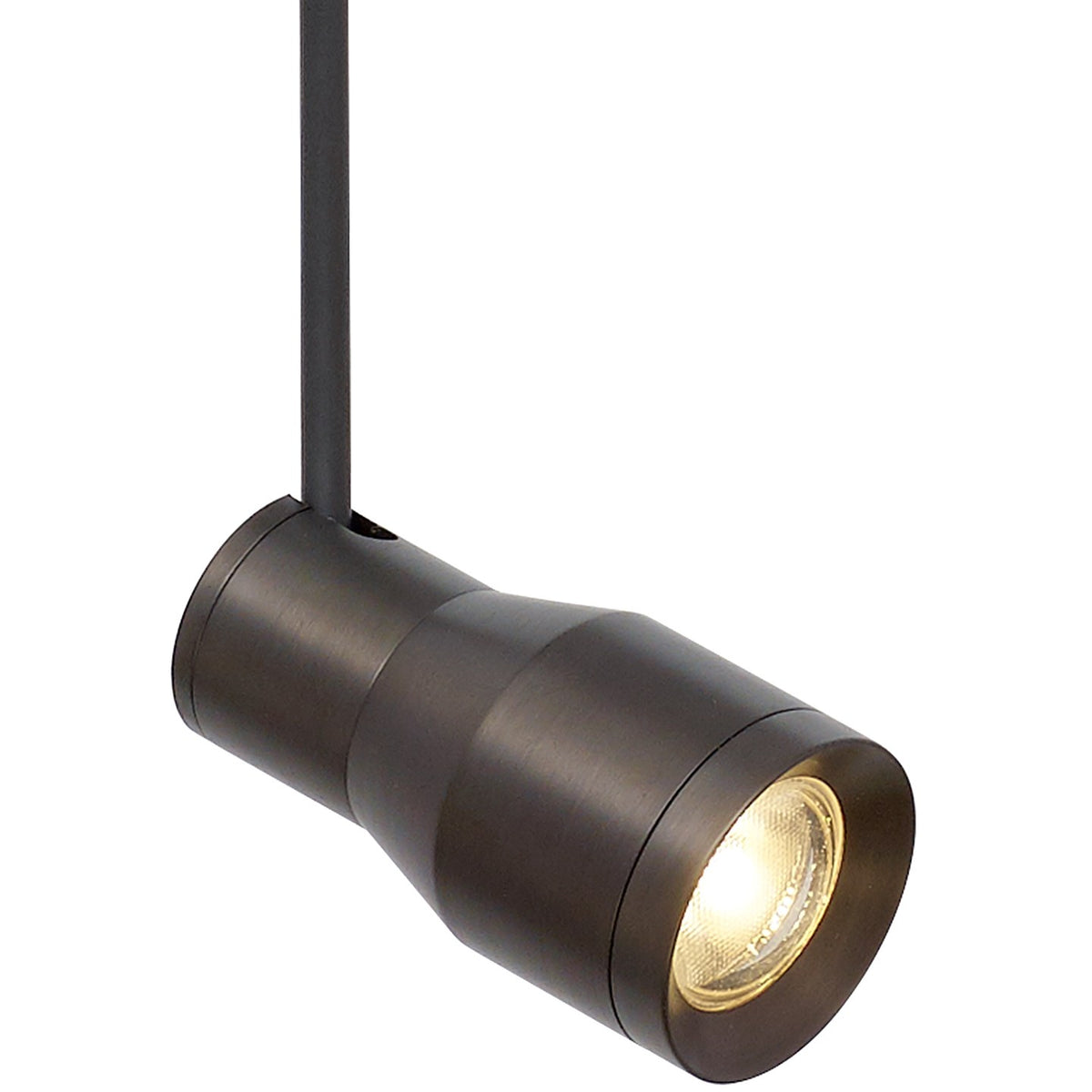

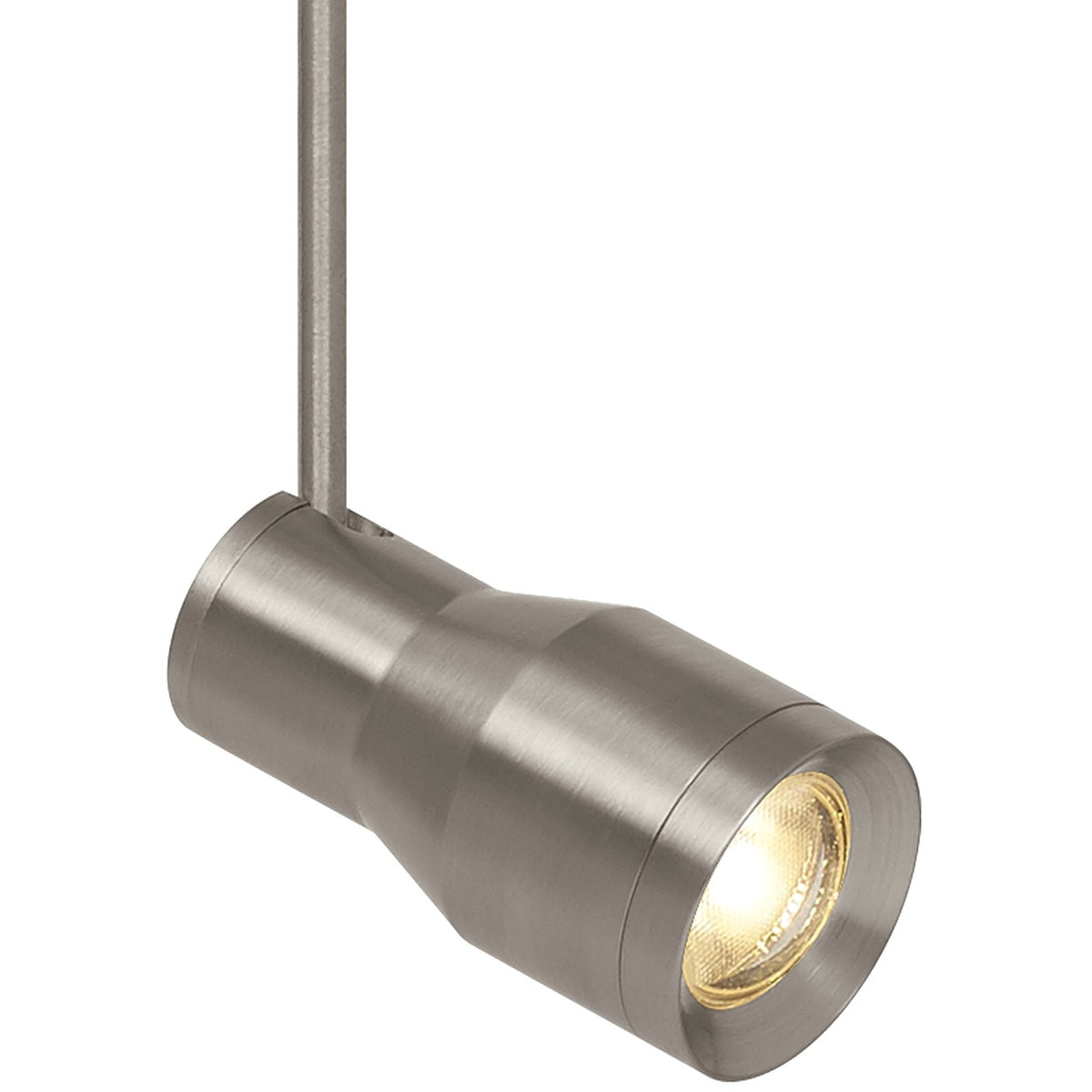

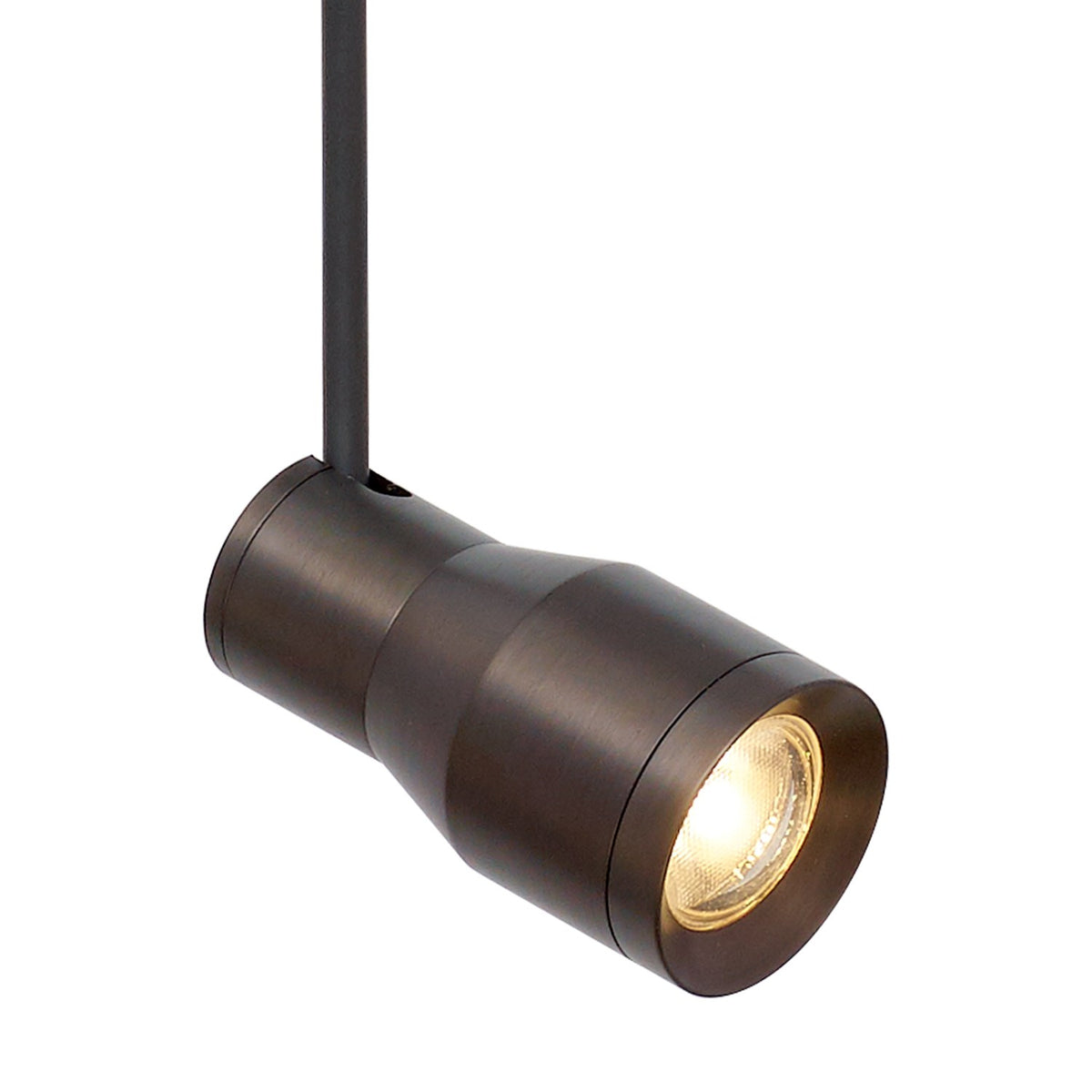

It comes in Antique Bronze, Satin Nickel and Plated Brass, in versions for FreeJack, Monopoint and MonoRail.

Specifications

• Brand: Visual Comfort & Co., Architectural Collection
• Designer: Sean Lavin
• Model: Ace Head (700FJACE)
• Type: LED Spot Head, 12V low voltage
• Systems: FreeJack, Monopoint and MonoRail
• Finishes: Antique Bronze, Satin Nickel and Plated Brass
• Light source: Integrated LED module (included): 9.4 W, 518 delivered lumens, 90 CRI, 2700K or 3000K, 40° beam
• Aiming: the head pivots 90°, from horizontal to straight down
• Lens holder: The integrated lens holder takes up to two lenses or louvers (sold separately)
• Dimming: Dimmable with most LED-compatible ELV and TRIAC dimmers
• Voltage: 12V (from the system transformer)
• Monopoint version: Includes a 4" round flush canopy
• Dimensions (H × W × L): 1.9" × 1.9" × 3.6" (4.8 × 4.8 × 9.1 cm)
• Weight: 1.5 lb
• Listing: ETL listed
• Location rating: Dry indoor locations
• Warranty: 5 years (Visual Comfort)
• Item numbers (MPN): 700FJACE927405Z, 700FJACE930405Z, 700MPACE927405Z, 700MPACE930405Z, 700MOACE927405Z, 700MOACE930405Z, 700FJACE927405S, 700FJACE930405S, 700MPACE927405S, 700MPACE930405S, 700MOACE927405S, 700MOACE930405S, 700FJACE927405BR, 700FJACE930405BR, 700MOACE927405BR, 700MOACE930405BR, 700MPACE927405BR, 700MPACE930405BR

Features

• Classic adjustable spot design by Sean Lavin
• 2700K or 3000K, 40° beam, 5" stem
• Integrated LED: 518 delivered lumens at 90 CRI
• The head pivots 90°, from horizontal to straight down
• The integrated lens holder takes up to two lenses or louvers (sold separately)
• Dimmable with most LED-compatible ELV and TRIAC dimmers
• Monopoint version includes a 4" round flush canopy
• ETL listed

Best for

Task light over counters and desks, accent light on art and shelves, and retail or hospitality rails where a consistent LED color matters.

Installation & sizing

How the Ace goes into a system (Visual Comfort's spec sheet plus our advice):

• FreeJack: plugs into a FreeJack port, canopy or connector (sold separately)
• Monopoint: a single-head ceiling mount; 4" round flush canopy included
• MonoRail: clips to MonoRail with the included rail adapter
• Lamp: integrated LED, nothing to add
• Transformer: add up the lamp wattage on the run and stay within the transformer rating; Visual Comfort recommends loading the transformer to no more than 70% of its maximum wattage with Ace heads, because of inrush current
• Aiming: the head pivots 90°, from horizontal to straight down; aim accent light about 30° from vertical to limit glare (our rule of thumb)

A low-voltage system needs a transformer sized to the total lamp load. Have a licensed electrician install the system.

Downloads from Visual Comfort:

• Spec sheet (PDF)
• Installation guide (PDF)

Who this is not for

• Anyone who wants to swap lamps for different beams: the LED and its 40° beam are fixed.
• Standard line-voltage H, J or L track: it only fits the Visual Comfort systems listed.
• Plug-and-play installation: a low-voltage system needs a transformer and an electrician.
• Bathrooms with showers, porches or outdoor use: it is listed for dry locations.

Why we carry it

We have been curating design-led lighting since 2009. Ace removes the guesswork of choosing MR16 lamps: output, color and beam are fixed and matched from head to head.

Buy once: durability and care

The LED is built in, so there is no lamp to replace. Dust the head with a dry microfiber cloth with the power off. Visual Comfort covers it with a 5-year warranty.

Frequently asked questions

Which systems does the Ace work with?

It is made for FreeJack, Monopoint and MonoRail. The Monopoint version includes a 4" round flush canopy. It does not fit standard line-voltage H, J or L track.

How bright is the Ace?

Its integrated LED delivers 518 lumens from 9.4 watts at 90 CRI, in 2700K or 3000K with a 40° beam. That is a focused accent or task light, comparable to a 50-watt halogen MR16 (our estimate).

How far can the Ace be aimed?

The head pivots 90°, from horizontal to straight down. The integrated lens holder takes up to two lenses or louvers (sold separately).

Is the Ace dimmable?

Yes. Dimmable with most LED-compatible ELV and TRIAC dimmers.

Do I need a transformer for the Ace?

Yes. It runs on 12 volts supplied by the system's transformer (sold separately). The Monopoint version is the exception: it comes with its own 4" round flush canopy. Visual Comfort recommends loading the transformer to no more than 70% of its maximum wattage with Ace heads, because of inrush current.

Where does the Ace work best?

Task light over counters and desks, accent light on art and shelves, and retail or hospitality rails where a consistent LED color matters.

Which Ace finish should I choose?

It comes in Antique Bronze, Satin Nickel and Plated Brass. Match the head to your rail or canopy finish so the system reads as one piece (our advice).

When will the Ace ship?

Every version of the Ace we list is in stock with Visual Comfort, and in-stock orders typically leave within 2–3 business days.
