Pablo Designs Swell XL String 3 Mixed LED Pendant – Damp Rated

Three Swell shapes, one power feed, endless arrangements.

Swell XL String 3 Mixed is a ready-to-hang trio of Swell XL shades, one Narrow, one Medium and one Wide (Narrow 12 × 20 in, Medium 18 × 17 in, Wide 24 × 14 in (diameter × height)), spaced about 22 to 28 inches apart. The 8 ft power feed cord, canopy and vertical mounting kits (10 ft cables) are included.

Each lamp uses a replaceable E26 PAR LED bulb (800 lumens, 3000K, 90 CRI) and is fully dimmable. Hang the trio vertically, or add the optional horizontal kit (30 ft cable, up to 12 lamps), and expand with String Single modules up to 34 lamps per power source.

Meet the designer

Pablo Studio

In-house design team, San Francisco · Pablo Designs, San Francisco

The Pablo Studio is the company’s small San Francisco team of makers and inventors, with backgrounds in industrial design, craft, materials and manufacturing. Each project is refined until every element earns its place, the Pablo rule of “less is more.”

Specifications

• Brand: Pablo Designs (San Francisco, since 1993)
• Designer: Pablo Studio
• Collection: Swell
• Model: Swell XL String 3 Mixed
• Type: Modular pendant, three lamps, hardwired
• Configuration: One Narrow, one Medium and one Wide lamp

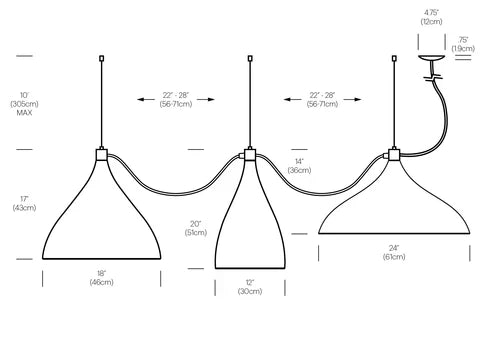

• Dimensions: Narrow 12 × 20 in, Medium 18 × 17 in, Wide 24 × 14 in (diameter × height); lamps spaced 22–28 in apart
• Included: 8 ft power feed cord and canopy; vertical mounting kits (10 ft cables)
• Optional: Horizontal mounting kit (30 ft cable, up to 12 lamps)
• Expansion: Add String Single modules, up to 34 lamps per power source
• Light source: 3 × E26 PAR30 LED bulbs, replaceable, included
• Light output: 800 lumens per lamp
• Power: 13 W per lamp
• Color temperature: 3000K (2700K or 3500K on request)
• Color rendering: 90 CRI
• Dimming: Fully dimmable
• Voltage: 120V or 240V, 60 Hz
• Location rating: Damp rated: indoors and covered outdoor areas
• Compliance: Dark Sky and California Title 20 compliant; Title 24 model on request
• Lamp lifespan: 40,000 hours
• Materials: Spun aluminum shade with brass interior, aluminum socket and check-ring, steel canopy, PVC cord

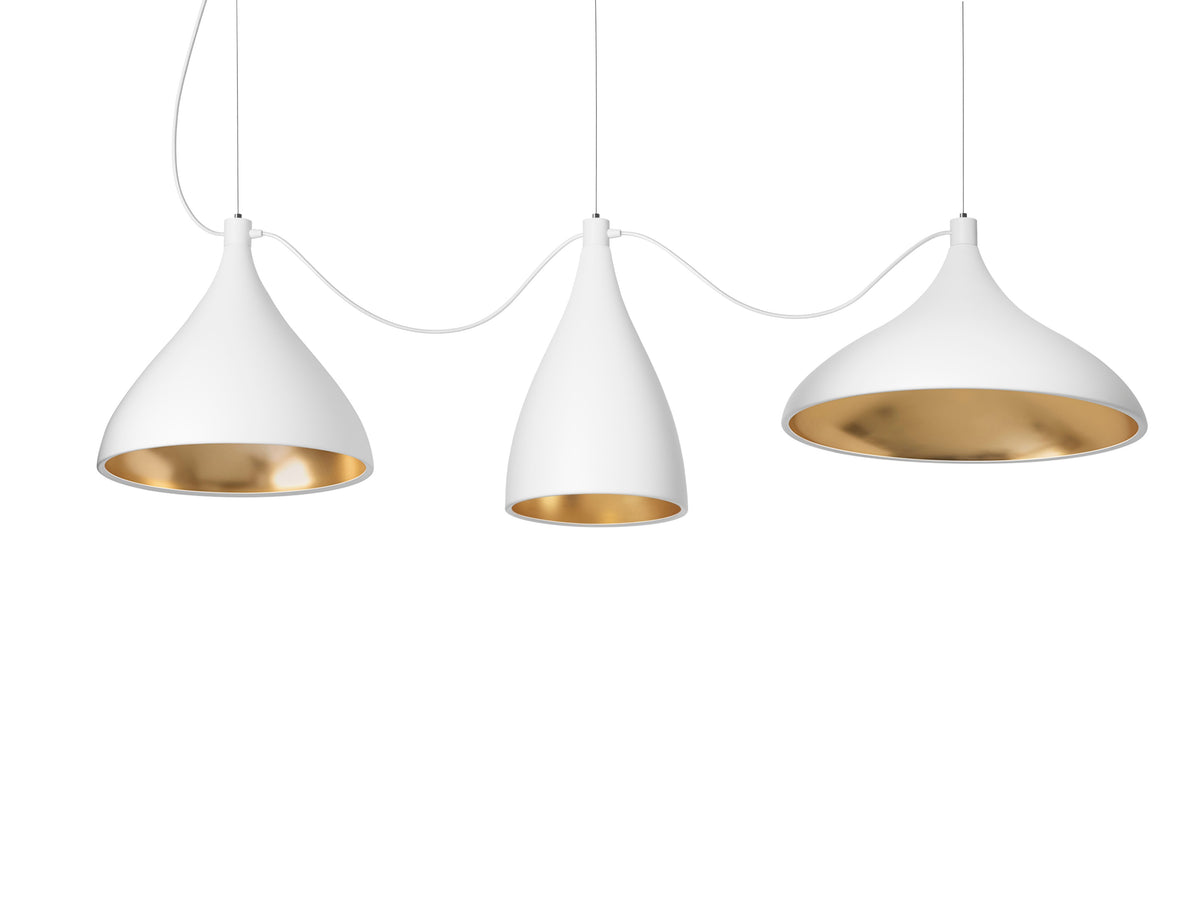

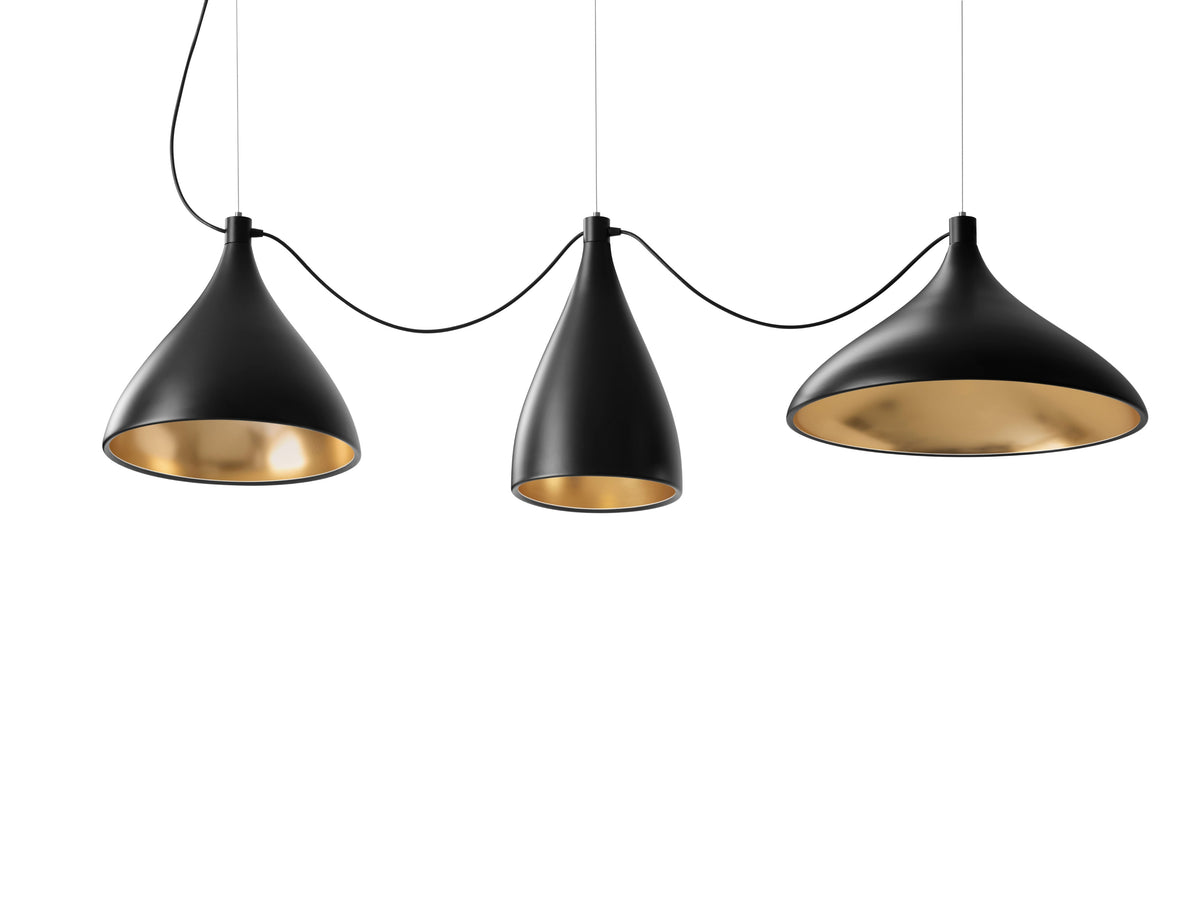

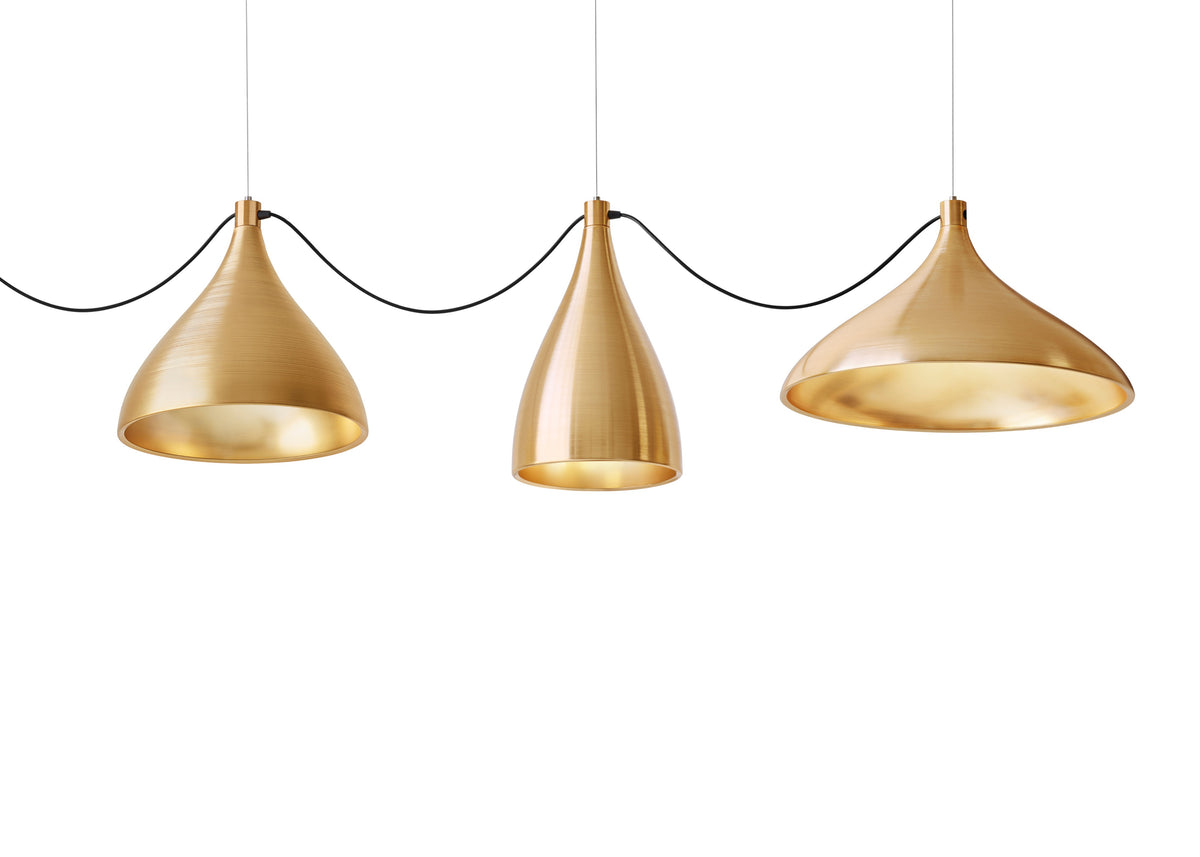

• Finishes: Matte Black / Brass (black cord), Matte White / Brass (white cord) or Brass / Brass (black cord)
• Certifications: ETL, RoHS
• Warranty: 1 year from Pablo Designs (bulbs excluded)
• Item numbers (MPN): SWEL STR XL MIX [finish], e.g. SWEL STR XL MIX BLK/BRA

Features

• Three shapes: Narrow, Medium and Wide.
• Power feed included: ready to install.
• Vertical or horizontal: optional horizontal kit.
• Expandable: up to 34 lamps.
• Damp rated: indoors and covered outdoors.

Best for

Double-height spaces, large dining tables, lobbies and restaurant ceilings. Add modules such as the String Single Medium to extend it.

Who this is not for

• Uncovered wet locations.
• Low ceilings: the XL shades are large.
• Plug-in installs.

Why we carry it

MetropolitanDecor is an authorized Pablo Designs retailer, curating design-led lighting since 2009. It is the easiest way into the Swell String system: three complementary shapes and everything needed to hang them. MetropolitanDecor carries the full Swell range.

Buy once: durability and care

Swell carries a one-year Pablo Designs warranty (bulbs excluded). Our care advice: dust the spun aluminum with a soft dry cloth and wipe the brass interior gently with a barely damp microfiber cloth; outdoors, wipe it down a few times a year. The E26 PAR LED bulb is standard and easy to replace. Hardwired models should be installed by a licensed electrician.

Downloads for specifiers

• Swell spec sheet (PDF)
• Swell assembly instructions (PDF)
• Swell brochure (PDF)

Frequently asked questions

Which shades come in the Swell XL String 3 Mixed?

One Narrow, one Medium and one Wide.

Is the power feed included with the Swell XL String 3 Mixed?

Yes, the 8 ft power feed cord and canopy are included.

Can I add more lamps to the Swell XL String 3 Mixed?

Yes, add String Single modules up to 34 lamps per power source.

How far apart are the Swell XL String 3 Mixed lamps?

About 22 to 28 inches.

Can the Swell XL String 3 Mixed hang horizontally?

Yes, with the optional horizontal mounting kit.

Trade & project orders

Interior designers, architects and hospitality buyers can join the MetropolitanDecor trade program for trade pricing. We also prepare quotes for multi-unit and project orders; contact us with your quantities and finishes.

Shipping

Ships in 2–3 business days.

Please note: Because this item is made to order or specially sourced, it is final sale.
