Visual Comfort Brox LED Light Bars | Modular Linear System | 12–96"

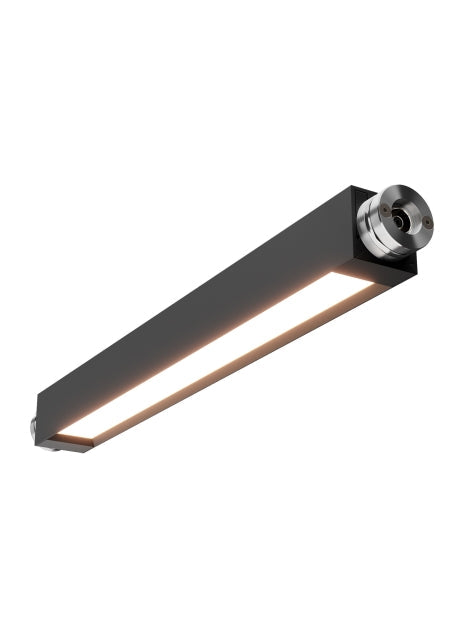

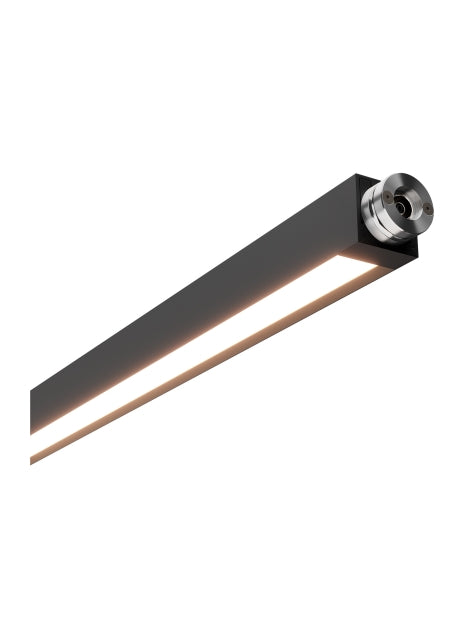

The Brox Light Bars are the illuminated backbone of Visual Comfort's Brox linear system — aluminum extrusions in Nightshade Black that deliver 100 lumens per foot of warm 3000K, 90 CRI integrated LED light in a profile narrow enough to read as a single clean line on the ceiling or wall. Each bar mounts and rotates 360 degrees, letting the installer aim light in any direction without changing the fixture's position. Connect multiple bars end-to-end with Brox Connectors to build runs of any length, then finish with Brox End Caps for a seamless terminus.

The system's logic is additive modularity: the Light Bars do the illuminating, the Blank Bars bridge unlit spans, and the Connectors — available in Wall, I, L, C-corner, and T configurations — allow the run to turn corners, split directions, or terminate cleanly. All components share the same aluminum extrusion profile and Nightshade Black finish, so the assembled system reads as a single designed element rather than a collection of parts.

Available in 12, 24, 48, 72, and 96-inch lengths, the Brox Light Bars can be specified for kitchen island lighting, office linear ceiling runs, retail display lighting, and any application where a continuous, directable line of light is the right design solution. ETL listed, 90 CRI 3000K throughout. Free shipping at MetropolitanDecor.com.

Designer/Brand: Visual Comfort & Co.

Specifications

• Output: 100 lumens per foot
• CCT: 3000K
• CRI: 90
• Material: Aluminum
• Finish: Nightshade Black
• Rotation: 360°
• Location Rating: ETL Listed (Dry)
• Available Lengths: 12", 24", 48", 72", 96"
• Warranty: 5 Years
• SKU(s): MD-VCC-700BRXLB12L930B (12"), MD-VCC-700BRXLB24L930B (24"), MD-VCC-700BRXLB48L930B (48"), MD-VCC-700BRXLB72L930B (72"), MD-VCC-700BRXLB96L930B (96")

Frequently Asked Questions

Q: Can I mix Light Bars and Blank Bars in the same run?
A: Yes — this is exactly how the Brox system is designed to work. Blank Bars provide unilluminated bridging sections between Light Bars, allowing you to create zones of light and shadow in a single continuous run. All components connect with standard Brox Connectors and share the same profile and finish.

Q: How many Light Bars can I connect in a single run?
A: Visual Comfort recommends consulting the spec sheet for maximum run length based on your circuit's load capacity. As a general guideline, each foot of Light Bar draws approximately 3.5W, so a 96-inch bar draws about 28W — plan your runs accordingly to stay within circuit limits.

Q: Do the Light Bars require a separate driver?
A: Yes — the Brox system requires a compatible Brox driver (sold separately) to power the run. The driver connects to your electrical supply and powers the entire run of Light Bars. Consult the Brox system spec sheet for driver sizing based on your total run length.

Please note: Because this item is made to order or specially sourced, it is final sale.
