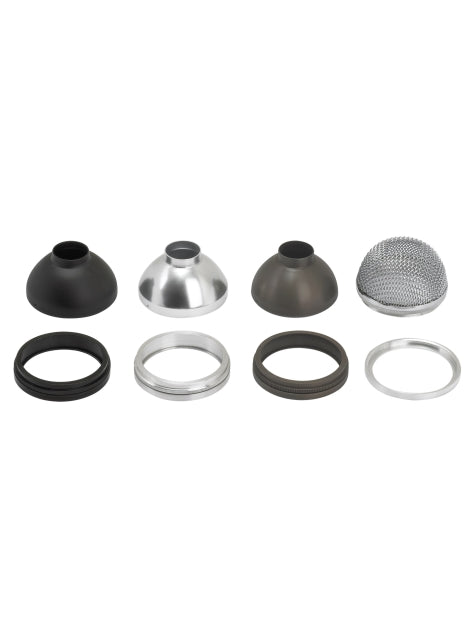

Visual Comfort Backlight Shield | MR16 Mesh or Solid | Black, Bronze or Aluminum

The Backlight Shield is the small detail that completes a low-voltage track or monopoint installation cleanly. Designed to fit over any MR16 or MR11 lamp head in the Visual Comfort Modern (formerly Tech Lighting) low-voltage system, it caps the back of the fixture to prevent light spill from the rear of the lamp housing — the scattered glow that escapes backward and upward when a directional track head is used without a shield. The result is tighter beam control and a cleaner, more intentional light pattern on the surfaces below.

Two configurations are available: Mesh and Solid. The Mesh version allows some airflow and a subtle decorative texture when viewed from above, while the Solid version creates a complete blackout at the rear of the lamp for maximum beam discipline. Both are available in Black, Antique Bronze, and Aluminum — matching the finish families used across the Tech Lighting / Visual Comfort Modern low-voltage catalog, so the shield disappears into the fixture rather than calling attention to itself. Each shield includes a Louver Lens Holder, and the MR16 version accommodates up to two lenses or louvers for layered optical control.

A simple but precise accessory that makes a meaningful difference in any precision lighting installation — art gallery tracks, retail displays, hospitality spotlighting, or residential accent systems where stray light compromises the intended effect. ETL listed. Ships from MetropolitanDecor.com.

Designer/Brand: Visual Comfort & Co. (formerly Tech Lighting)

Specifications

• Lamp Type: MR16 (two lenses/louvers capacity)
• Dimensions: 1.3"H × 2.3"W × 2.3"L
• Configurations: Mesh or Solid
• Finishes: Black, Antique Bronze, Aluminum
• Includes: Louver Lens Holder
• Certification: ETL Listed
• Compatibility: All Visual Comfort Modern / Tech Lighting low-voltage MR16 heads
• SKU(s): MD-VCC-700MR16MBK (Mesh/Black), MD-VCC-700MR16MBZ (Mesh/Bronze), MD-VCC-700MR16MCH (Mesh/Aluminum), MD-VCC-700MR16SBK (Solid/Black), MD-VCC-700MR16SBZ (Solid/Bronze), MD-VCC-700MR16SCH (Solid/Aluminum)

Frequently Asked Questions

Q: What problem does the Backlight Shield solve?
A: Without a shield, MR16 track and monopoint heads allow light to escape from the back and sides of the lamp housing, creating unwanted glow on ceilings and reducing beam precision. The Backlight Shield caps the rear of the lamp to contain the output entirely within the intended beam pattern.

Q: Mesh vs. Solid — which should I choose?
A: Choose Solid for maximum beam discipline — no light escapes the rear. Choose Mesh if you want some ceiling airflow around the lamp or prefer the subtle decorative texture the mesh provides when the fixture is viewed from above. Mesh is also preferred in applications where heat dissipation is a consideration.

Q: Is this compatible with my existing Tech Lighting fixtures?
A: Yes — Visual Comfort Modern is the brand formerly known as Tech Lighting. The Backlight Shield is designed to work with all current and legacy Tech Lighting low-voltage MR16 heads. Verify lamp type (MR16) before ordering.

Please note: Because this item is made to order or specially sourced, it is final sale.
